*1 You can change the length of time the signal is ON. For further information, please refer to
2-1-8 Change the ON/OFF timing of the Output Signal (Output 1 to 3) on page 2 - 17.
Mismatching Character String (Mismatch)
If using the Matchcode function, the assigned output signal for a Mismatch with the Master Symbol
turns ON.
When the Matchcode function is not used, the signal state is OFF.
Note: Matchcode functionality is only used when Triggering mode is External or Serial.
Below is an Output assignment example and Timing chart.
[Example assignment of OUTPUT signals]
• Output 1: In Read Cycle
• Output 2: Character string Mismatch Output Mode: Pulse
For how to set up the Output signal assignments, please refer to How to Assign the Output Signals on
page 2 - 10

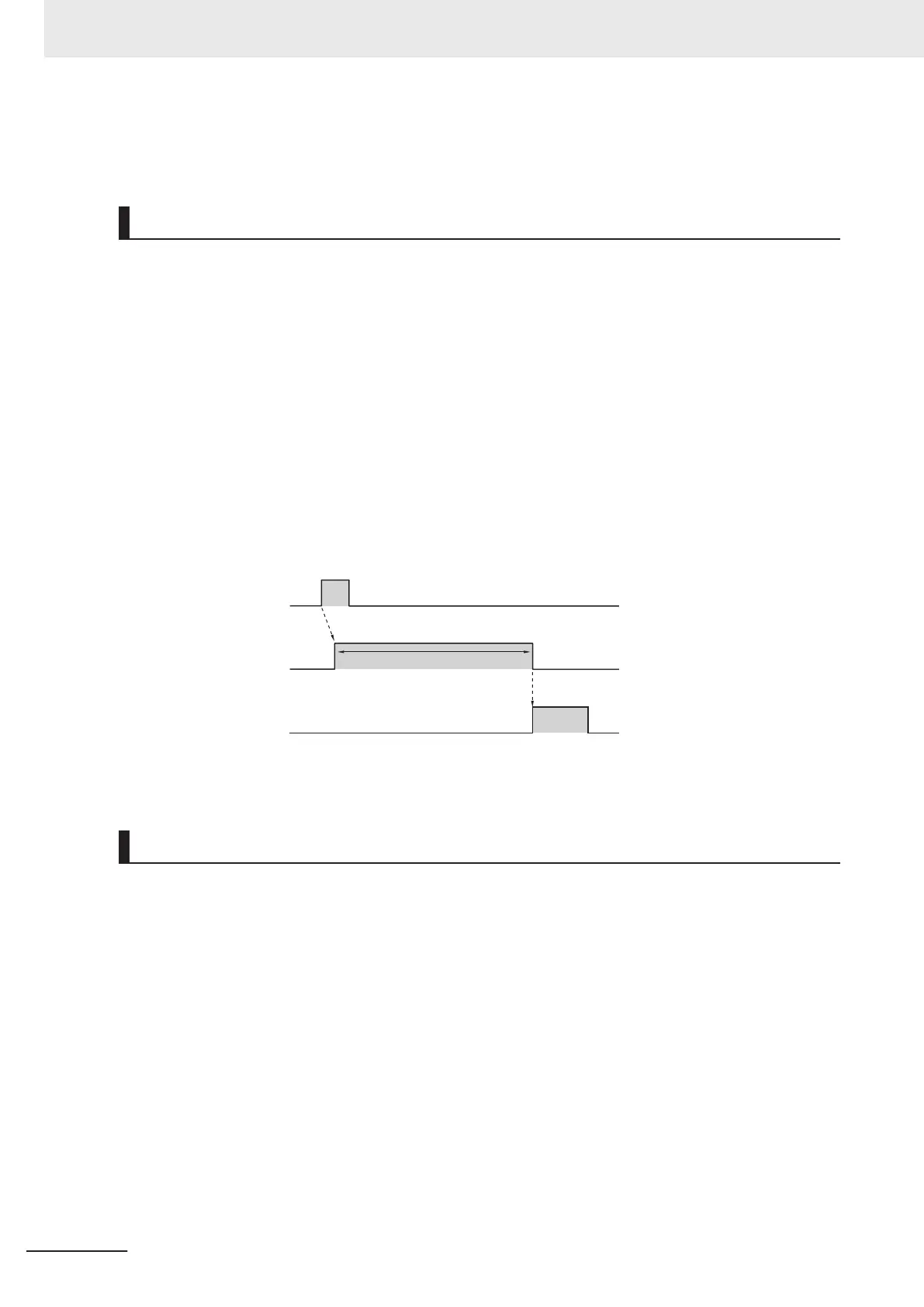

<Timing Chart>
• Trigger Input → No Read (Mismatch with Master Symbol)
1. Trigger input
(TRIG signal)
2. Output1
In Read Cycle
OFF
ON
OFF
ON
OFF
ON
3. Output2
Mismatch
In Read Cycle
Turns ON on Good Read or Character string Mismatch *1
Read executed by Trigger Input.
*1 You can change the length of time the signal is ON. For further information, please refer to
2-1-8 Change the ON/OFF timing of the Output Signal (Output 1 to 3) on page 2 - 17.
No Read
The assigned Output signal turns ON when there is a No Read.
Note: Triggered mode must be External or Serial.
Below is an Output assignment example and Timing chart.
[Example assignment of OUTPUT signals]
• Output 1: In Read Cycle
• Output 2: No Read Output Mode: Pulse
For how to set up the Output signal assignments, please refer to How to Assign the Output Signals on
page 2 - 10
<Timing Chart>
• Trigger Input → On No Read
2 Controlling Operation and Data Output with Parallel
2 - 12
V430-F Series Autofocus Multicode Reader User Manual for Communication Settings
