Omron V680S Series User Manual

Section 6 Operation Interface

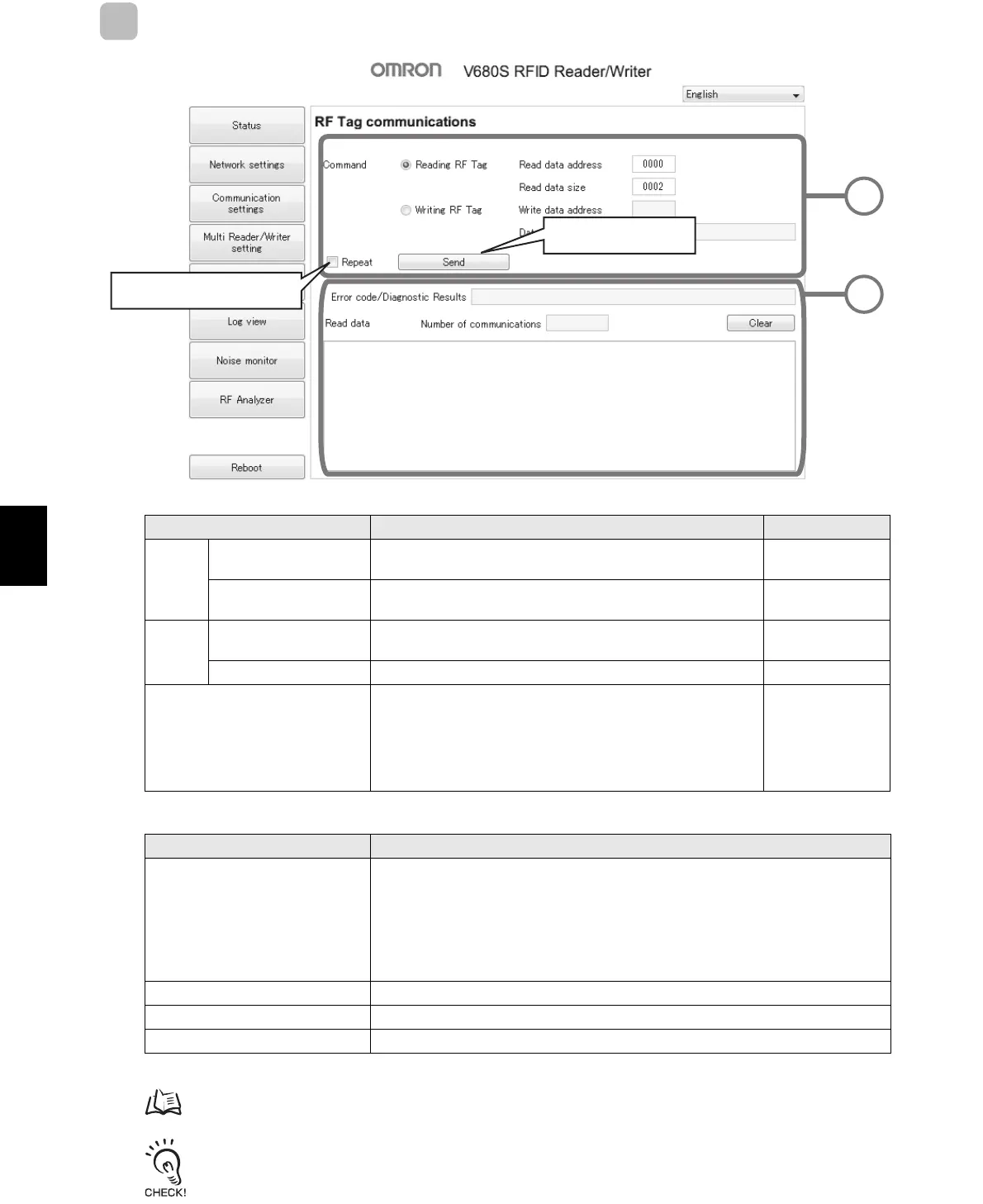

RF Tag Communications View
1. Command Area
2. Response Area
Refer to RFID System Maintenance in Section 2 Names and Functions of Components for details on communications diagnostics.
p.44
If RF Tag communications are attempted when the Reader/Writer is performing RF Tag communications, noise
measurement, or other processing, an error will occur. Perform operations when the Reader/Writer is not busy with
another operation.
Item name Description Setting range
Reading
RF Tag
Read data address Specify in 4-digit hexadecimal the first address to read from the
RF Tag.
0000 to 0999 hex
Read data size Specify in 4-digit hexadecimal the number of words of data to read
from the RF Tag.
0001 to 007D hex
Writing
RF Tag
Write data address Specify in 4-digit hexadecimal the first address to write in the RF
Tag.
0000 to 0999 hex
Data to write Specify the data to write to RF Tag. 1 to 113 words
Repeat Select this check box to repeatedly and consecutively send the
command. Clear the selection of this check box if the RF Tag
communications option of the Reader/Writer is set to Repeat or
FIFO Repeat. If a command is sent repeatedly and consecutively
with the Repeat or FIFO Repeat option, an execution status error
will occur.
Item name Description
Error code/Diagnostics results The background will be green when the response returned by the Reader/Writer
indicates a normal end.
If the response indicates an error end, the background will be red and the error code will
be displayed.
If communications diagnostics are enabled and communications with the RF Tag are
determined to be unstable, the background will be yellow and the diagnostics result is
displayed.
Number of communications The total number of commands that have been sent to the Reader/Writer is displayed.
Read data The data that was read in communications with the RF Tag is displayed.
Clear This button clears the number of sent commands and read data.
1
2
Select this check box to
repeatedly send the command.
Click this button to send
the command.
