91
GB
1505093, Edition 2012-05, Version 5
8 Dismantling / Mounting in Case of Service

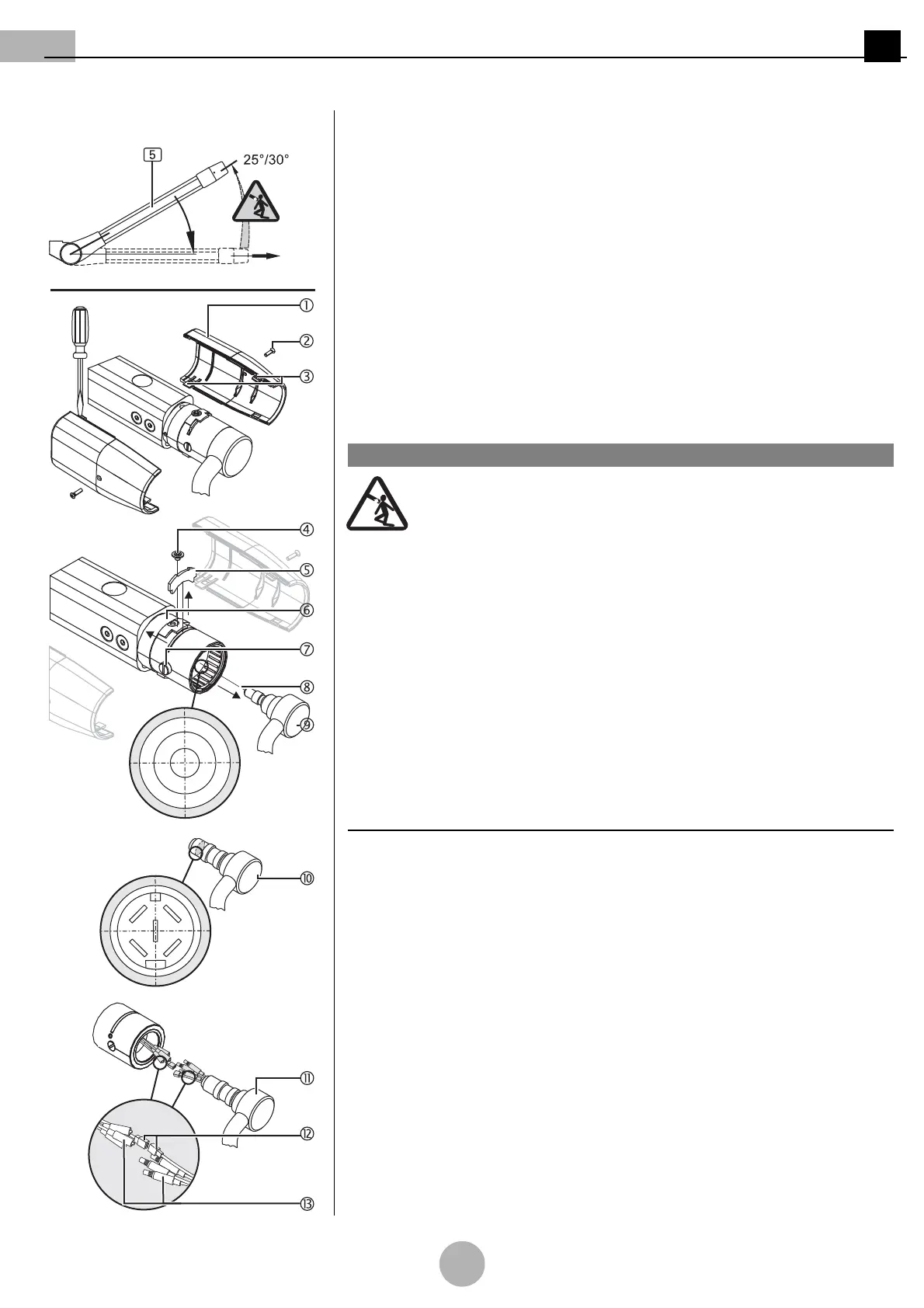

Figure 16: Dismantling the end device
from the LCH spring arm
8.7 Dismantling the end device from the LCH spring arm
(See "Figure 16")
Follow the safety instructions
Follow the general safety instructions prescribed in
“Chapter 8.1” on page 80
.
1. Check whether the end device (e.g. OR lamp) on the LCH spring arm 6 can be
rotated more than 360degrees.
• If this is the case, an internal 3-, 5- or 7/9-pole plug coupling 9-B has been mounted
and the end device (e.g. OR lamp) may be dismantled by you as a technician
authorised by the operator.
Dismantling the cover panels
1. Unscrew 2 countersunk Phillips screws M3 x 6 mm 2.
2. Gently disengage each cover panel 1 on the two staggered straps 3 using a
suitable slotted screwdriver.
3. Remove the 2
cover panels 1.
Sudden release of spring arm
The LCH spring arm 6 contains a powerful spring. When the end device
(e.g. OR lamp) is dismantled, the spring arm can suddenly jump up and
may cause serious injury:
• Before removing the end device (e.g. OR lamp), make sure that the
vertical lift of the LCH spring arm 6 as described in
“Chapter 9.4.3” on
page 101
is restricted to the lowermost end stop (horizontal position).
4. Restrict the LCH spring arm 6 to the horizontal position as described in
“Chapter
9.4.3” on page 101
.
➥ It must no longer be possible to move the LCH spring arm 6 upwards beyond the
horizontal position.
5. Slightly unscrew the 2 brake screws 7.
6. Unscrew the Allen countersunk screw M4 x 4 mm 4 and push the securing ring for
the securing segment 6 backwards towards the spring arm.
7. To relieve the securing segment 5 slightly lift the end device and remove it using a
suitable slotted screwdriver.
NOTE – Different plug couplings
Depending on the version of the end device (e.g. flat screen, OR lamp, etc.), the LCH
spring arm 6 is equipped with a 3-, 5- or 7/9-pole plug coupling.
For the 3-pole 9 and 5-pole plug coupling A only:
• Disengage the assembly connection 8 and gently remove the adaptation with the
end device (e.g. OR lamp) from the LCH spring arm 6, keeping it straightly axially
aligned.
For the 7/9-pole plug coupling B only:
• Gently withdraw the adaptation with the end device (e.g. OR lamp) from the LCH
spring arm 6.
• Screw the 3 plug adapters D apart, disengage the 6-pole plug C and remove the end
device (e.g. OR lamp).
8. Insert the securing segment 5, push the securing ring for the securing segment 6
forwards and screw in the Allen countersunk screw M4 x 4 mm 4.
1WARNING
