• 2 power cords for two PDUs, 60 amperes at 190 - 220 VAC three-phase
• 2 receptacles to connect the PDUs to 2 IEC 60309 60A 4-pin 250VAC 3ph IP67
data center receptacles

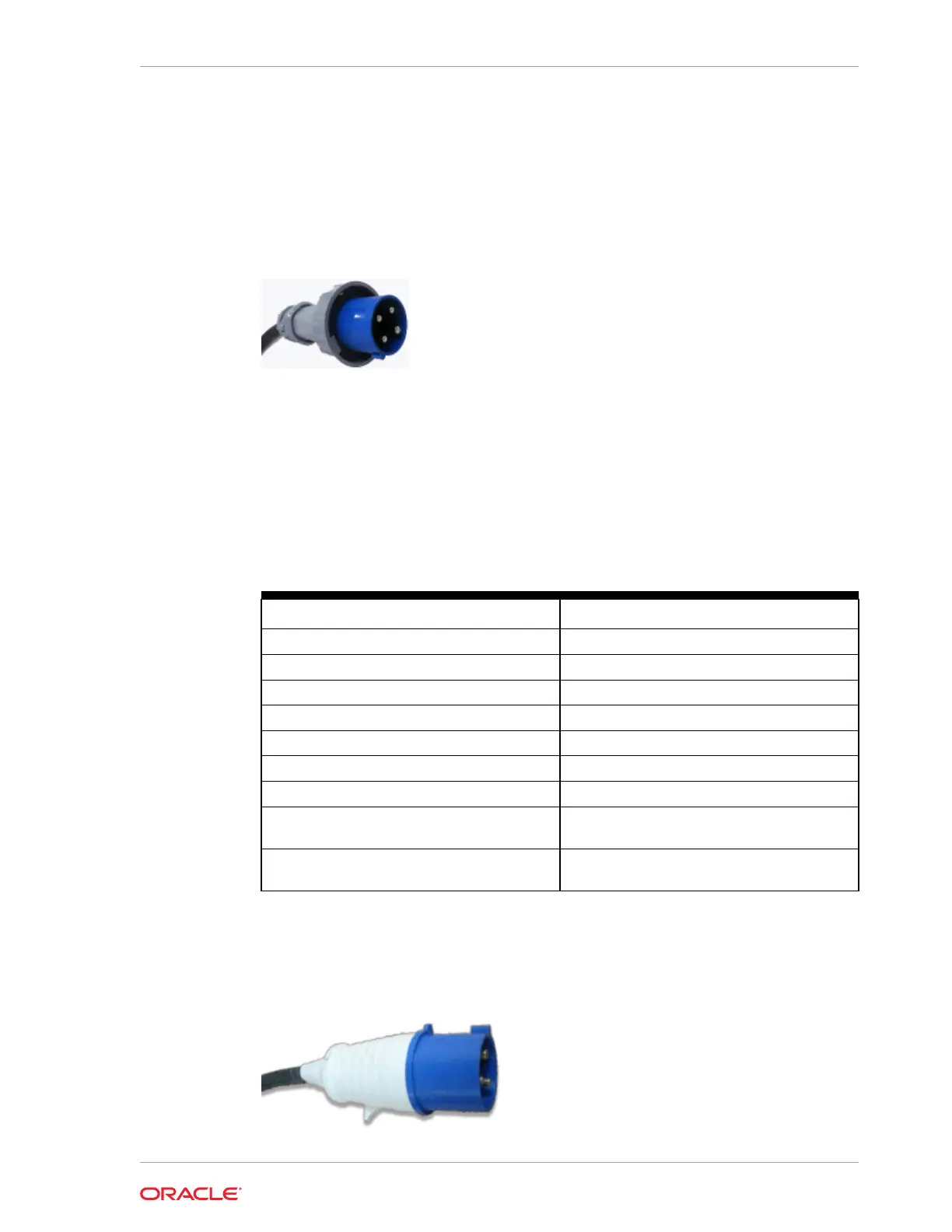

Figure 1-2 (page 1-37) shows the low-voltage, three phase PDU power connector for
North America, South America, Japan and Taiwan.
Figure 1-2 Low-voltage Three Phase Power Connector
Table 1-26 (page 1-37) lists the requirements for 15 kVA high-voltage three-phase
PDUs for Europe, the Middle East, Africa, and Asia Pacific, except Japan and Taiwan.
There are two PDUs per rack.
The following specifications are per PDU.
Table 1-26 High-voltage 15 kVA Single Phase PDUs for Europe, the Middle East
and Africa (EMEA), and Asia Pacific (APAC), except for Japan and Taiwan (2
PDUs per Rack)
Option Requirement, per PDU
Voltage 220 - 240 VAC
Frequency 50/60 Hz
Current 24 A maximum per input
Power rating 15 kVA
Output current 72 A (3 x 24 A)
Outlets 42 x C13; 6 x C19
Outlet groups 6
Group protection (UL489 2-pole circuit
breaker)
20A
Data center receptacle 15kVA, IEC309-2P3W-IP44 32A 250VAC
(Hubbell equivalent is HBL332R6W
Figure 1-3 (page 1-37) shows the high-voltage single phase PDU power connector
for EMEA, and APAC, except for Japan and Taiwan.
Figure 1-3 High-voltage Single Phase Power Connector
Chapter 1
Electrical Power Requirements
1-37
