Table 1-24 (Cont.) Low-voltage 15 kVA Single Phase PDUs for North America,
South America, Japan and Taiwan (2 PDUs per Rack)
Option Requirement, per PDU
Data center receptacle 15kVA, with three 30A/250V 2-pole/3-wire
NEMA L6-30P plugs
The following are needed to connect an Oracle Exadata system to a low-voltage one-
phase power source:
• 6 power cords for two PDUs, 30 amperes at 200 - 240 VAC
• 6 receptacles to connect the PDUs to 6 NEMA L6-30 data center receptacles

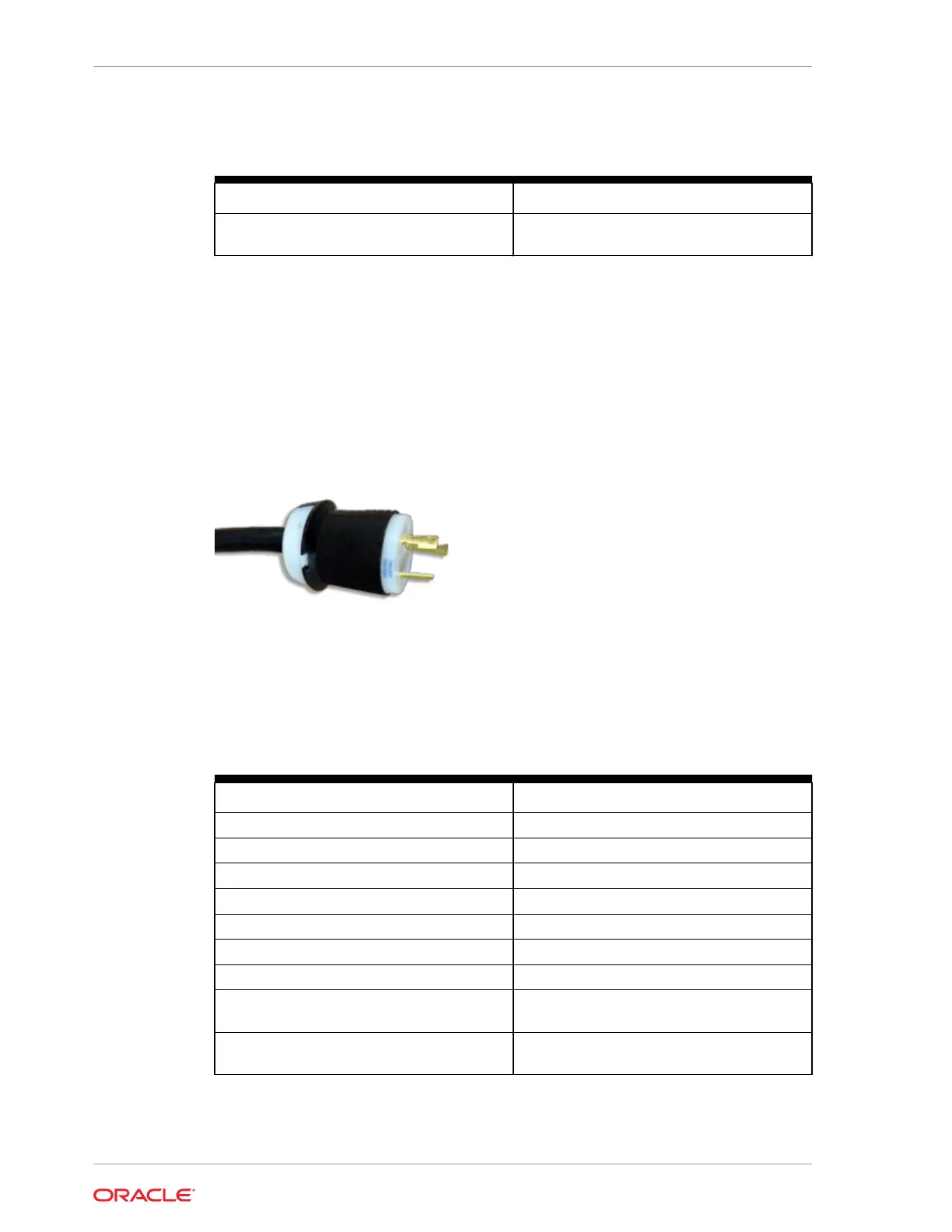

Figure 1-1 (page 1-36) shows the low-voltage, single phase PDU power connector for
North America, South America, Japan and Taiwan.
Figure 1-1 Low-voltage Single Phase Power Connector
Table 1-25 (page 1-36) lists the requirements for low-voltage three-phase PDUs for
North America, South America, Japan, and Taiwan. There are two PDUs per rack. The
following specifications are per PDU.
Table 1-25 Low-voltage 15 kVA Three Phase PDUs for North America, South
America, Japan and Taiwan (2 PDUs per Rack)
Option Requirement, per PDU
Voltage 190 - 220 VAC
Frequency 50/60 Hz
Current 40 A maximum per phase
Power rating 14.4 kVA
Output current 69.3 A (3 x 23.1A)
Outlets 42 x C13; 6 x C19
Outlet groups 6
Group protection (UL489 2-pole circuit
breaker)
20A
Data center receptacle IEC309-3P4W-IP67 60A 250VAC 3ph
(Hubbell equivalent is HBL460R9W)
The following are needed to connect an Oracle Exadata system to a low-voltage three-
phase power source:
Chapter 1
Electrical Power Requirements
1-36
