Installing a 7x20 onto the Rack Slide Rails

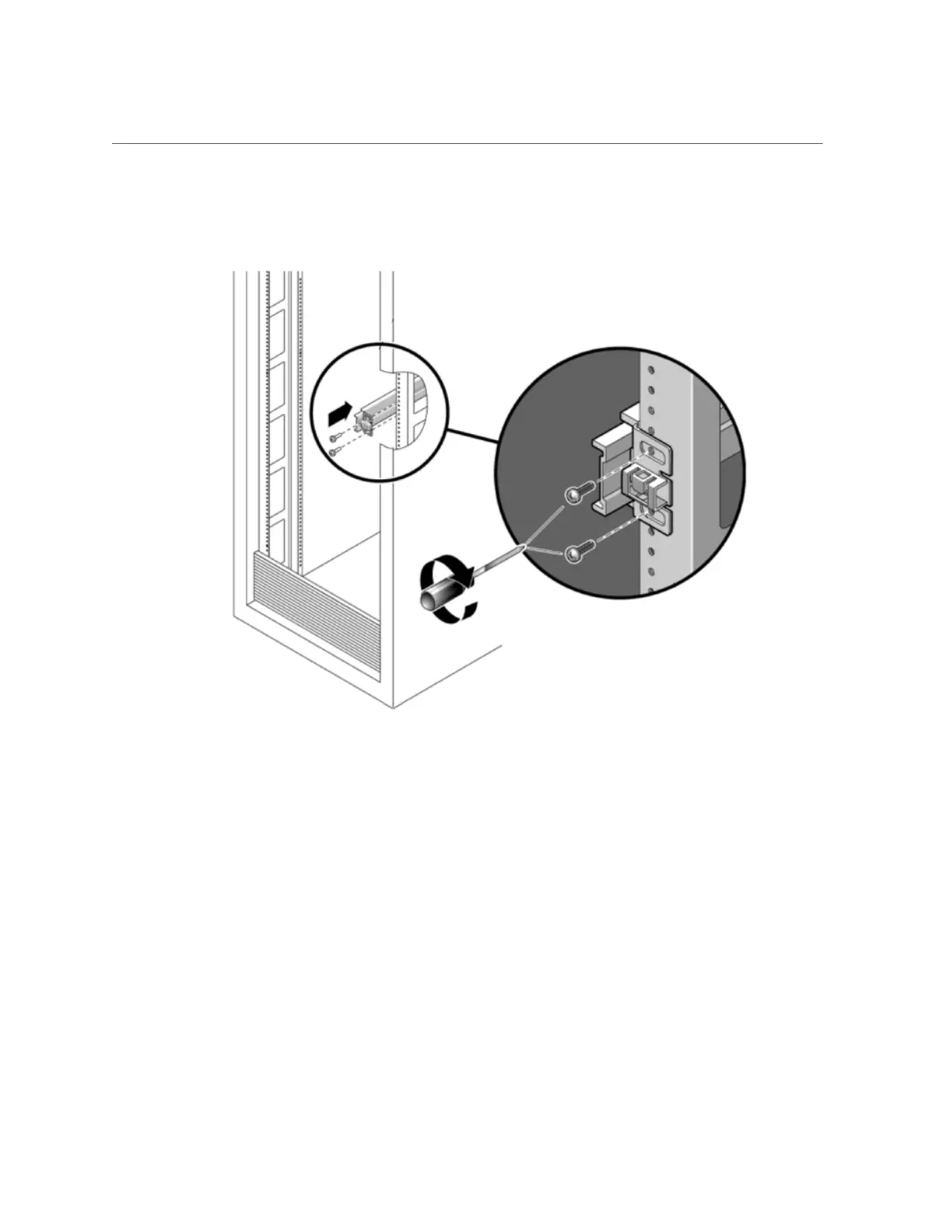

The following graphic illustrates the rail assembly brackets.
3.
Attach each slide rail assembly to the rack posts, but do not tighten the screws
completely.
Installing a 7x20 Controller 161
