OPTIMOD-FM INSTALLATION
2-3
voltage requirements. To change the operating voltage, set the Voltage Se-
lect
to 115V (for 90-130V) or 230V (for 200-250V) as appropriate.
C)
Install the proper fuse and fuse holder, per your country’s standards.
The 8400 is shipped from the factory with the fuse, and fuse holder re-
moved. Select the appropriate fuse holder and fuse from the supplied parts in
the accessory kit. Use the gray fuse holder for domestic/115V operation, or
the black fuse holder for European/230V operation. For safety, use ½-A-
250V Slow-Blow for 115V, or ¼-A-250V for 230V.
CONDUCTOR
WIRE COLOR
L
N
E
LINE
NEUTRAL
EARTH GND
BROWN
BLUE
GREEN-YELLOW
BLACK
WHITE
GREEN
NORMAL ALT
PLUG FOR
115 VAC
(USA)
CONDUCTOR WIRE COLOR
L
N
E
LINE
NEUTRAL
EARTH GND
BROWN
BLUE
GREEN-YELLOW
PLUG FOR
230 VAC
(EUROPEAN)
TYPE H05VV - F - 0.75
TYPE 18/3 SVT COR, TYP
(3 x .82 mm
2
)

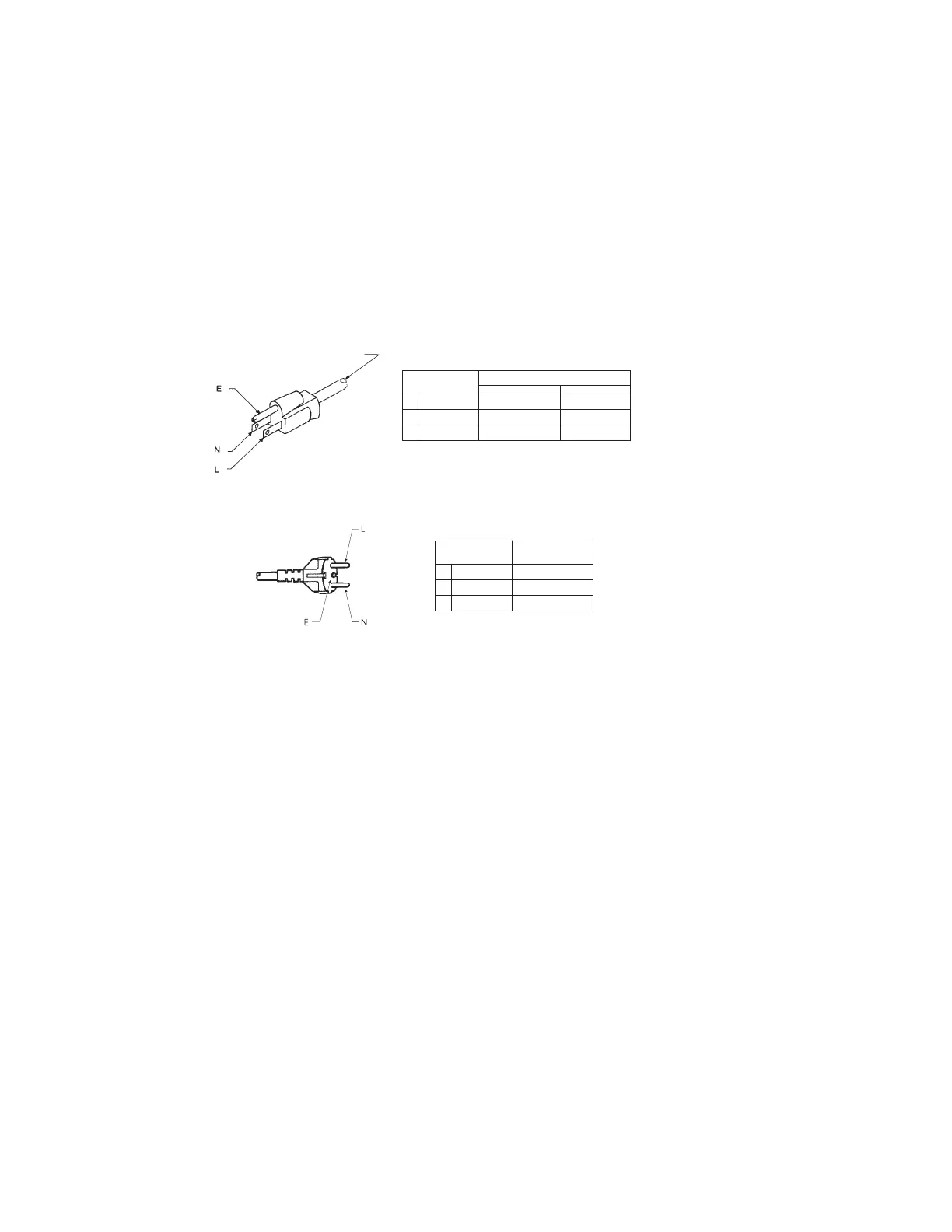

Fig. 2-1: AC Line Cord Wire Standard)
D)
Check power cord.
AC power passes through an IEC-standard mains connector and an RF filter
designed to meet the standards of all international safety authorities.
The power cord is terminated in a “U-ground” plug (USA standard), or
CEE7/7 plug (Continental Europe), as appropriate to your 8400’s Model
Number. The green/yellow wire is connected directly to the 8400 chassis.
If you need to change the plug to meet your country’s standard and you are
qualified to do so, see Fig. 2-1. Otherwise, purchase a new mains cord with
the correct line plug attached.
3. Set Ground Lift switch.
The
Ground Lift switch is located on the rear panel.
The
Ground Lift switch is shipped from the factory in the GROUND position,
(to connect the 8400’s circuit ground to its chassis ground). If you are using
the 8400’s composite output to drive an exciter with an unbalanced output, set
the switch to
LIFT.
