PUMA T2
Technical Handbook
NiCd, NiMH and Li-ion batteries
Page 118 OTE Proprietary information
P/N: 779-0306/01
Revision 03
D.2 LI-ION BATTERY
In this appendix the Li-ion (2700 mAh) battery is described.
D.2.1 Mechanical description
The battery pack is equipped with hermetic case (IP 54 protection), it has a weight
of 200gr, the external package has a UL40 grade; the case is built up with a
GaPlast Cyxolloy C2950 plastic.

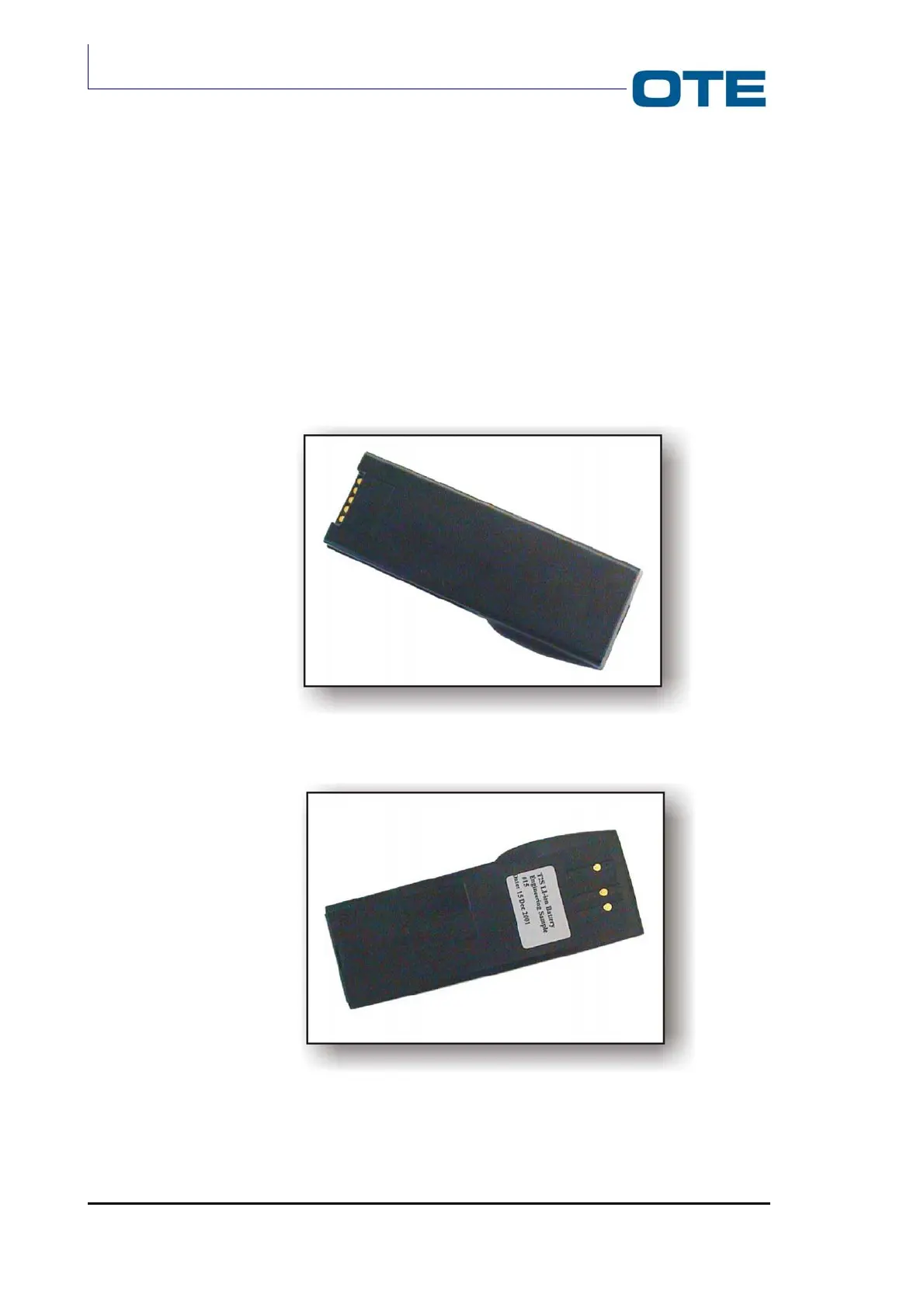

Fig. D.1: Li-ion battery package (rear side)
Fig. D.2: Li-ion battery package (radio side)
