D.4.1 Mechanical description
The battery pack must be rainproof (IP 54).
The battery pack must be in agreement with EIA STD.RS-316B-point 5.6 Norms.
On the back side (to the transceiver) the pack must have a small hole, protected
from water with osmotic material, to allow the outlet of gas produced during battery
charging.
Referring to the indicated drawings:
• in the area indicated in “NOTE-A” the symbols ‘+’ and ‘-’ must be indicated;
• in the area indicated in “NOTE-B” the following sentences must be engraved:
DO NOT SHORT-CIRCUIT
DO NOT INCENERATE

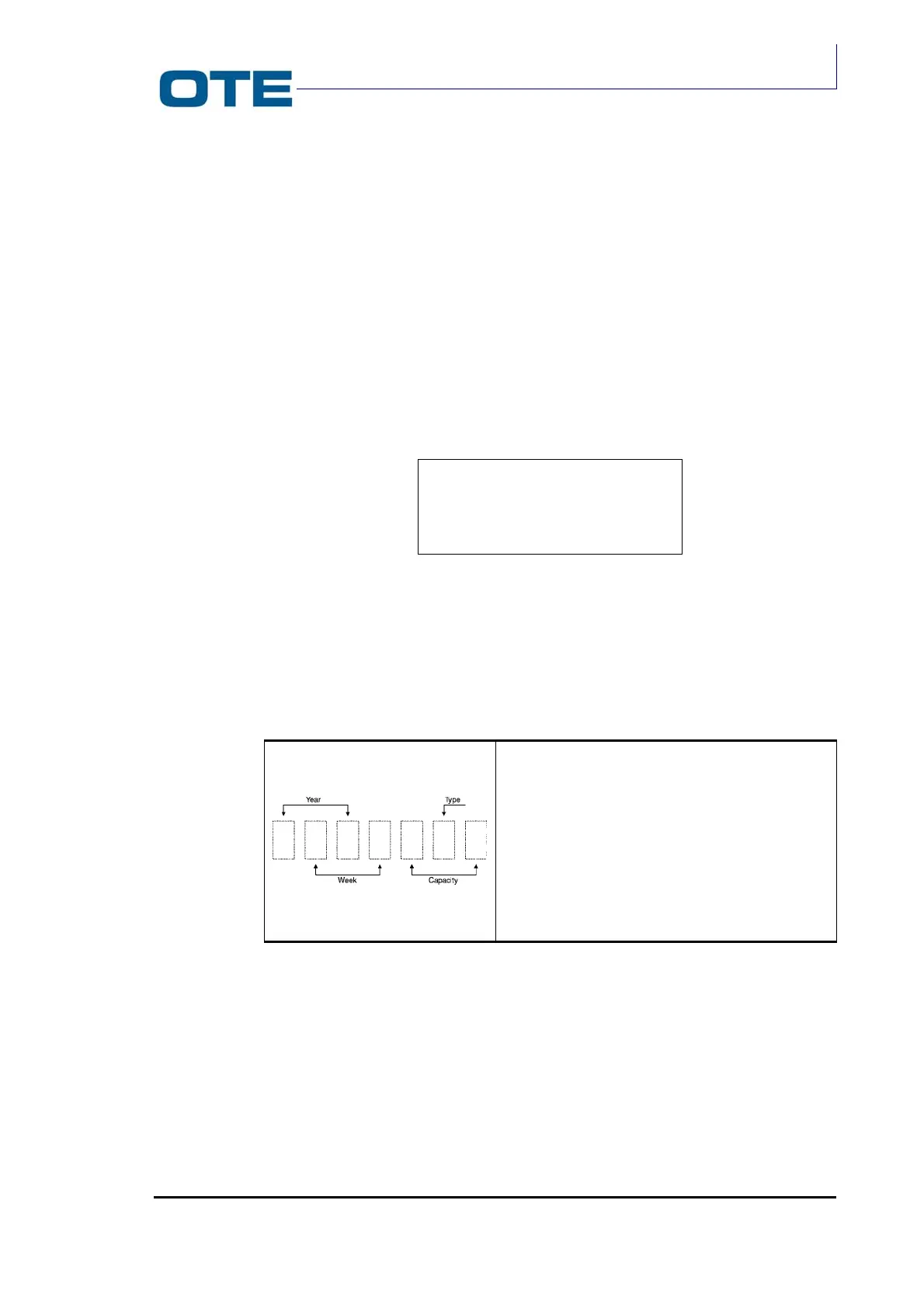

Fig. D.8: Instructions on the pack
• in the area indicated in “NOTE-C” the following 7-digit code must be marked:
Year contains the last two numbers of the year;
Week indicates the week numberof the year;
Capacity contains the first two numbers of the
nominal capacity of the pack, formatted as a 4-digit
number;
Type is either ‘C’ (Cadmium) or ‘M’ (Metal Hydride)
depending on the cells technology.
Capacity and Type may be omitted for 1200mAh
NiCd battery packs
Fig. D.9: Battery Identification Code
