PUMA T2
Technical Handbook
NiCd, NiMH and Li-ion batteries
Page 126 OTE Proprietary information
P/N: 779-0306/01
Revision 03
Some examples of correct codes are given below:
92811C2 which means week 21 of 1998, NiCd 1200 mAh (preferred)
92811H8 which means week 21 of 1998, NiMH 1800 mAh
All the letters and symbols must be in bass-relief of 0.3 mm with glossy finishing.
The pack will be supplied with a plastic or paper small band where the following
indications must be present:
ATTENTION
New or unused for long time battery packs
must
Remain in the battery charger at least 16 hours
Before using.

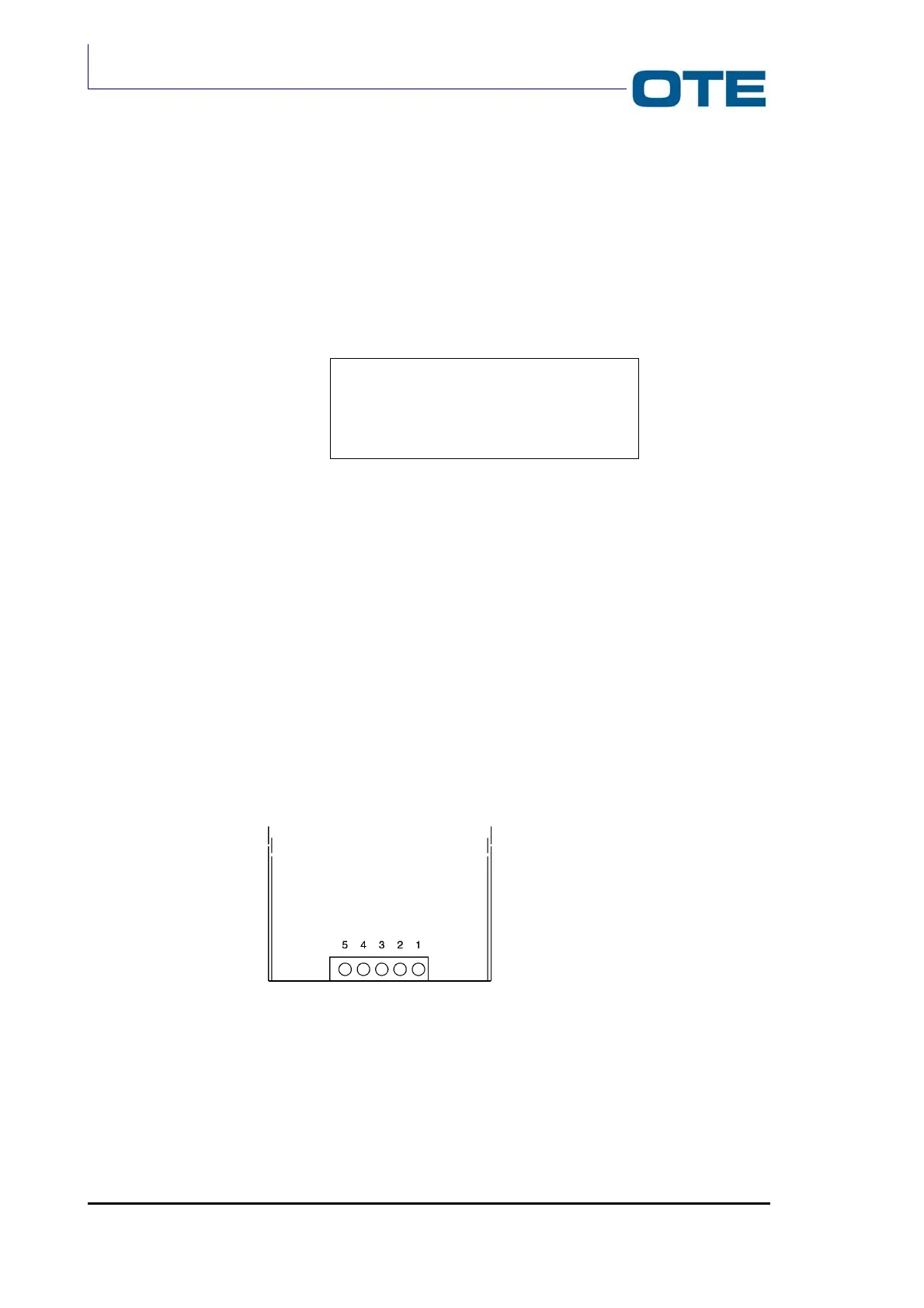

Fig. D.10: Instructions on the paper band
D.4.2 Electrical Description
The packs must be manufactured with Nichel-Metal Hydride cells only. The pack
must provide a 7.2 V nominal voltage.
D.4.3 Electrical Interfaces
Each pack on his Upper Side (to the battery charger) has 5 contacts:
1. Negative
2. Battery Identification
3. NTC
4. Positive
5. Auxiliary
Fig. D.11: Upper Side Battery Contacts
