2.4 BASE BAND SECTION
This chapter defines the architecture (hardware and firmware), the specifications of
the individual functional blocks and the interfaces of the base band board (Fig.
2.1).

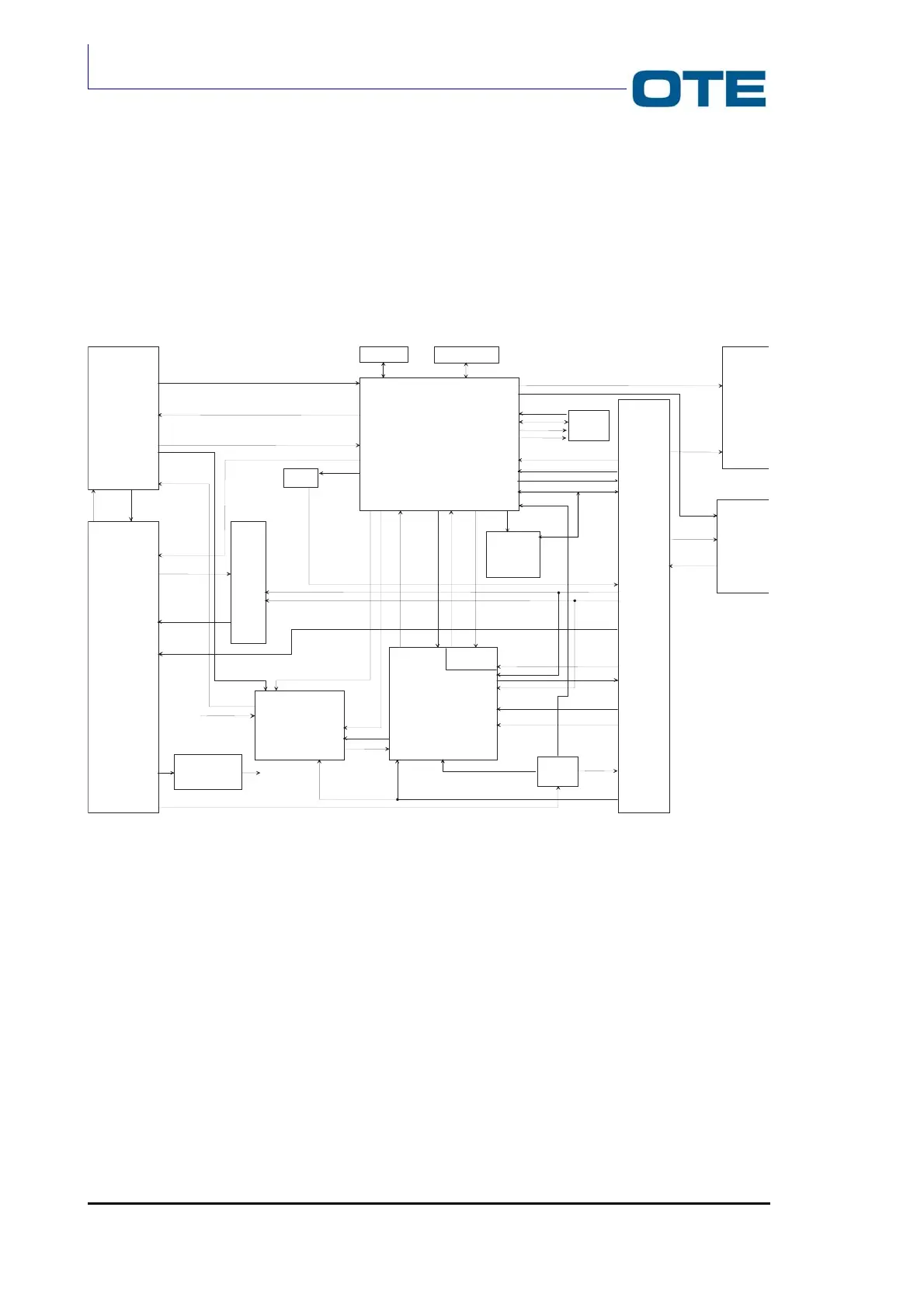

Fig. 2.1: Functional block diagram of the base band board
The board is composed of the following main components:
• Power supply
• Flex connector
• RT connector
• Audio interface
• RT interface
• Keyboard
• Display
• Microcontroller (µC)
• Digital Signal Processor (DSP)
• Timebase
