Connections
PTT microphone and lapel microphone connector (placed on the top of the case).
A general purpose external connector is located on the right side of the unit. This
connector, which carries out audio lines, serial lines and an auxiliary antenna line,
is used for the vehicular adapter and for the connection to a computer
(downloading software and configuration data).
Loudspeaker
The loudspeaker has a 40mm diameter and a 500mW output power.

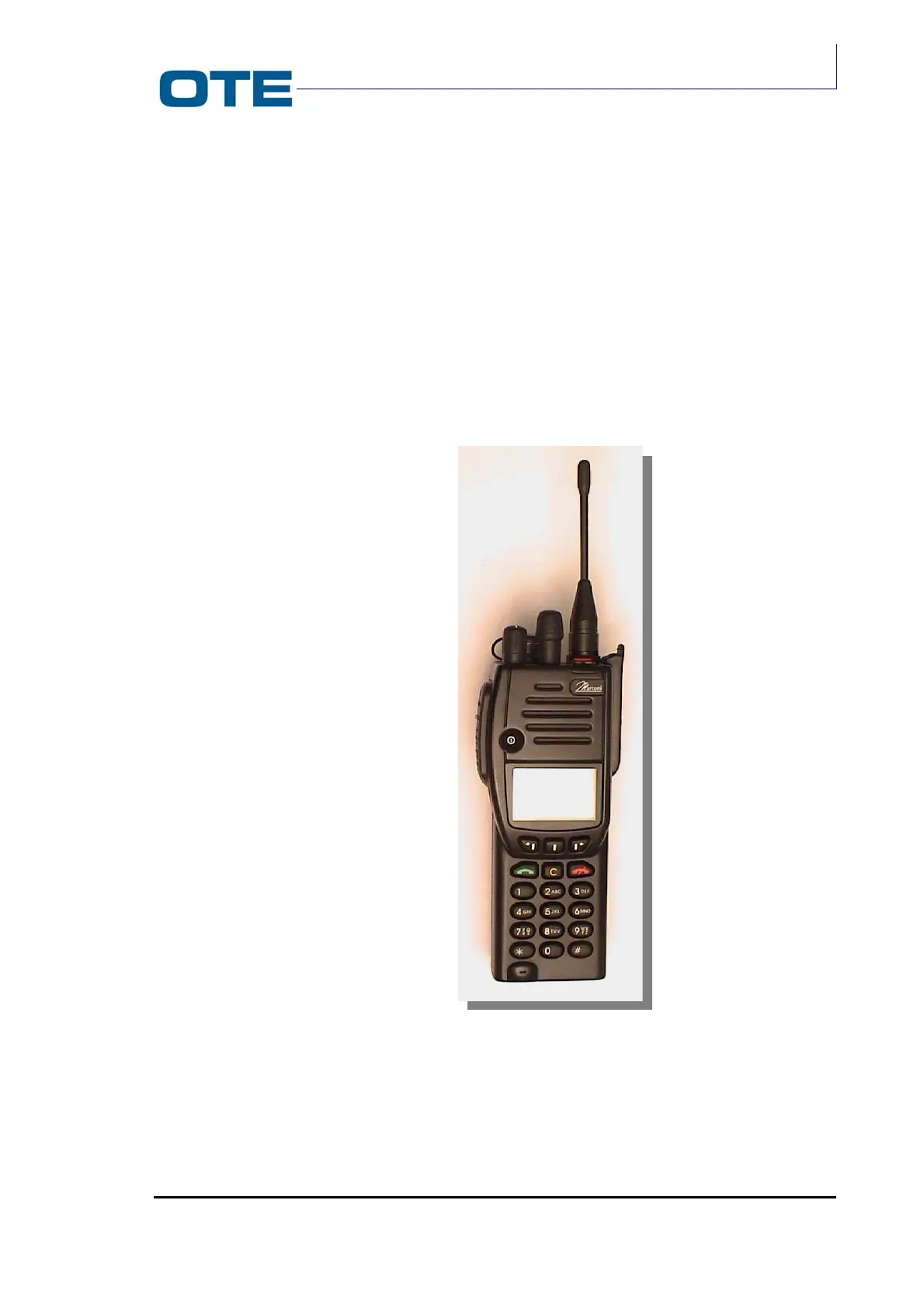

The PUMA T2 layout is shown in Fig. 1.2 (the antenna of Fig. 1.2 belongs to the
PUMA T2-870 version).
Fig. 1.2: PUMA T2 hand-portable radio
The antenna is connected to the equipment via a TNC coaxial connector. The
battery is connected through a slide located on the unit rear.
