PUMA T2

Technical Handbook

NiCd, NiMH and Li-ion batteries

P/N: 779-0306/01

Revision 03

OTE Proprietary information

Page 121

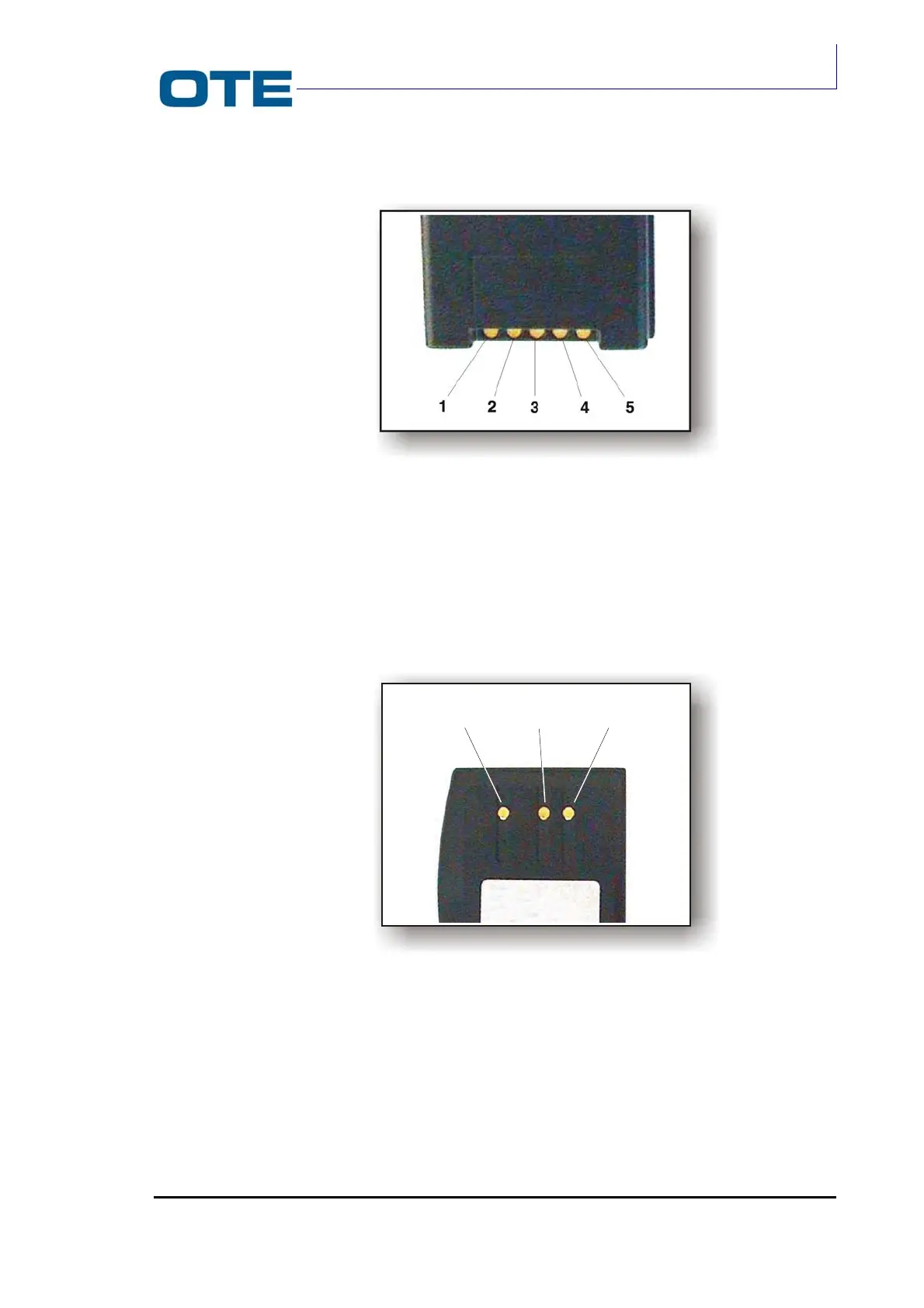

Fig. D.4: Bottom side contacts

Fig. D.5: Upper side contacts

Negative

pole

Positive

pole

Auxiliay

feeding
