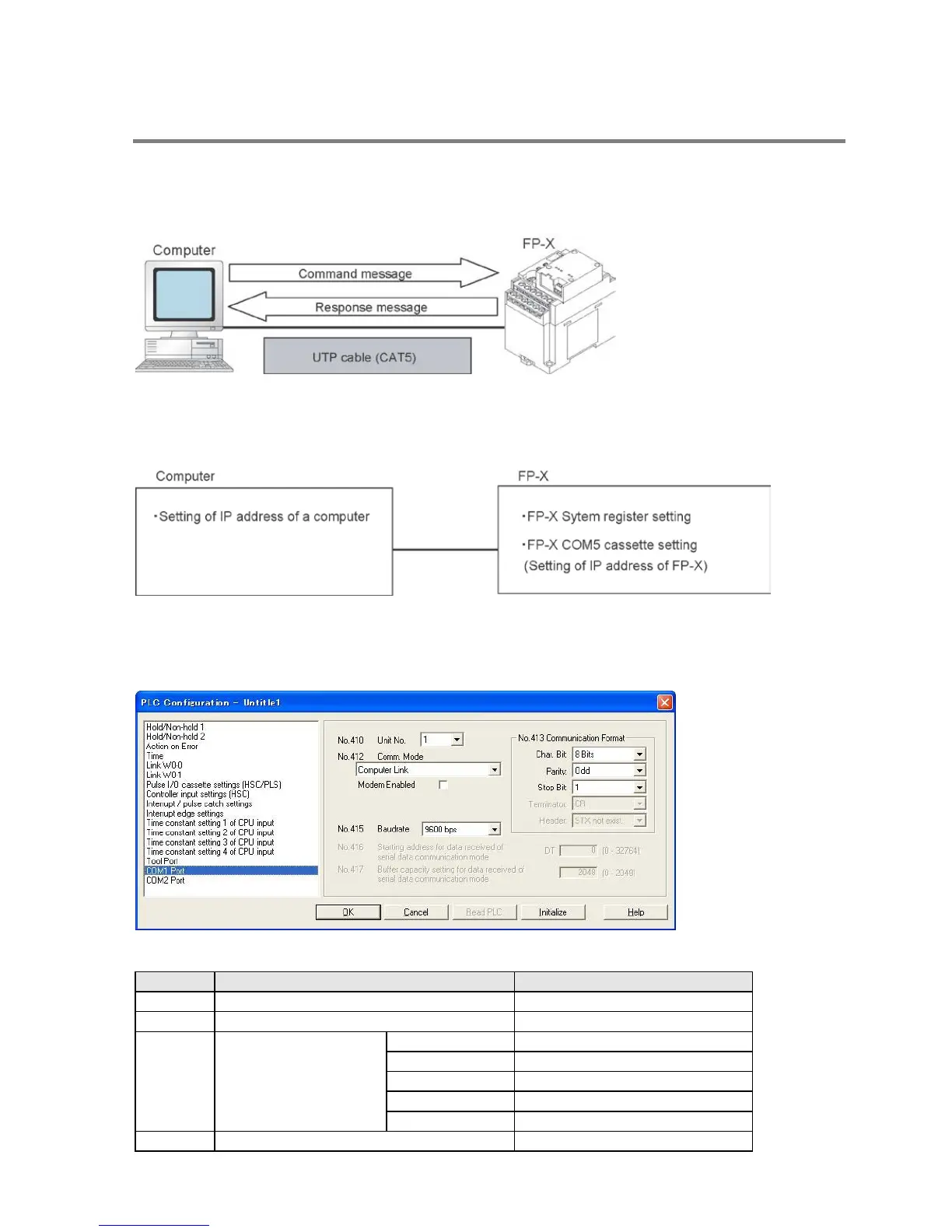

7.7.6 Communication (Computer Link (Ethernet))
Overview
A 1:1 computer link connects the FP-X and a computer using a UTP cable (CAT5). Communication is
conducted via commands from the computer and responses from the PLC.
1:1 Communication setting (Computer link (Ethernet))
This setting enables the 1:1 communication between the FP-X and a computer using the computer link
(Ethernet).
System register setting of FP-X (specified using FPWIN GR)
Dialog box of PLC system register setting
COM1 port setting (AFPX-COM5)
No.
Setting item
Setting value
No.410
Unit number
1
No.412
Communication mode
Computer link
No.413 Communication format
Char. bit
8 bits
Parity check
Odd
Stop bit
1 bit
Terminator
CR
Header
STX not exist
No.415 Baud rate 115200 bps/9600 bps
