8.3.6 FP-X Input Cassette
Product No.: AFPX-IN8
Item
Description
Insulation method
Optical coupler
Rated input voltage
24 V DC
Operating voltage range
21.6 to 26.4 V DC
Rated input current
Approx. 3.5 mA
Input points per common
8 points/common
(Either the positive or negative of input power supply can be
connected to common terminal.)
Min. on voltage/Min. on current 19.2 V DC/3 mA
Max. off voltage/Max. off current
2.4 V DC/1 mA
Input impedance Approx. 6.8 kΩ
Response time
off
→
on
1.0 ms or less
on→off 1.0 ms or less
Operating mode indicator
LED display
EN61131-2 Applicable type TYPE3 (however, according to the above specifications)

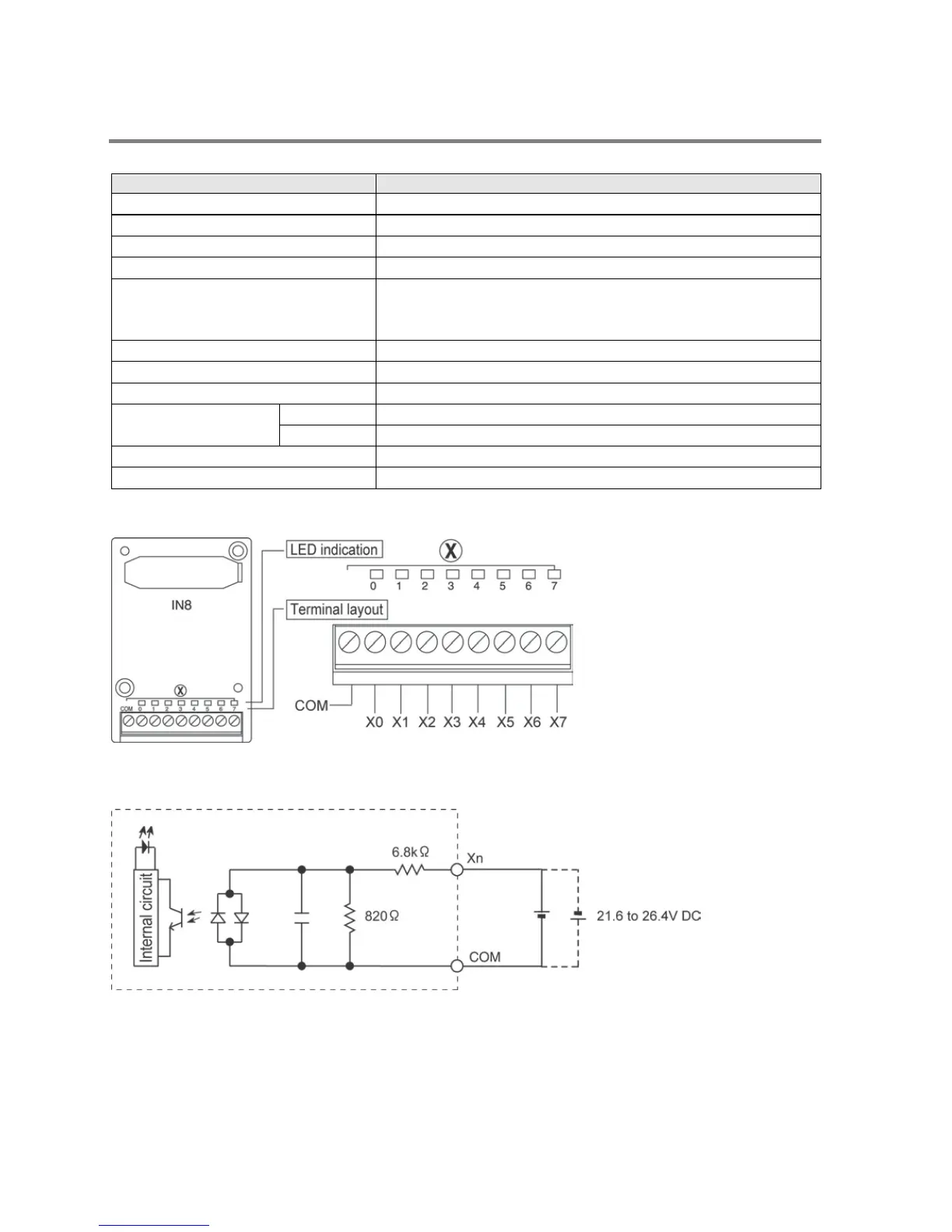

LED indication/Terminal layout
Circuit diagram
