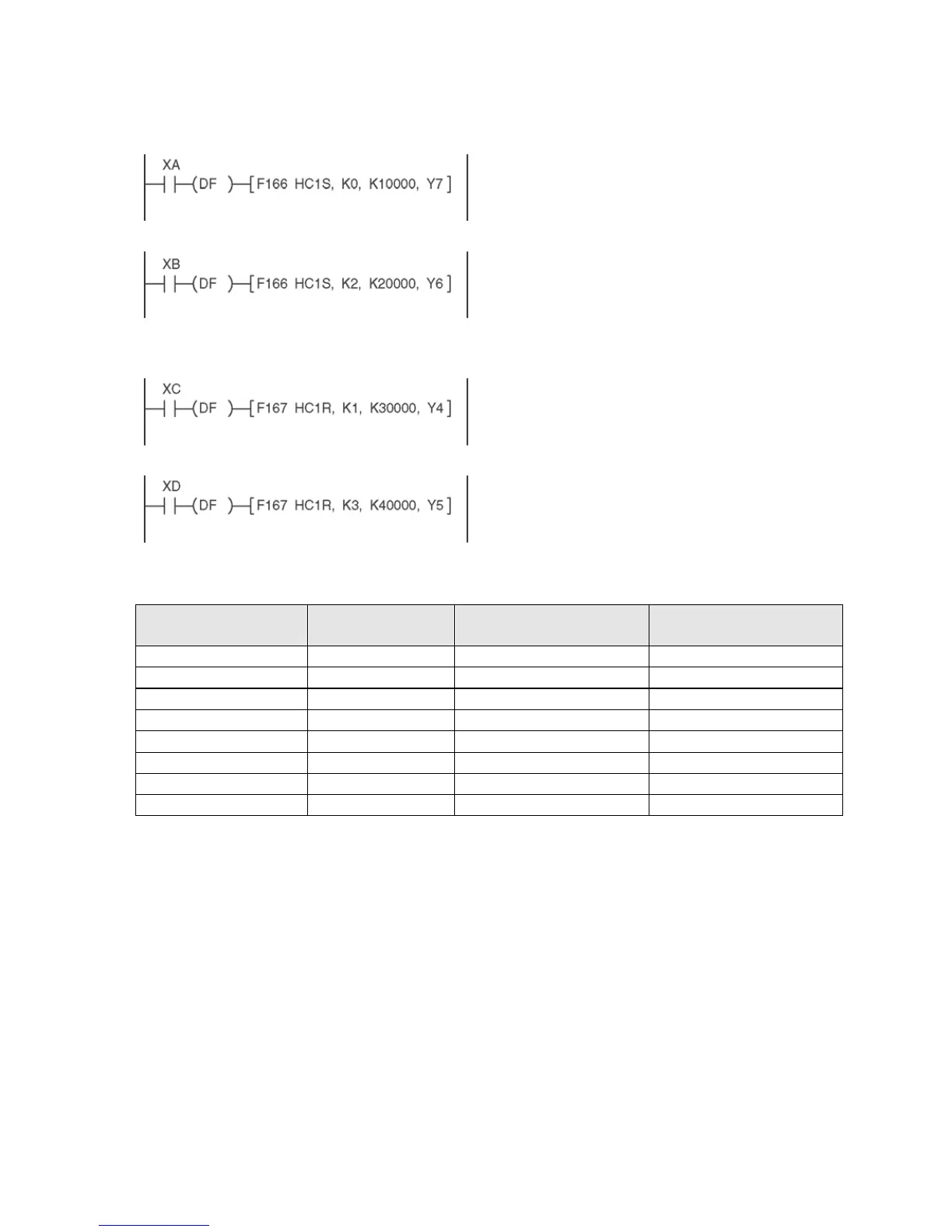

Target value match ON instruction (F166)
Example 1:
If the elapsed value (DT90300 and DT90301)
for channel 0 matches K10000, output Y7 turns
on.
Example 2:
If the elapsed value (DT90308 and DT90309)
for channel 2 matches K20000, output Y6 turns
on.
Target value match
OFF instruction (F167)
Example 1:
If the elapsed value (DT90304 and DT90305)
for channel 1 matches K30000, output Y4 turns
off.
Example 2:
If the elapsed value (DT90312 and DT90313)
for channel 3 matches K40000, output Y5 turns
off.
FP-X Tr type – Elapsed value and target value areas of high-speed counter ch0 to ch7
High-speed counter
Channel No.
Control flag Elapsed value area Target value area
ch0
R9110
DT90300 to DT90301
DT90302 to DT90303
ch1 R9111 DT90304 to DT90305 DT90304 to DT90307
ch2
R9112
DT90308 to DT90309
DT90310 to DT90311
ch3 R9113 DT90312 to DT90313 DT90314 to DT90315
ch4
R9114
DT90316 to DT90317
DT90318 to DT90319
ch5 R9115 DT90320 to DT90321 DT90322 to DT90323
ch6
R9116
DT90324 to DT90325
DT90326 to DT90327
ch7 R9117 DT90328 to DT90329 DT90330 to DT90331
