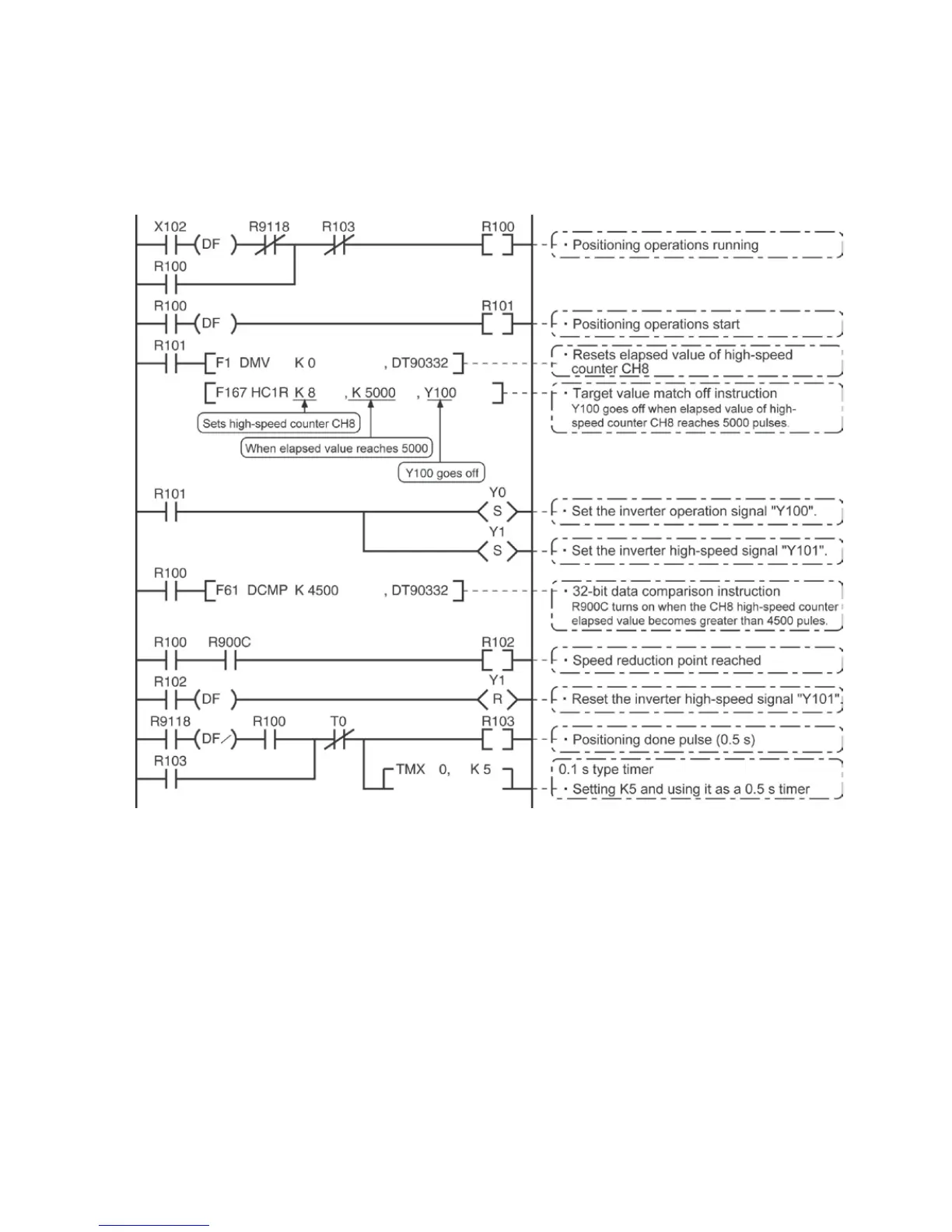

Program
When X102 is turned on, Y100 and Y101 turn on and the conveyor begins moving. When the elapsed
value (DT90332 and DT90333) reaches K4500, Y101 turns off and the conveyor begins decelerating.
When the elapsed value reaches K5000, Y100 turns off and the conveyor stops.
