Positioning operations with a double speed inverter

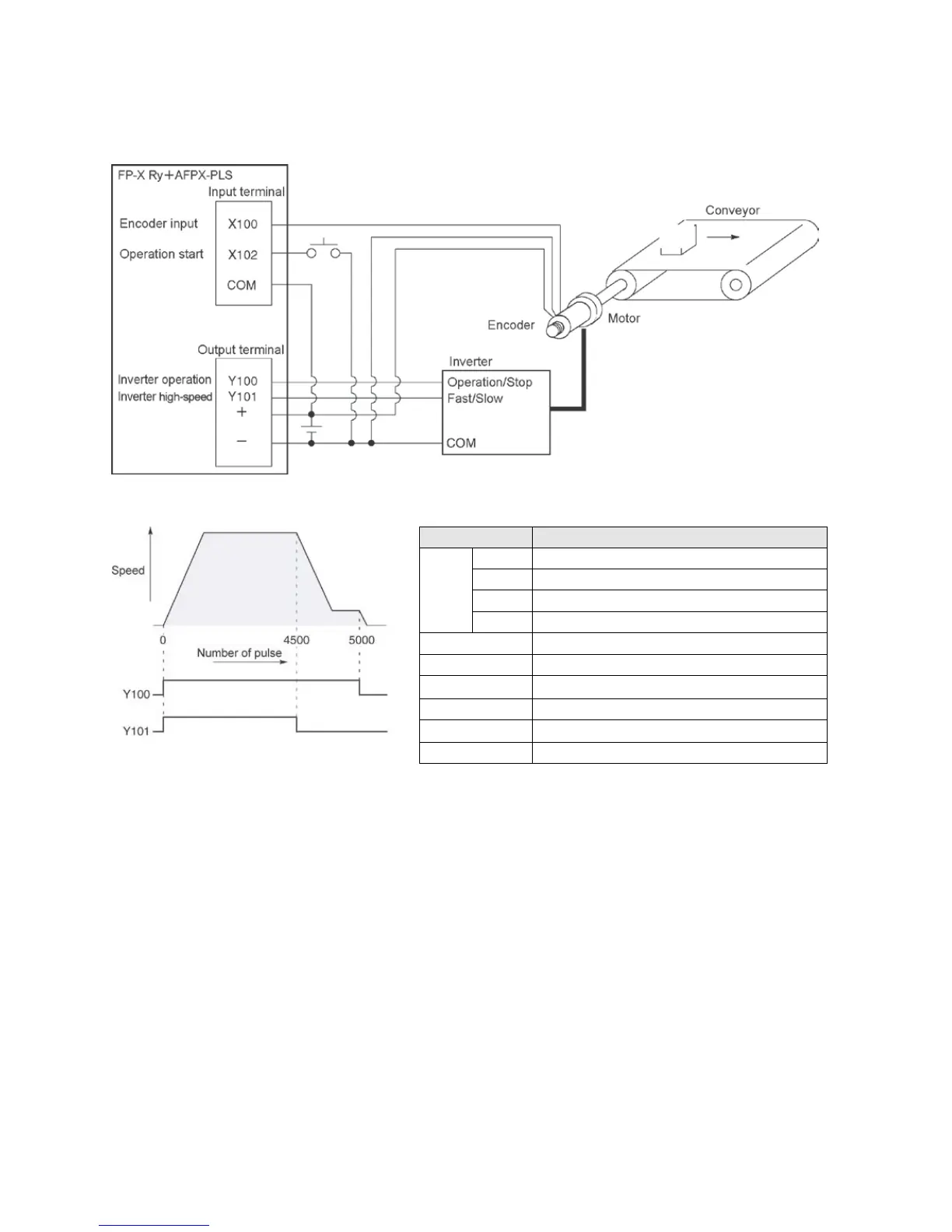

Wiring example
Operation chart
I/O allocation
I/O No.
Description
Main
unit
I/O
X100
Encoder input
X102
Operation start signal
Y100
Inverter operation signal
Y101
Inverter high-speed signal
R100
Positioning operation running
R101
Positioning operation start
R102 Arrival at deceleration point
R103
Positioning done pulse
R900C Comparison instruction <flag>
R9118
High-speed counter CH8 control flag
