PACD011001C2 Test Operation
Test Operation Urban Multi “MX1, ME1 Series” Using R-22 127
Wiring for
Transmission

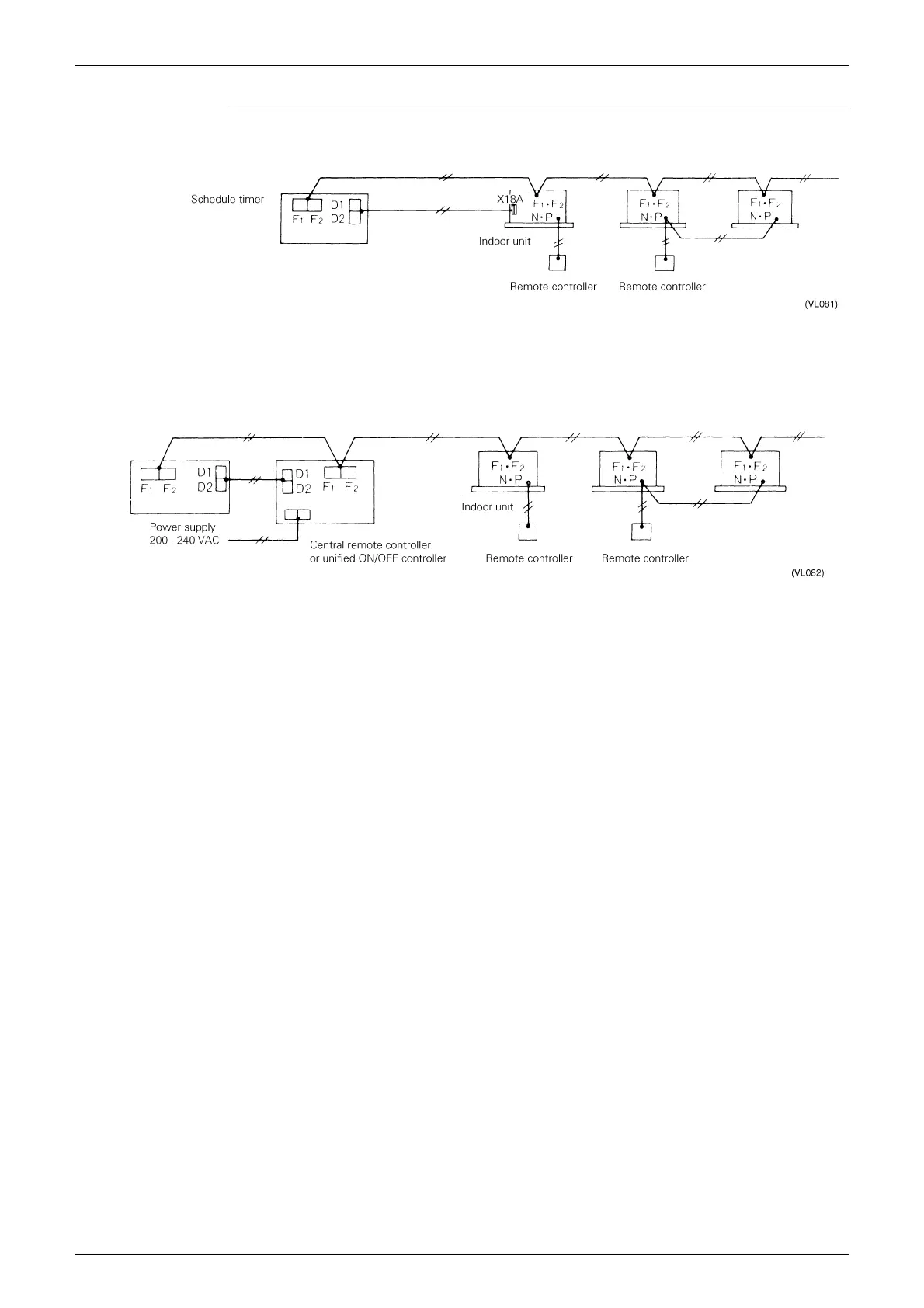

<Indoor unit wiring>
1. If schedule timer individual use:
„
For the schedule timer’s power supply, connect the schedule timer’s connectors (D1/D2) and the
connector on the indoor unit’s PC board (CN18) with the attached cable and crimp style terminals.
2. If using in combination with other optional controllers for centralised control:
Wiring for transmission: 0.75~1.25 mm² sheathed vinyl cord or cable (double core)....Max. extension
1000 m (Total wiring length 2000 m)
<Connection example of wiring for transmission>
(1)series wiring, (2) bus type wiring and (3) star type wiring are the same as with a central remote
controller.
