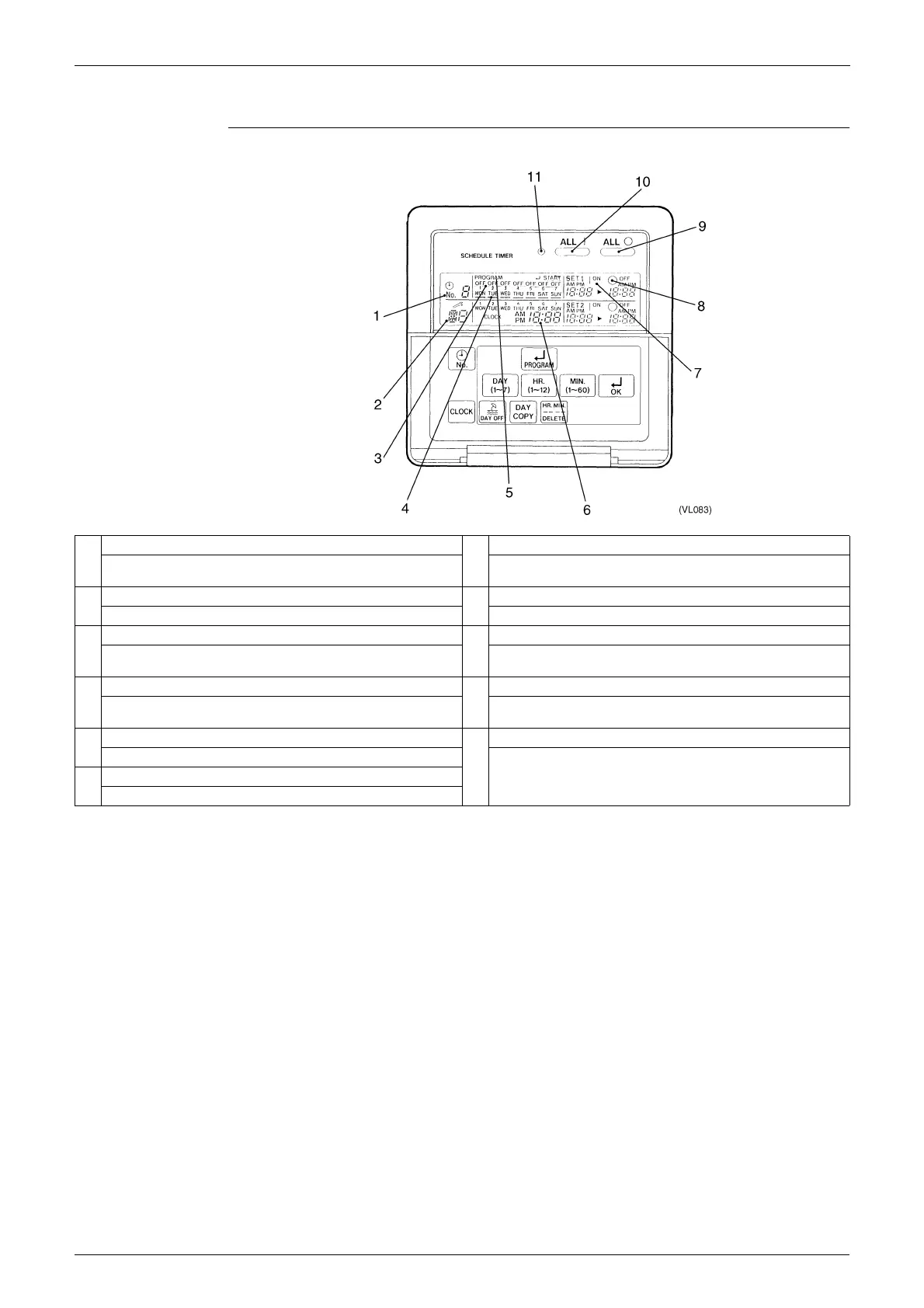

1.24.2 Schedule Timer Part Names and Functions
Display Section
All items in the display are lit for the purpose of explanation, contrary to when actually operating
1 Programmed time No. 7 Display of programmed time of system start
Displays time No. only when used in combination with a central
remote controller.
Displays the time when the system is programmed to turn on.
2 Display of malfunction code 8 Display of programmed time of system off.
Displays malfunction code. Displays the time when the system is programmed to go off.
3 Display of holiday. 9 Unified stop button
Displays day designated as a holiday inside a circle. The system
is not programmed to turn on for days designated as a holiday.
Push to stop simultaneously without regard for the No. of
programmed time.
4 Display of days of a week 10 Unified operation button
Displayed and blinks below programmed day. Push to turn on simultaneously without regard for the No. of
programmed time
5 Display of programming start. 11 Operation lamp (red)
Displayed when programmed to start by timer. Lights during operation.
6 Display of present time
Displays the present day and time.
