6. Interlock Safety Circuit
This safety circuit turns OFF the +24 VDC and +5 VDC supply voltages when the Printer Cover is
opened. When the Printer Cover is opened, the microswitch(es) on the ILS PC Board are de-actuated,
turning OFF +24 VDC to the Printer Motor Drive Circuit, the HVPS, the Paper Feed Solenoid Circuits,
the Clutch Drive Circuit, and the Laser Driver Circuit on the Laser Unit.
IN
OUT
GND
TA78M05F
+
+
MGND
L+5V
270
1W
270
1W
1W
270
MA152A
+24V
+24VD1
+24VD2
+24VM
LPC PCB
+24VHL
Q607
Q415
Right
Cover
Micro
Switch
DC/DC
Converter
Front
Cover

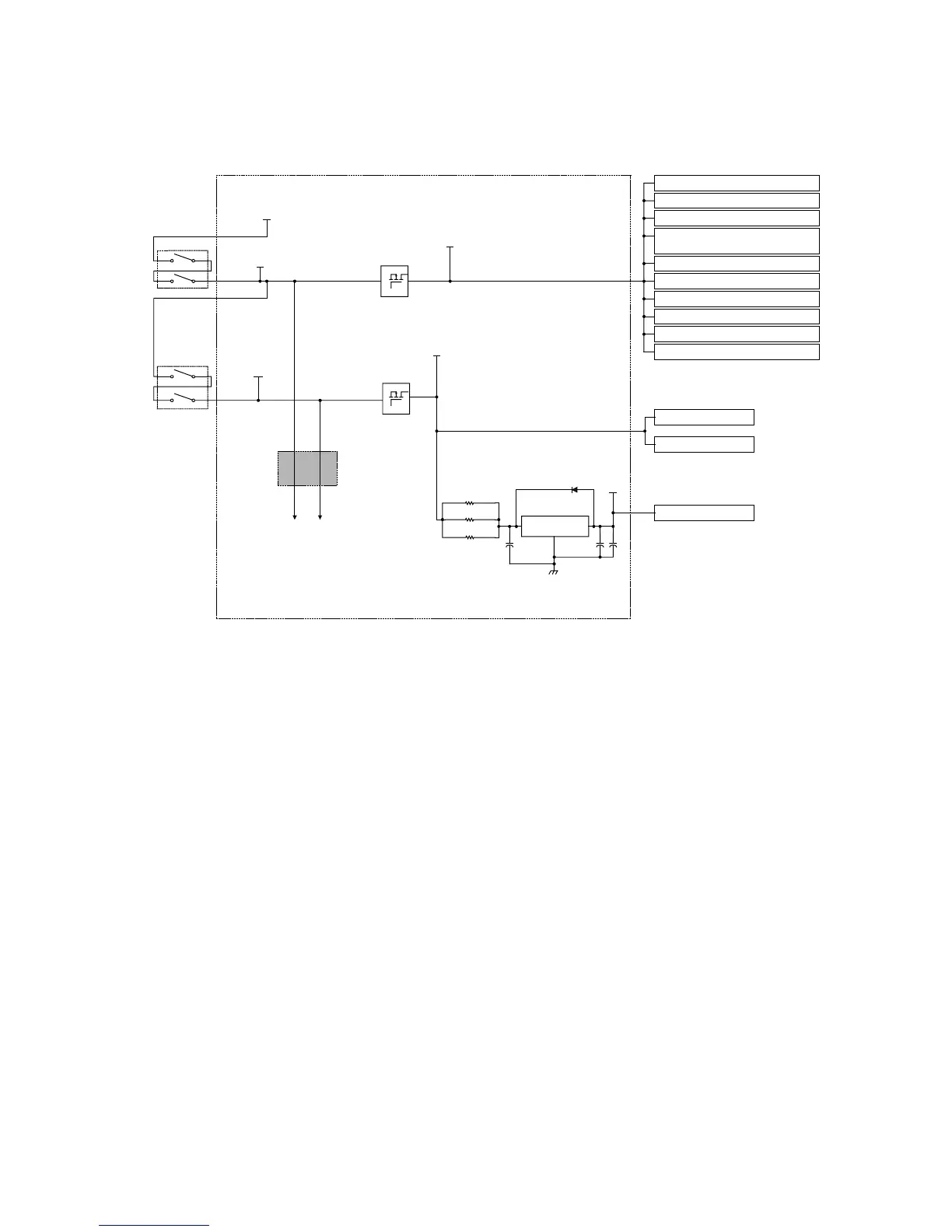

Interlock Safety Circuit Block Diagram
Printer Motor
Paper Feed Clutch
Lift DC Motor
Multi Feeder Feed Roller
Clutch
Counter
2nd Paper Feed Module
3rd Paper Feed Module
4th Paper Feed Module
Dual-Path Exit Guide Unit
Paper Transport Unit
HVPS
LSU (Motor)
LSU (Laser)
Open Door
Detection
