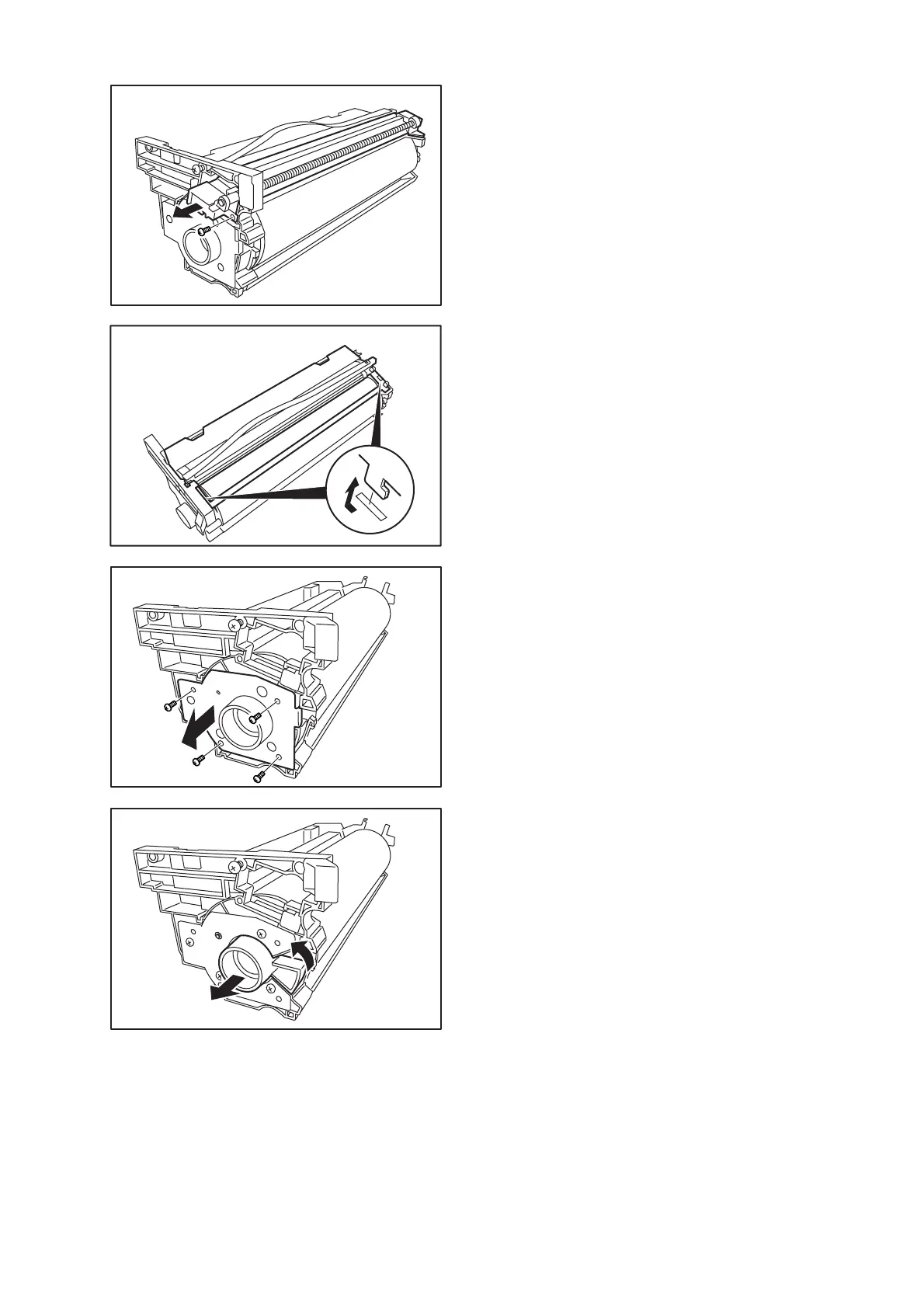

(7) Remove 1 Screw.
Remove the Bias Charge Unit.
(8) Release 2 Latch Hooks and remove the Frame
Cover.
Note:
When reinstalling, make sure that 2 Hooks are
fixed properly.
(9) Remove the 4 Screws.
(10) Remove the Front Fixation Plate.
(11) Turn the Front Support Metal counter-clockwise
and remove it.
Caution:
The OPC Drum is sensitive to light. To prevent
optical exposure problems, do not expose the
OPC Drum to direct sunlight or bright light (even if
it is a 1000-Lux fluorescent lamp).
To Next Page
