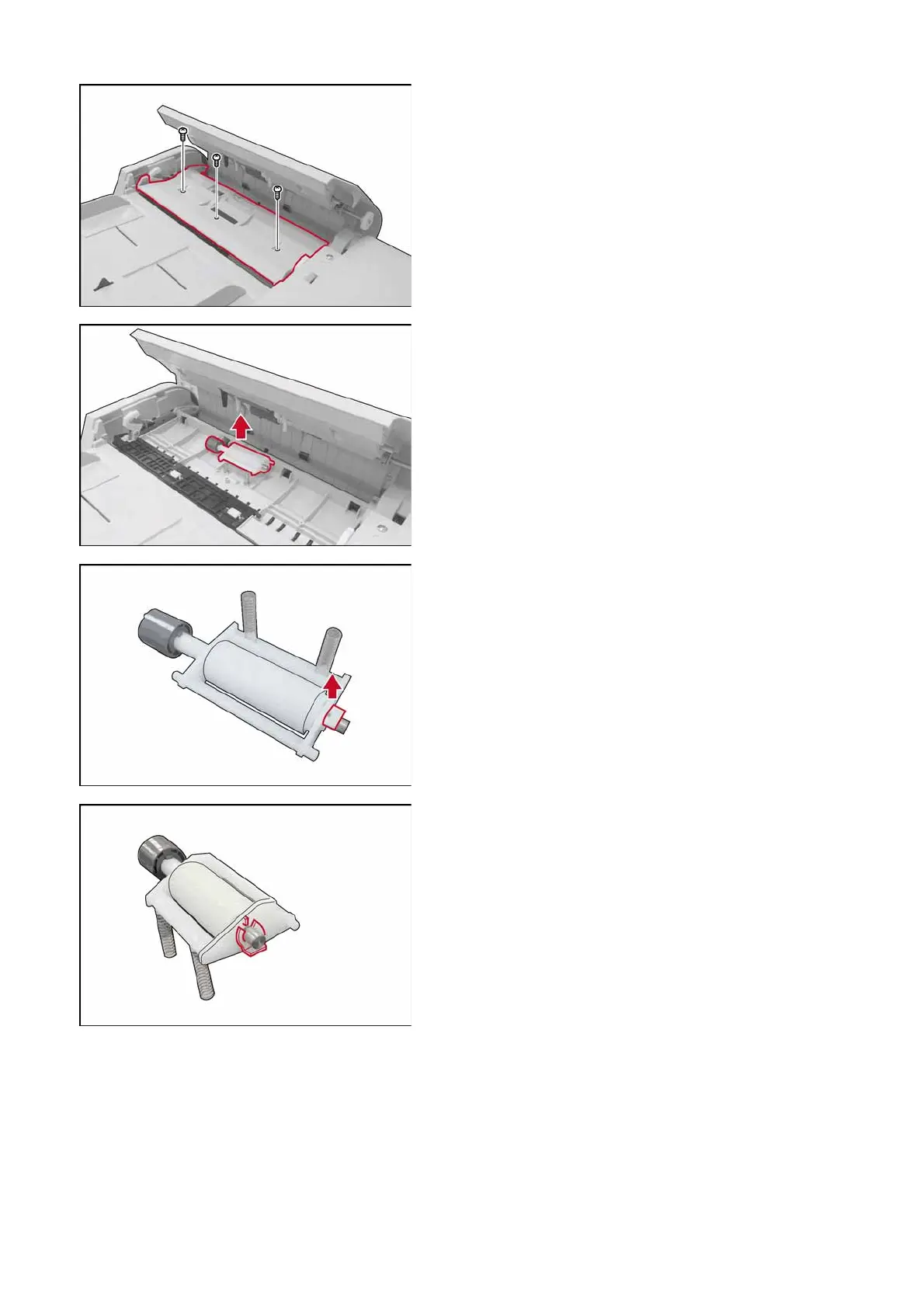

(12) Remove 3 Screws (J9).
(13) Remove the Lower Opening and Shutting
Guide 1 (601).
(14) Remove the Separation Roller Assembly.
(15) Remove the Snap Ring (H6).
Note:
When reinstalling, make sure that the Snap Ring is
installed properly as illustrated.
To Next Page
