496
JAN 2006
Ver. 5.2
DP-3510/3520/3530/4510/4520/4530/6010/6020/6030

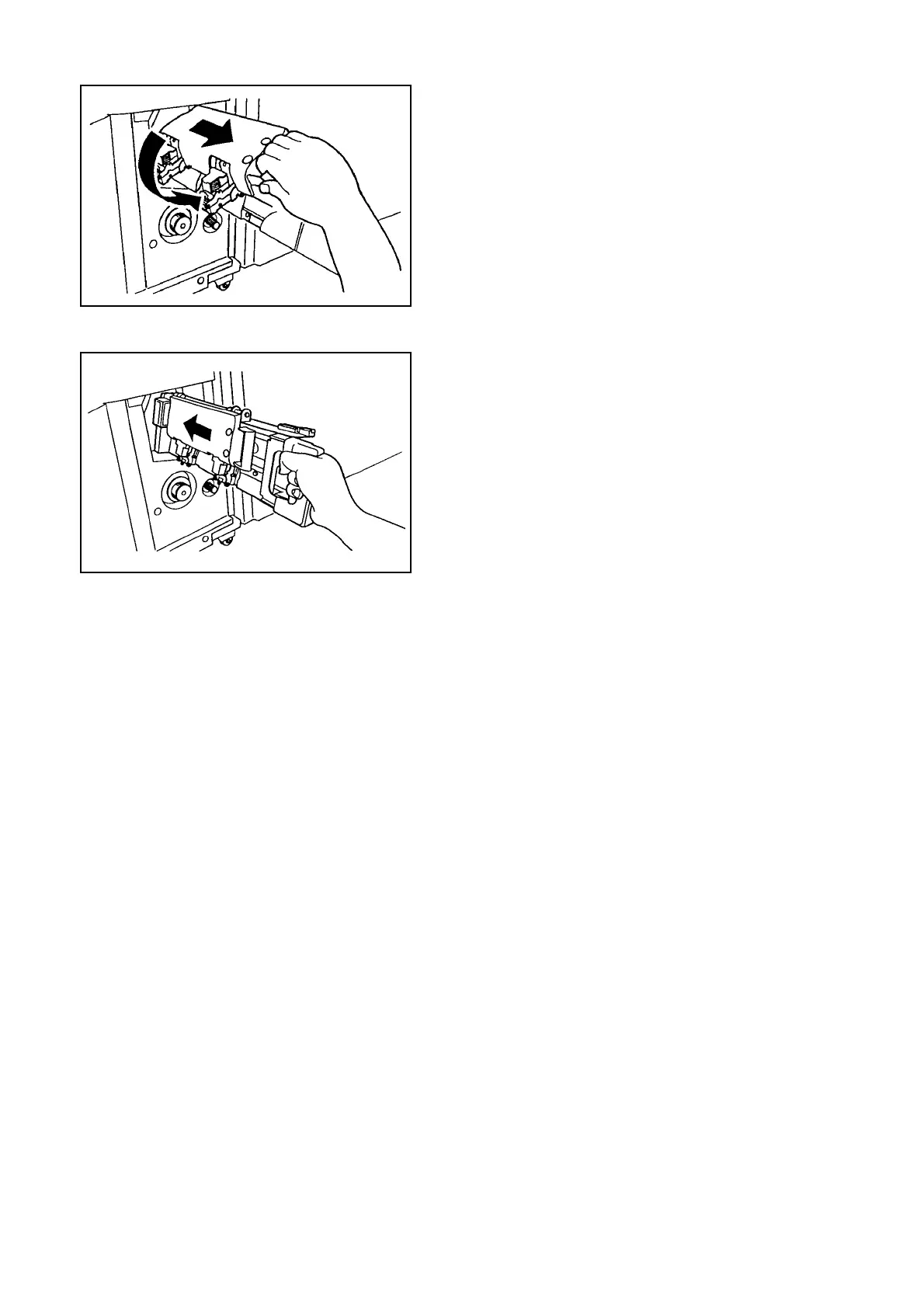

Fig. 1-049
(8) While pulling the Stitcher Unit towards you swing
it downward, to return it to its original position.
Fig. 1-050
(9) Push the Saddle Stitch Unit back to its original
position, and close the Front Lower Cover.
Note:
Whenever you remove a jammed Staple, be
sure to execute staple edging.
To Next Page
