Panasonic DP-3510

520
JAN 2006
Ver. 5.2
DP-3510/3520/3530/4510/4520/4530/6010/6020/6030

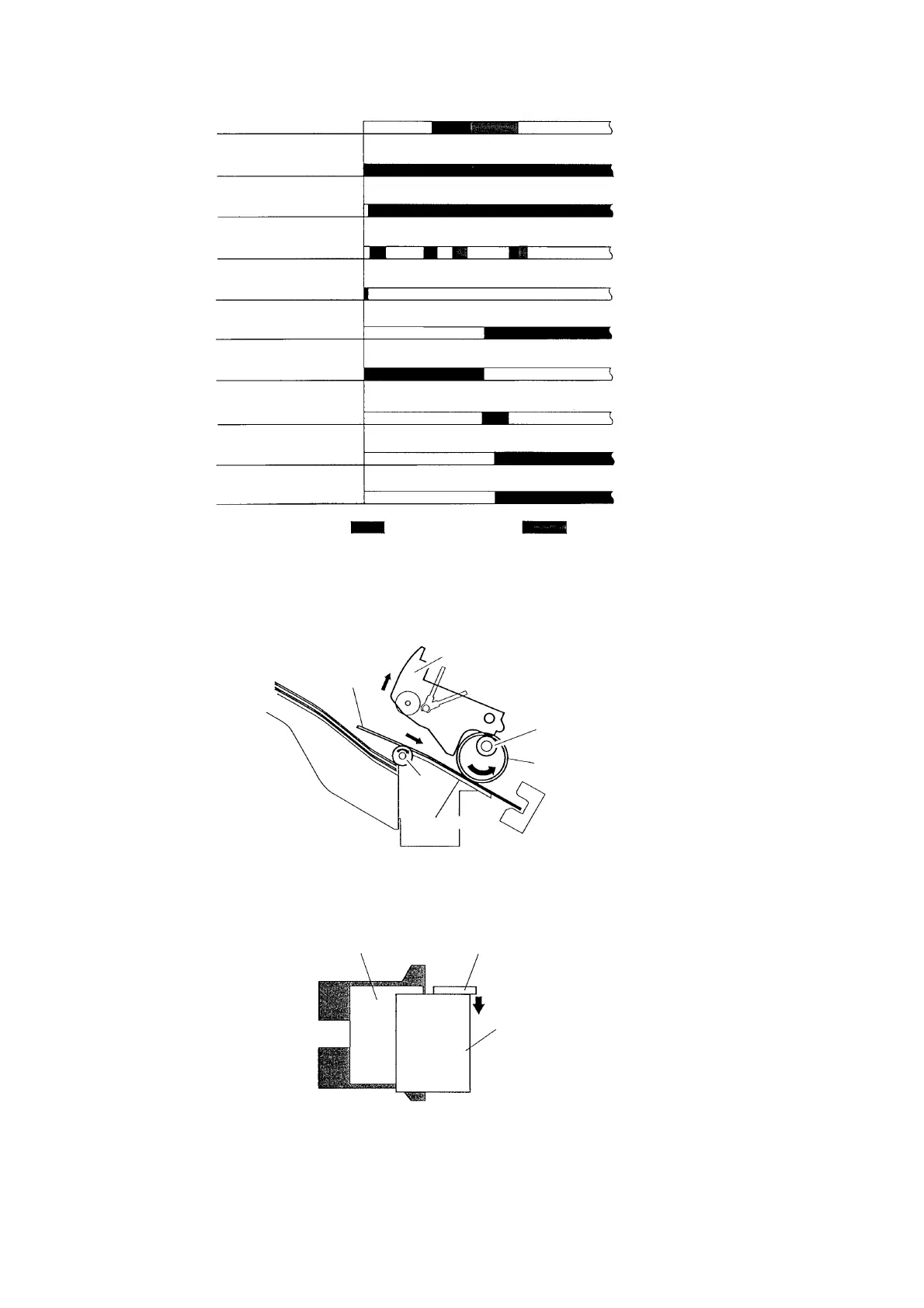

Sequence of Operation (Job Offset)
Fig. 2-027
2. Flow of Job Offset Operations
a. The Swing Guide moves up and, at the same time, the Feed Belts move the sheet to the Stapling
Tray.
Fig. 2-028
b. The Alignment Plate shifts the sheet to the front.
Fig. 2-029
Delivery Motor (M2)
First Feed Motor (M1)
Second Feed Motor (M8)
Alignment Plate Motor
(M8)
Alignment Plate Home
Position Sensor (PI6)
Swing Guide Open
Detection Switch (PI8)
Swing Guide Closed
Detection Switch (SW2)
Swing Motor (M7)
Stapling Tray Paper
Sensor (PI4)
Guide Plate Escape
Solenoid (SL6)
: Motor CW rotation
: Motor CCW rotation
Swing Guide
Offset Sheet
Tray 1/2
Delivery
Roller
Stapling Tray
Stopper
Feed Belts
Feed Roller 2
Existing Stack Alignment Plate
Offset Sheet
