b. A hole is punched in the trailing edge of the second sheet.

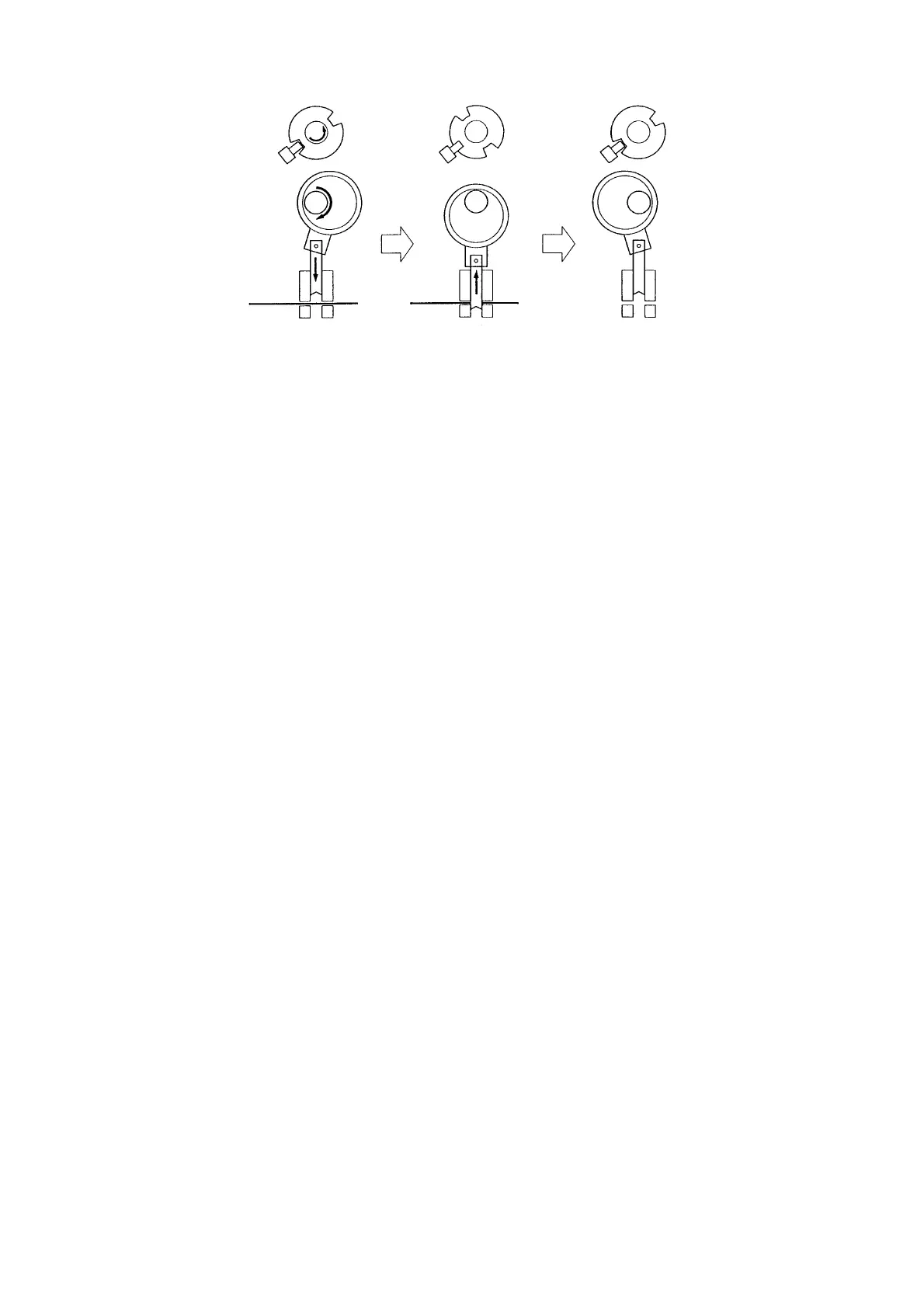

Fig. 4-007
[punch shaft
stopped/home
position]
[punch shaft is
rotated 90° in the
reverse direction/
hole punched]
[punch shaft is rotated
180° in the reverse
direction/punch
operation completed]
