3. Removing Front Inside Cover.
4. Removing the Saddle Delivery Tray Assembly.

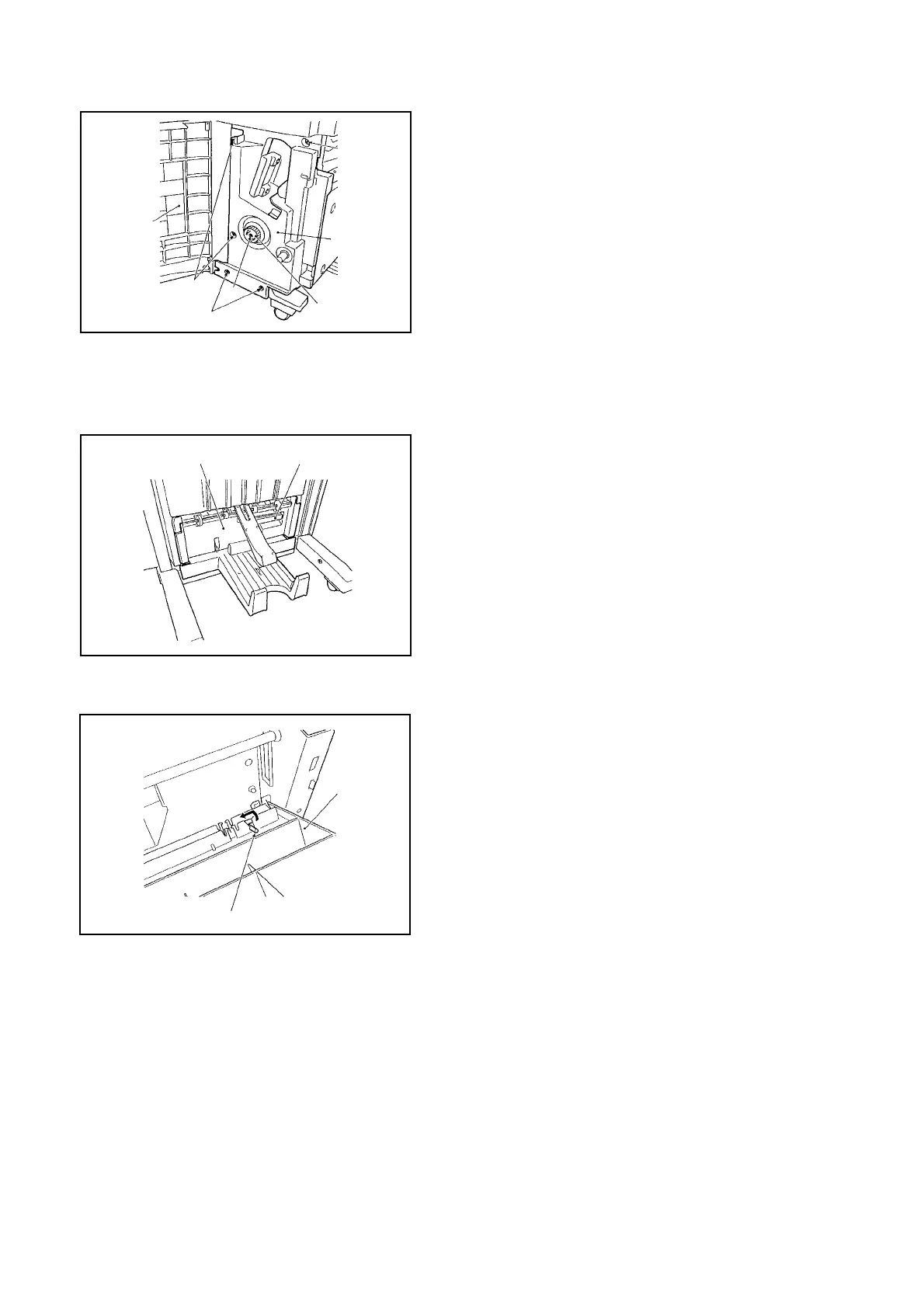

Fig. 5-031
(1) Open the Front Lower Door Assembly [1].
(2) Remove 1 Screw [2], and remove the Folding
Roller Knob [3].
(3) Remove 5 Screws [4], and remove the Front
Inside Cover [5].
Fig. 5-032
(1) Lift up the Open / Close Lever [2] of the Saddle
Delivery Tray Assembly [1], and open the Saddle
Delivery Tray Assembly.
Fig. 5-033
(2) Remove the Door Shaft [3] in the direction of the
arrow, and draw out towards the front of the
Saddle Delivery Tray Assembly [4].
