DP-3510/3520/3530/4510/4520/4530/6010/6020/6030

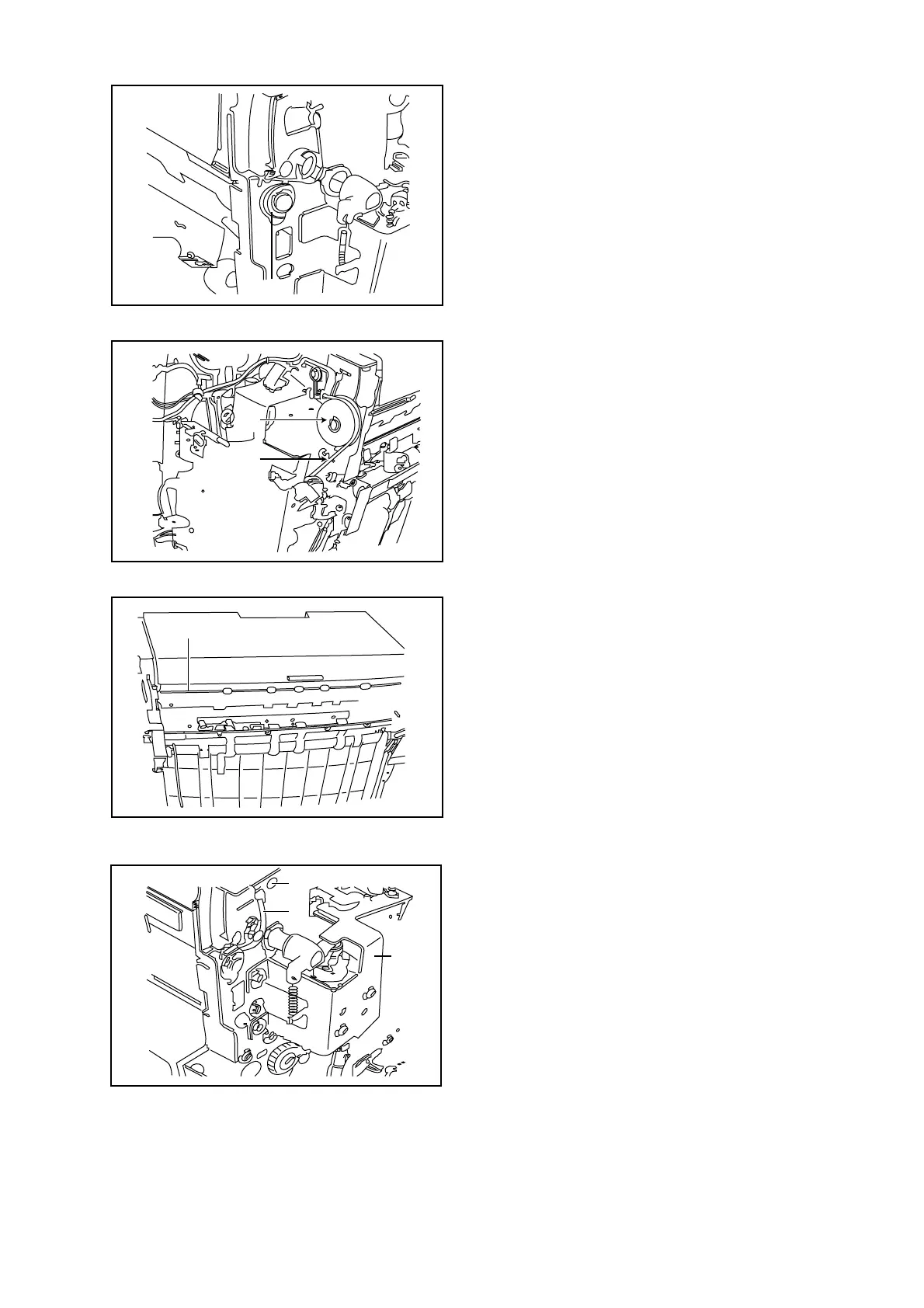

(4) Remove the Straight Paper Exit Roller Bushing
(Front) (1 E-Ring).
(5) Remove the Belt and Pulley (1 E-Ring).
(6) Remove the Straight Paper Exit Roller Bushing
(Rear) (1 E-Ring).
(7) Remove the Straight Paper Exit Roller.
12. Removal of the Path Select Gate
(1) Remove the External Covers (Front/Rear).
(2) Remove the Top Cover (2 Screws).
(3) Remove the Gate Solenoid with Mounting
Bracket (2 Screws, 1 Spring, 1 Gate Arm and 1
Connector).
(4) Remove the Straight Paper Exit Sensor
Connector.
(5) Remove the Upper Guide Plate for the Straight
Paper Exit (2 Screws and 2 Springs).
(4)
(5)
(5)
(7)
(5)
(5)
(3)
