3.35 [1-3] Option— New Card Installation—ISDN
Standard Mode for PRI23 Card (KX-TDA100/KX-TDA200/
KX-TDA600 only)
Operating Manual References
1.3.11 Call Transfer
13.1.23 Private Network Features—VoIP (Voice over Internet
Protocol)
Description
The PBX can connect to another PBX via a private IP network. In this case, voice signals are converted into
IP packets (VoIP) and sent through this network.
VoIP networks support private network communications using TIE line service.

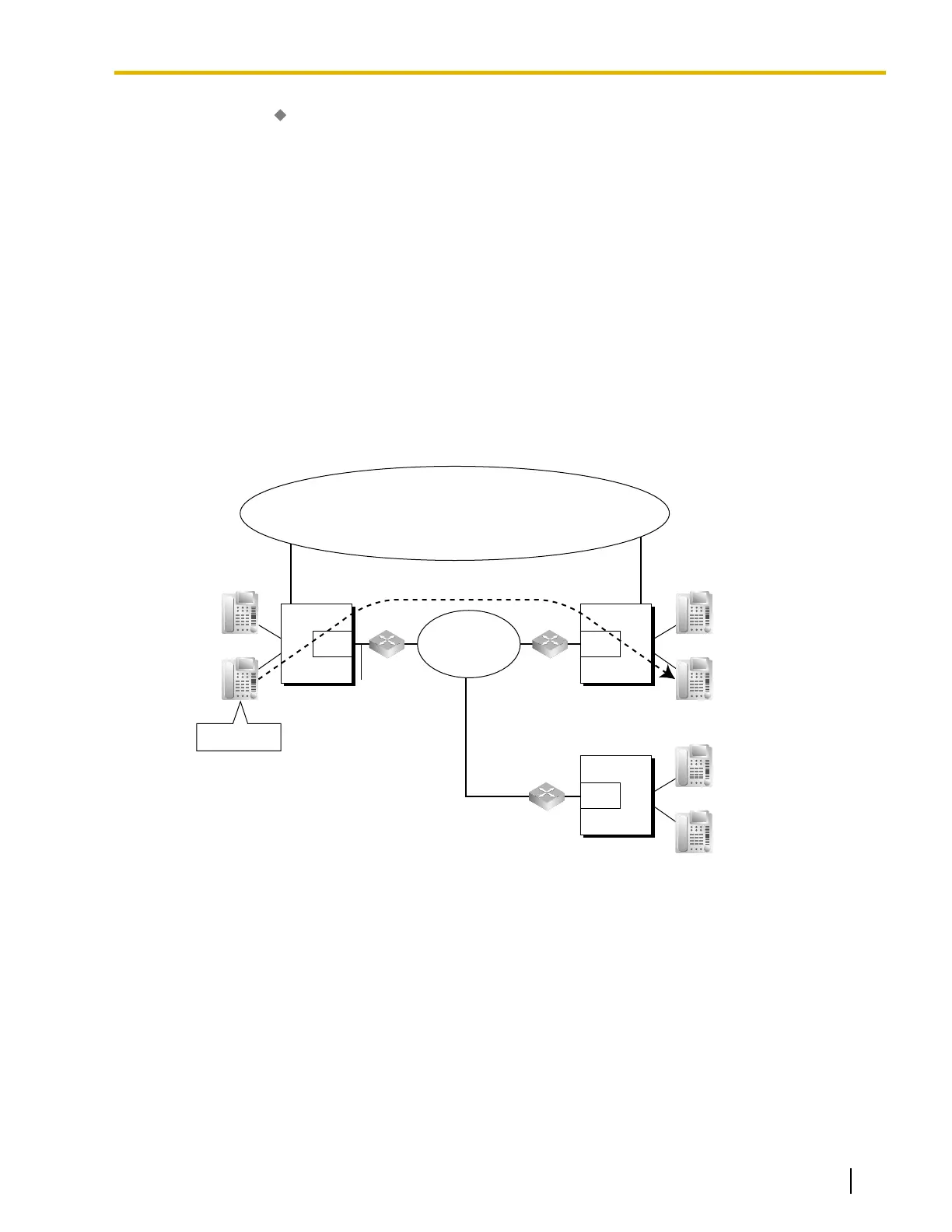

[Example]
PBX-1
PBX-2
Extn.1000
:
Extn.1999
Extn.2000
:
Extn.2999
IP-GW
Router
IP-GW
PBX-3
IP-GW
Extn.3000
:
Extn.3999
Dials "2999".
Private IP
Network
Router
Router
Telephone Company
TRG 1
TRG 2
Required Programming
• PBX
For making a call:
ARS programming (® 1.1.3 ARS (Automatic Route Selection)) or TIE line service programming
For receiving a call:
TIE line service programming
