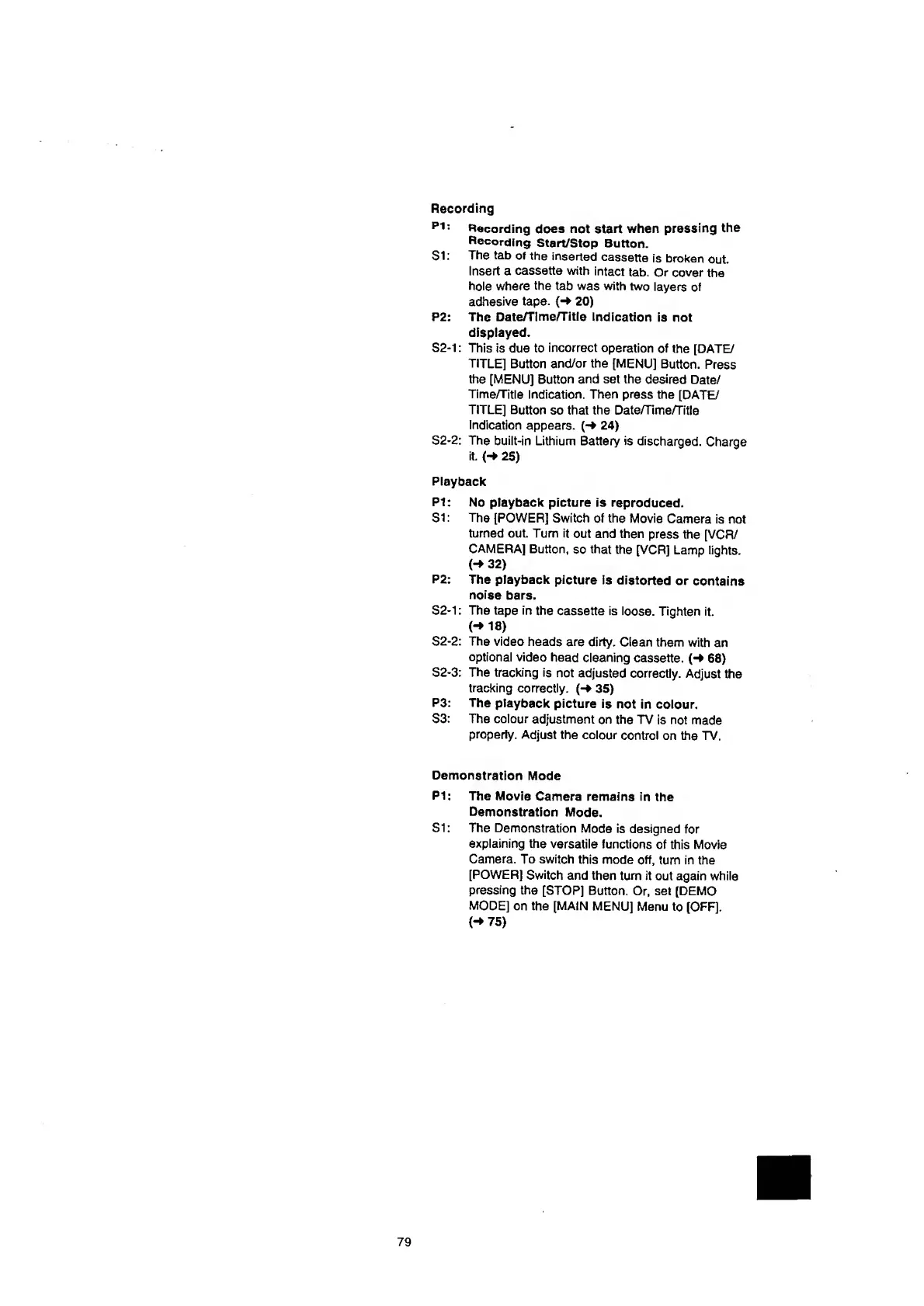

Panasonic NV-RX37A - Page 79

Recording
P1: Recording does not start when pressing the
Recording Start/Stop Button.
SI: The tab of the inserted cassette is broken out.
Insert a cassette with intact tab. Or cover the
hole where the tab was with two layers of
adhesive tape. 20)
P2: The Date/Time/Title indication is not
displayed.
S2-1: This is due to incorrect operation of the [DATE/
TITLE] Button and/or the [MENU] Button. Press
the [MENU] Button and set the desired Date/
Time/Title Indication. Then press the [DATE/
TITLE] Button so that the Date/Time/Title
Indication appears. (-* 24)
S2-2: The built-in Lithium Battery is discharged. Charge
it. <-> 25)
Playback
PI: No playback picture is reproduced.
SI: The [POWER] Switch of the Movie Camera is not
turned out. Turn it out and then press the [VCR/
CAMERA] Button, so that the [VCR] Lamp lights.
(-> 32)
P2: The playback picture is distorted or contains
noise bars.
S2-1: The tape in the cassette is loose. Tighten it.
(“> 18)
S2-2: The video heads are dirty. Clean them with an
optional video head cleaning cassette. 68)
S2-3: The tracking is not adjusted correctly. Adjust the
tracking correctly. (- ♦ 35)
P3: The playback picture is not in colour.
S3: The colour adjustment on the TV is not made
properly. Adjust the colour control on the TV.
Demonstration Mode
PI: The Movie Camera remains in the
Demonstration Mode.
SI: The Demonstration Mode is designed for
explaining the versatile functions of this Movie
Camera. To switch this mode off, turn in the
[POWER] Switch and then turn it out again while
pressing the [STOP] Button. Or, set [DEMO
MODE] on the [MAIN MENU] Menu to [OFF],
75)
