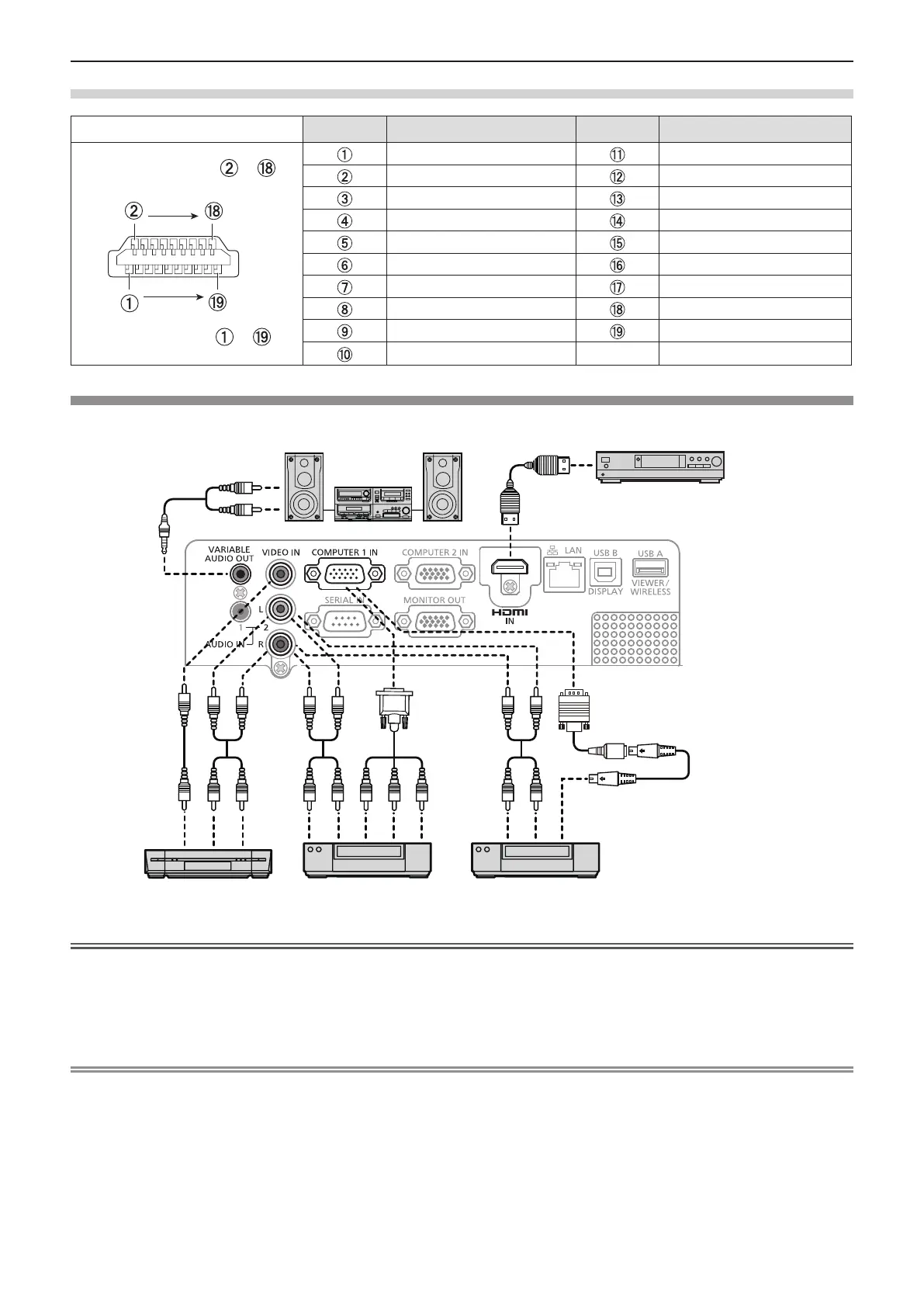

<HDMI IN> terminal pin assignments and signal names
Outside view
Pin No. Signal names Pin No. Signal names
Even-numbered pins to
Odd-numbered pins to
T.M.D.S data 2+ T.M.D.S clock shield
T.M.D.S data 2 shield T.M.D.S clock
-
T.M.D.S data 2
-
CEC
T.M.D.S data 1+ —
T.M.D.S data 1 shield SCL
T.M.D.S data 1
-
SDA
T.M.D.S data 0+ DDC/CEC GND
T.M.D.S data 0 shield +5 V
T.M.D.S data 0
-
Hot plug detection
T.M.D.S clock +
Connecting example : AV equipment
Audio equipment
Blu-ray disc player with
HDMI terminal
D-sub/component
Conversion cable
D-SUB - S Video conversion
cable (Model No.: ET-ADSV)
S-video cable
Video deck
(TBC built-in)
DVD player
DVD player
Attention
f Always use one of the following when connecting a VCR.
- A VCR with built-in time base corrector (TBC).
- A time base corrector (TBC) between the projector and the VCR.
f If nonstandard burst signals are connected, the image may be distorted. In such case, connect the time base corrector
(TBC) between the projector and the external devices.
Note
f For an HDMI cable, use an HDMI High Speed cable that conforms to HDMI standards. If a cable that does not conform to
HDMI standards is used, images may be interrupted or may not be projected.
f This projector does not support the VIERA link (HDMI).
f When the <VARIABLE AUDIO OUT> terminal is connected with cable, the sound will not be output from the built-in speaker.
f When input Y/C signal, the optional D-SUB - S Video Conversion cable (Model No.: ET-ADSV) is required.
