10 Disassembly and Assembly Instructions
Caution Note:
s This section describes the disassembly and/or assembly procedures for all major printed circuit boards & main compo-
nents for the unit. (You may refer to the section of “Main components and P.C.B Locations” as described in the service
manual)
s Before carrying out the disassembly process, please ensure all the safety precautions & procedures are followed.
s During the disassembly and/or assembly process, please handle with care as there may be chassis components with
sharp edges.

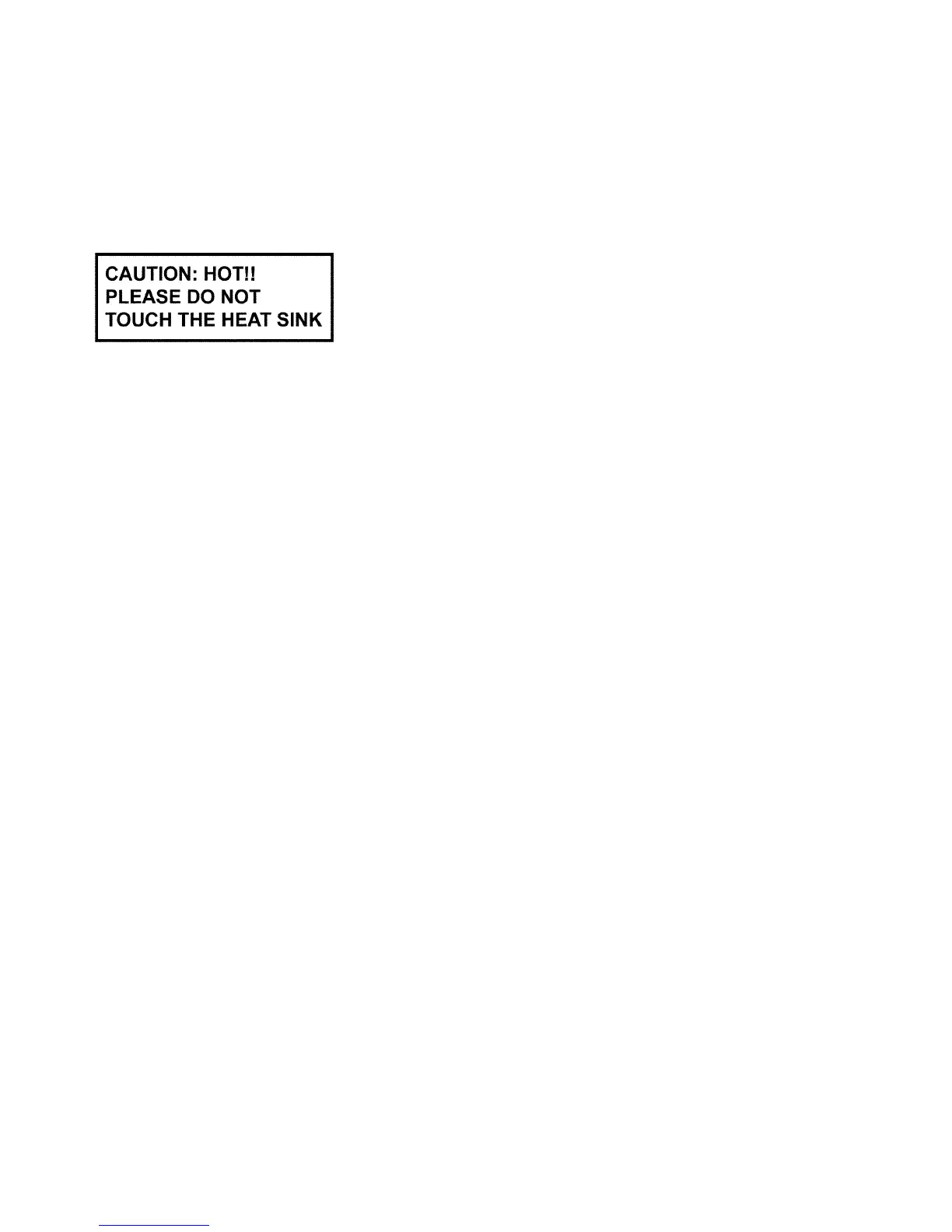

s Avoid touching heatsinks due to its high temperature after prolong use. (See caution as described below)
s During disassembly and assembly, please ensure proper service tools, equipments or jigs is being used.
s During replacement of component parts, please refer to the section of “Replacement Parts List” as described in the ser-
vice manual.
s Select items from the following indexes when disassembly or replacement are required.
s Disassembly of Top Cabinet
s Disassembly of Front Panel Unit
s Disassembly of Mic P.C.B.
s Disassembly of Panel P.C.B.
s Disassembly of Memory LED P.C.B.
s Disassembly of Remote Sensor P.C.B.
s Disassembly of USB P.C.B.
s Disassembly of Music Port P.C.B.
s Disassembly of Top Bar LED P.C.B.
s Disassembly of Bottom Bar LED P.C.B.
s Disassembly of Main P.C.B.
s Replacement of Voltage Regulator (IC2010)
s Replacement of Voltage Regulator (IC2011)
s Disassembly of D-Amp P.C.B.
s Replacement of Audio Digital Amp (IC5400)
s Replacement of Audio Digital Amp (IC5000)
s Replacement of Audio Digital Amp (IC5200)
s Replacement of Audio Digital Amp (IC5300)
s Disassembly of SMPS P.C.B.
s R
eplacement of Switching Regulator IC (IC5701)
s Replacement of Rectifier Diode (D5702)
s Replacement of Rectifier Diode (D5801)
s Replacement of Rectifier Diode (D5802)
s Replacement of Rectifier Diode (D5803)
s Disassembly of CD Mechanism Unit (BRS11C)
s Disassembly of CD Interface P.C.B.
s Disassembly of CD Servo P.C.B.
s Disassembly of Rear Panel
