Panasonic SA-MAX500LMK - Disassembly of CD Interface P.C.B.

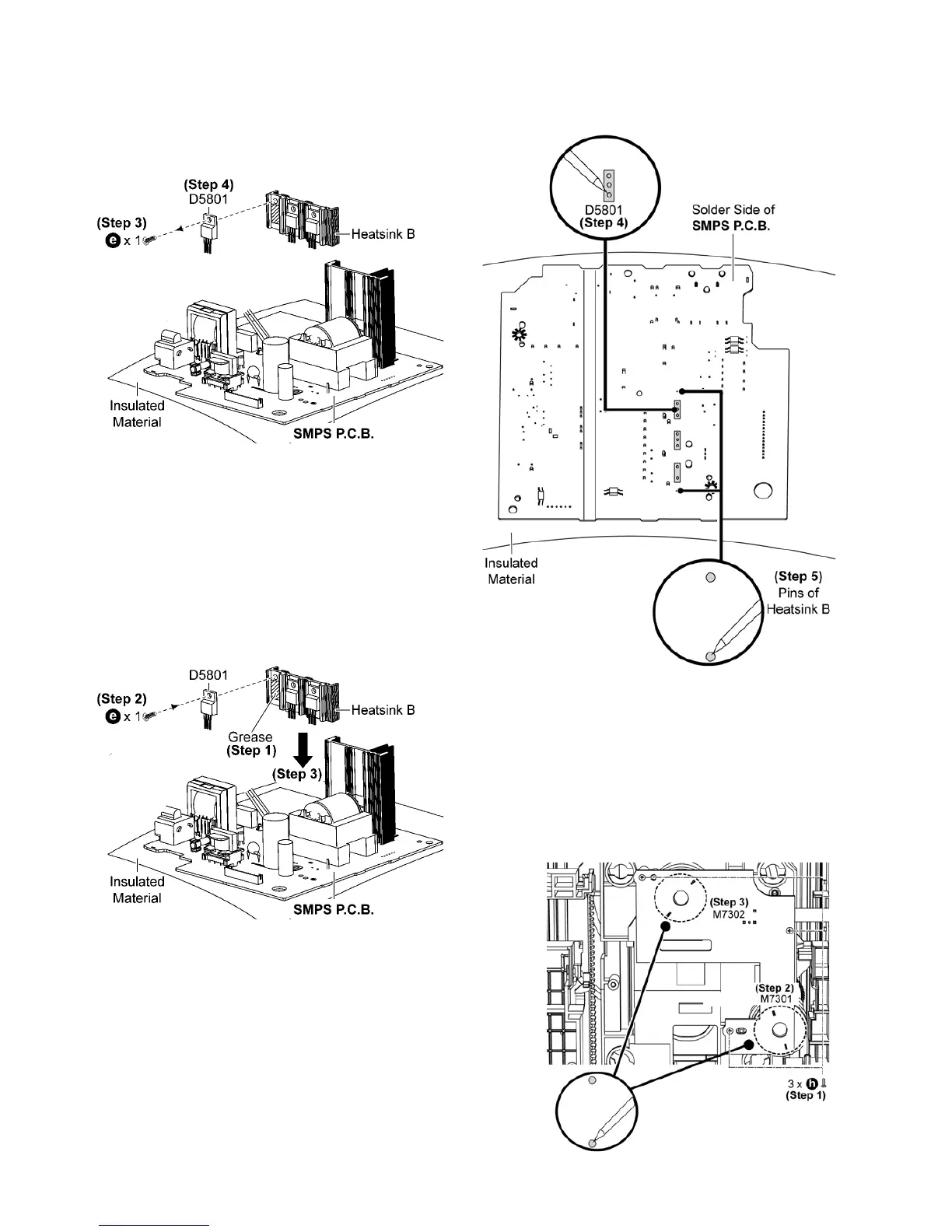

Step 3 Remove 1 screw at Rectifier Diode (D5801).
Step 4 Remove the Rectifier Diode (D5801) from the SMPS
P.C.B..
Caution: Avoid touching the Heatsink B due to its high
temperature after prolonged use. Touching it may lead to
injuries.
10.24.2. Assembly of Rectifier Diode
(D5801)
Step 1 Apply grease to the Heatsink B.
Step 2 Screw the Rectifier Diode (D5801) to the Heatsink B.
Caution: Ensure the Rectifier Diode (D5801) is tightly
screwed to the Heatsink B.
Step 3 Fix the Heatsink B with Rectifier Diode (D5801) on the
SMPS P.C.B..
Caution: Ensure pins of the Rectifier Diode (D5801) are
proper
ly inserted into the SMPS P.C.B..
Step 4 Solder pins of the Rectifier Diode (D5801) on the solder
side of the SMPS P.C.B..
Step 5 Solder pins of the Heatsink B.
10.25. Disassembly of CD Interface P.C.B.
 Refer to “Disassembly of Top Cabinet”.
 Refer to “Disassembly of Front Panel Unit”.
 Refer to “Disassembly of CD Mechanism Unit
(BRS11C)”.
Step 1 Remove 3 screws.
Step 2 Desolder pins of the motor (M7301).
Step 3 Desolder pins of the motor (M7302).
