10.6. Disassembly of FL Display
P. C. B .
s Refer to “Disassembly of Top Cabinet”.
s Refer to “Disassembly of Front Panel Unit”.

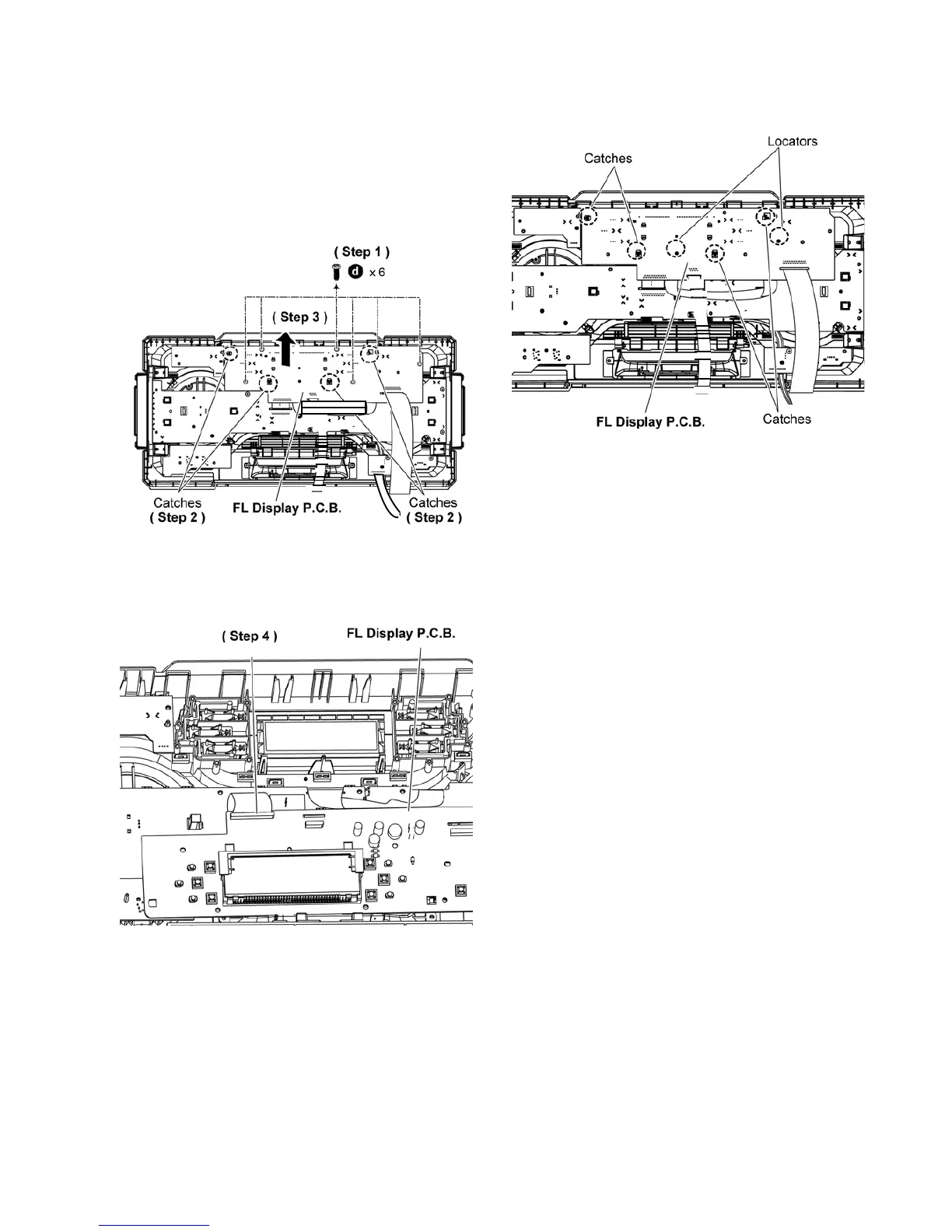

Step 1 Remove 6 screws.
Step 2 Release 4 catches.
Step 3 Lift up the FL Display P.C.B..
Step 4 Detach 30P FFC at a connector (CN6000) on the FL
Display P.C.B..
Caution: During assembling, ensure that the FL Display
P.C.B. is properly located and fully catched onto Front
Panel Unit.
CN6000
