Panasonic SA-MAX500LMK - Disassembly of Volume Jog LED P.C.B.; Disassembly of Remote Sensor P.C.B.; Disassembly of USB P.C.B.

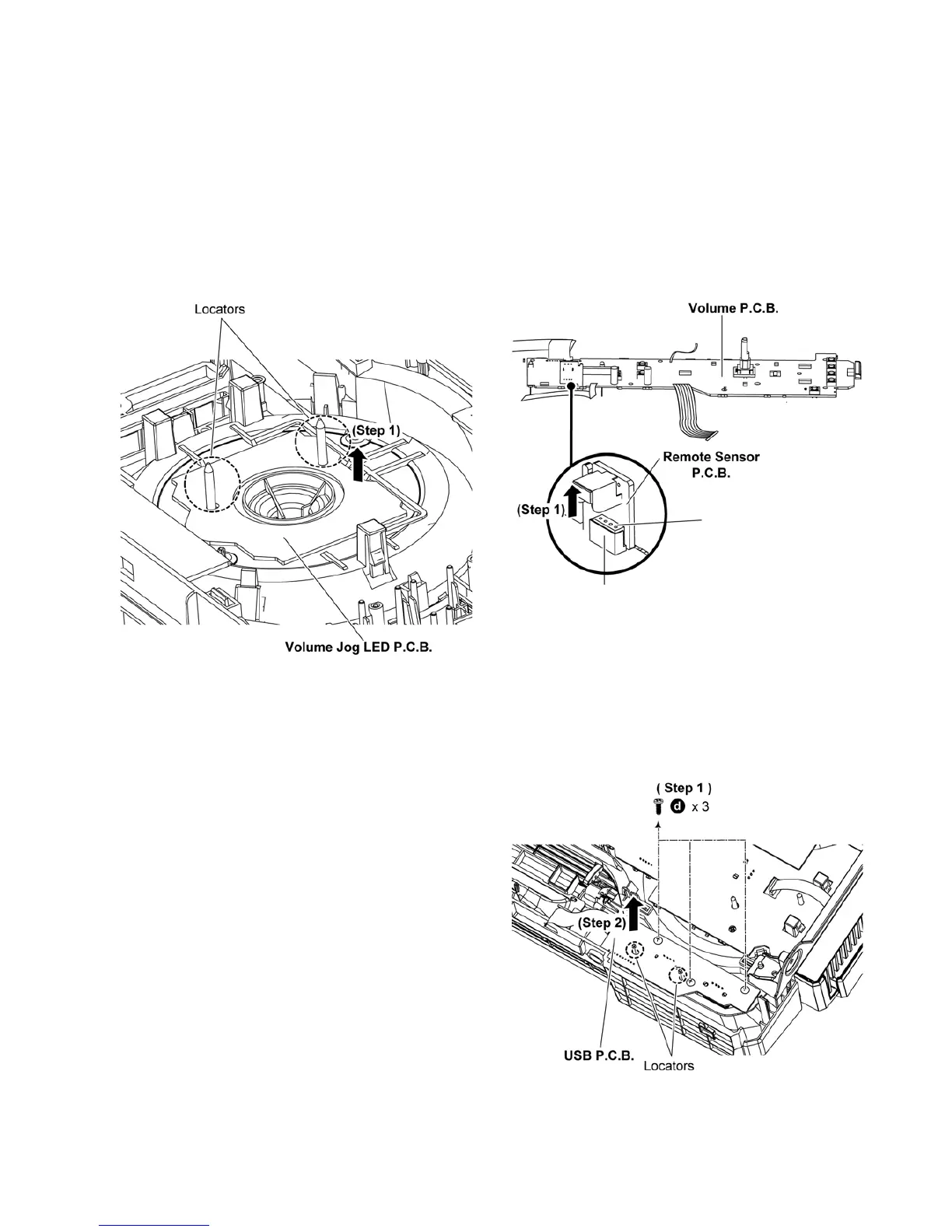

10.11. Disassembly of Volume Jog
LED P.C.B.
 Refer to “Disassembly of Top Cabinet”.
 Refer to “Disassembly of Front Panel Unit”.
 Refer to “Disassembly of FL Display P.C.B.”.
 Refer to “Disassembly of Control P.C.B.”.
 Refer to “Disassembly of Volume P.C.B.”.
Step 1 Lift up to remove the Volume Jog LED P.C.B..
Caution: During assembling, ensure that the Volume Jog
LED P.C.B. is properly located & fully seated onto the Front
Panel Unit.
10.12. Disassembly of Remote Sensor
P.C.B.
 Refer to “Disassembly of Top Cabinet”.
 Refer to “Disassembly of Front Panel Unit”.
 Refer to “Disassembly of FL Display P.C.B.”.
 Refer to “Disassembly of Control P.C.B.”.
 Refer to “Disassembly of Volume P.
C.B.”.
Step 1 Remove the the Remote Sensor P.C.B..
Caution: During assembling, ensure that the Remote Sen-
sor P.C.B. is properly inserted & fully connected to the FL
Display P.C.B..
10.13. Disassembly of USB P.C.B.
 Refer to “Disassembly of Top Cabinet”.
 Refer to “Disassembly of Front Panel Unit”.
Step 1 Remove 3 screws.
Step 2 Lift up to remove the USB P.C.B..
Caution: During assembling, ensure that the USB P.C.B. is
properly located & fully seated onto the Front Panel Unit.
CN6200
CN6001
