10.23. Replacement of Rectifier Diode
s Refer to “Disassembly of SMPS P.C.B.”.

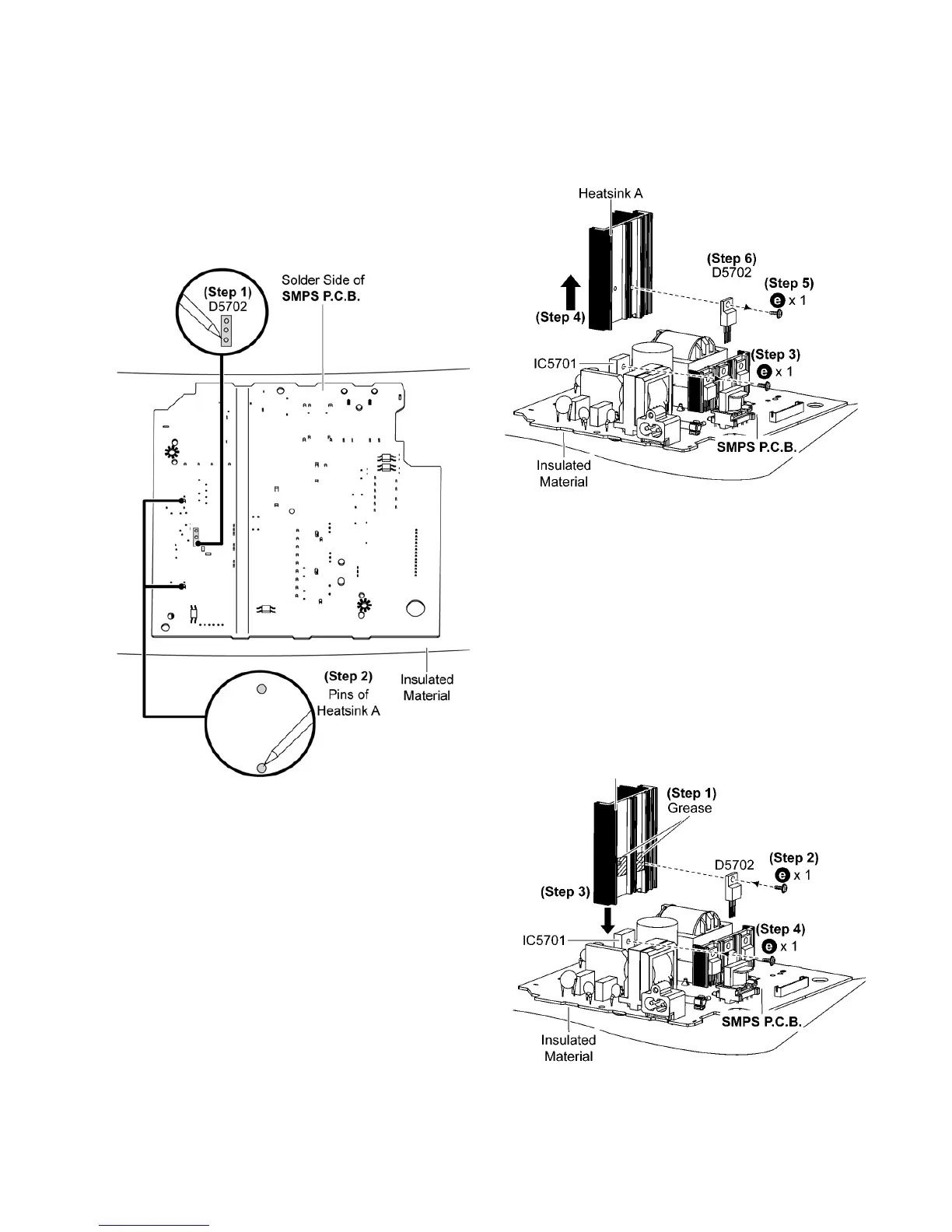

10.23.1. Disassembly of Rectifier Diode
Step 1 Desolder pins of the Rectifier Diode (D5702) and
(D5802) on the solder side of the SMPS P.C.B..
Step 2 Desolder pins of the Heatsink B.
Step 3 Remove 1 screw at Rectifier Diode (D5702).
Step 4 Remove the Rectifier Diode (D5702) from the SMPS
P.C.B..
Caution: Avoid touching the Heatsink B due to its high
temperature after prolonged use. Touching it may lead to
injuries.
10.23.2. Assembly of Rectifier Diode
(D5801)
Step 1 Apply grease to the Heatsink B.
Step 2 Screw the Rectifier Diode (D5702) to the Heatsink B.
Caution: Ensure the Rectifier Diode (D5702) is tightly
screwed to the Heatsink B.
Step 3 Fix the Heatsink B with Rectifier Diode (D5801) on the
SMPS P.C.B..
Caution: Ensure the Heatsink A with Rectifier Diode
(D5702) are properly inserted into the SMPS P.C.B..
Step 4 Screw the Switching Regulator IC (IC5701) to the Heat-
sink A.
Caution: Ensure that the Switching Regulator IC (IC5701) is
tightly screwed to the Heatsink A.
