10.17. Disassembly of Rear Panel
s Refer to “Disassembly of Top Cabinet”.

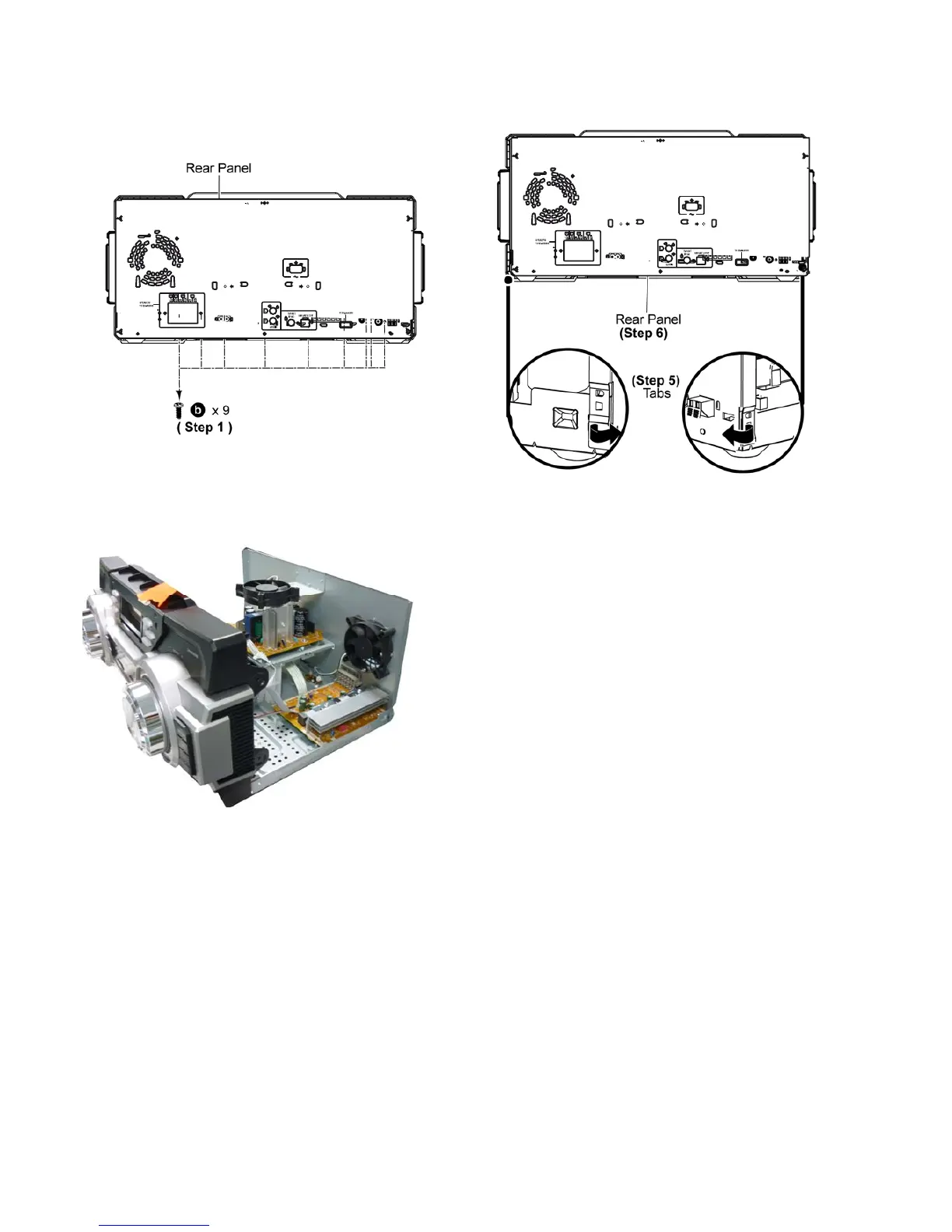

Step 1 Remove 9 screws.
Step 3 Release catches on fans.
Step 4 Remove 2 fans.
Step 5 Release 2 tabs.
Step 6 Remove the Rear Panel.
