10.8. Disassembly of Control P.C.B.
 Refer to “Disassembly of Top Cabinet”.
 Refer to “Disassembly of Front Panel Unit”.
 Refer to “Disassembly of FL Display P.C.B.”.

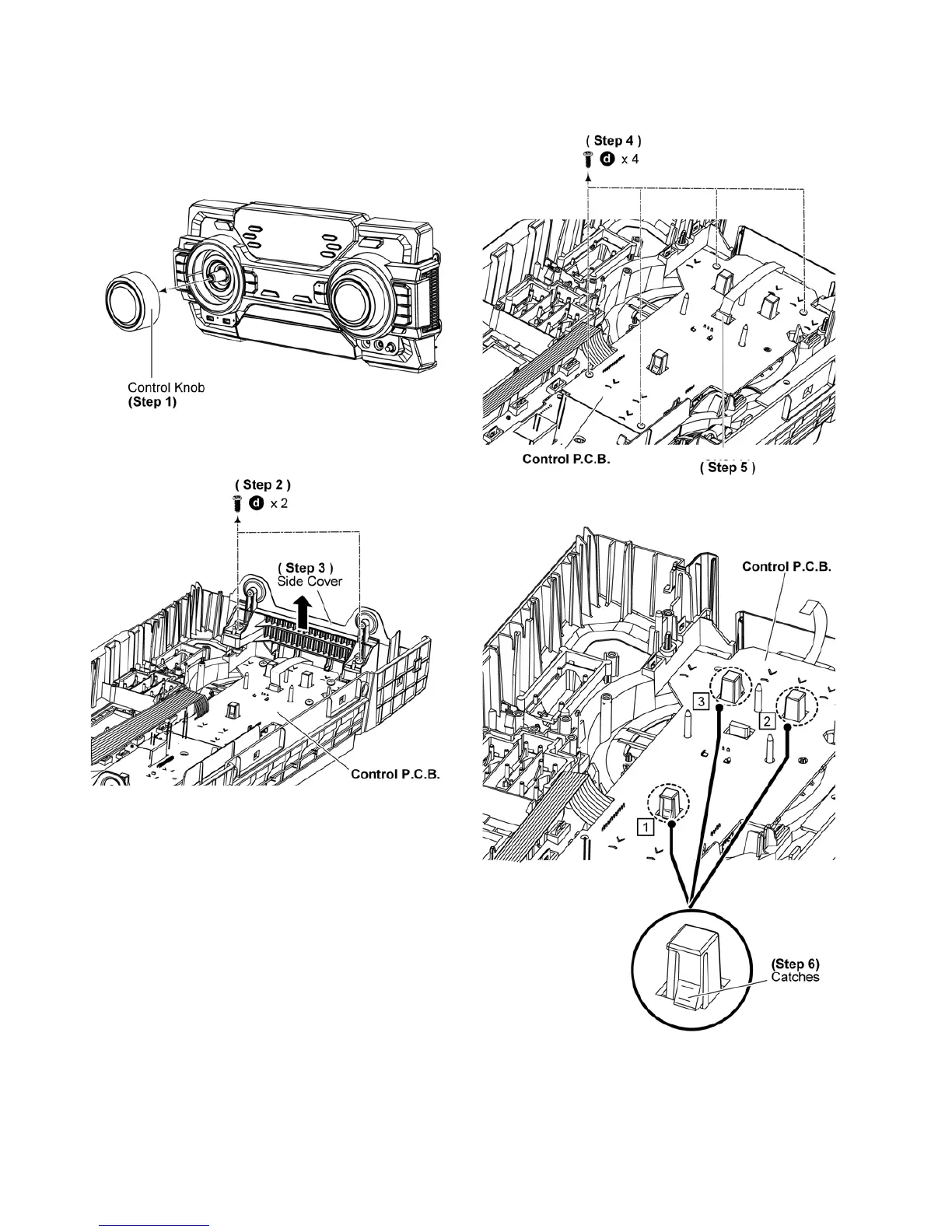

Step 1 Remove the Control Knob.
Step 2 Remove 2 screws.
Step 3 Remove the Side Cover.
Step 4 Remove 4 screws.
Step 5 From R part of P.C.B.
Step 6 Release catches by following the sequences (1-3).
