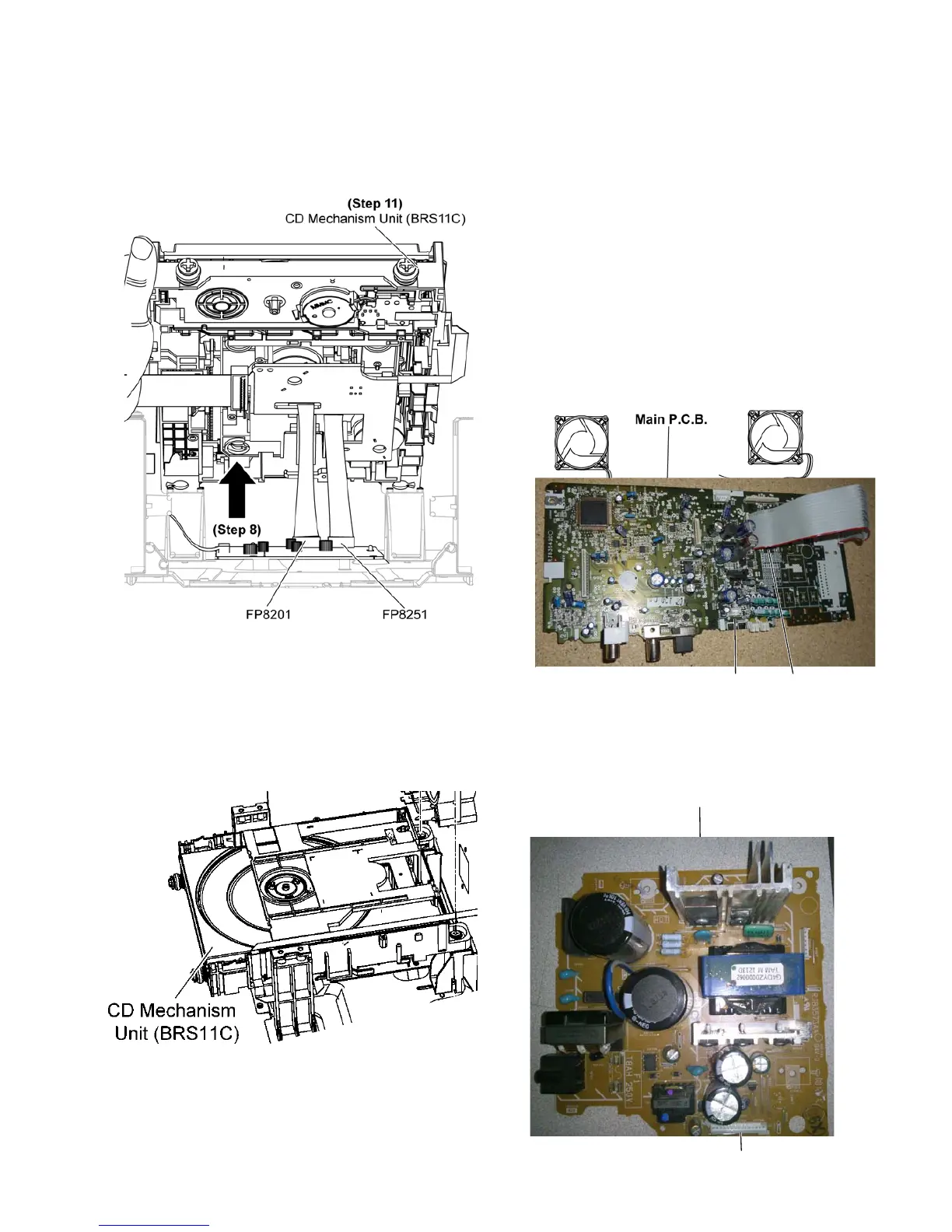

10.18. Disassembly of CD Mecha-
nism Unit
s Refer to “Disassembly of Top Cabinet”.
s Refer to “Disassembly of Front Panel Unit”.
Step 1 Remove 2 screws.
Step 2 Detach 10P FFC at the connector (FP8251) on the Main
P.C.B..
Step 3 Detach 24P FFC at the connector (FP8201) on the Main
P.C.B..
10.19. Disassembly of Main P.C.B.
s Refer to “Disassembly of Top Cabinet”.
s Refer to “Disassembly of Front Panel Unit”.
s Refer to “Disassembly of Rear Panel”.
s Refer to “Disassembly of CD Mechanism Unit”.
Step 1 Detach 2P Wire at the connector (CN2005) on the Main
P.C.B..
Step 3 Detach 2P Wire at the connector (CN2006) on the Main
P.C.B..
Step 4 Detach 13P Cable at the connector (CN5802) on the
SMPS P.C.B..
Step 5 Remove 2 screws.
Step 6 Lift up to remove the Main P.C.B..
Caution: During assembling, ensure that the Main P.C.B. is
properly located & fully seated onto the Inner Chassis Unit.
CN2005
Step 1
SMPS P.C.B.
CN2006
Step 3
CN5802
Step 5
To Next Page
