Panasonic SA-MAX500LMK - Disassembly of Front Panel Unit

Step 6 Release tabs at the bottom of the unit.
Step 7 Remove the Front Panel Unit
(Step 7)
Front Panel Unit
§
10.5. Disassembly of Front Panel
Unit
 Refer to “Disassembly of Top Cabinet”.

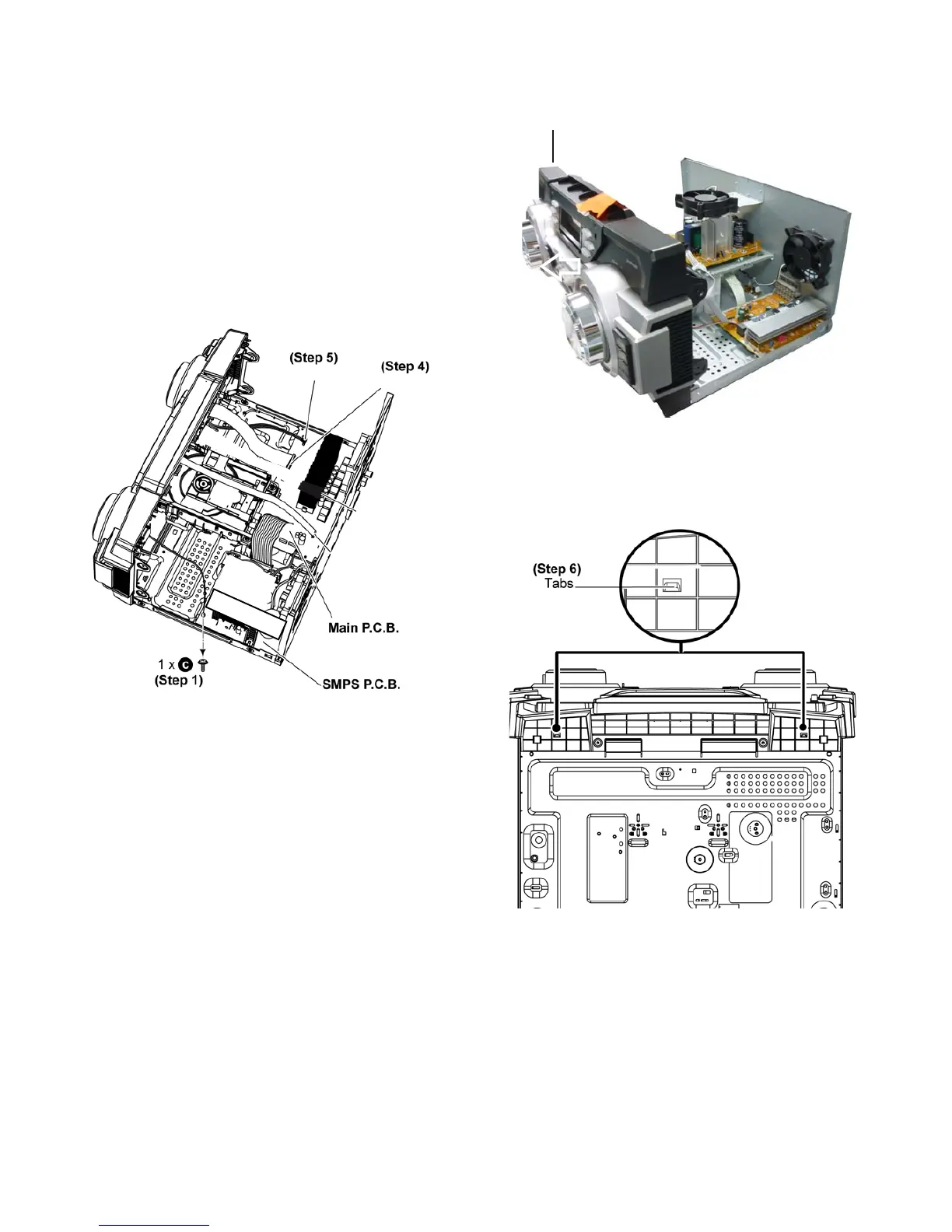

Step 1 Remove 1 screw at the SMPS P.C.B.
Step 4 Detach 30P FFC at the connector (CN2003) on Main
P.C.B..
Step 5 Detach 5P Wire at the connector (CN2700) on Main
P.C.B..
CN2003
CN2700
