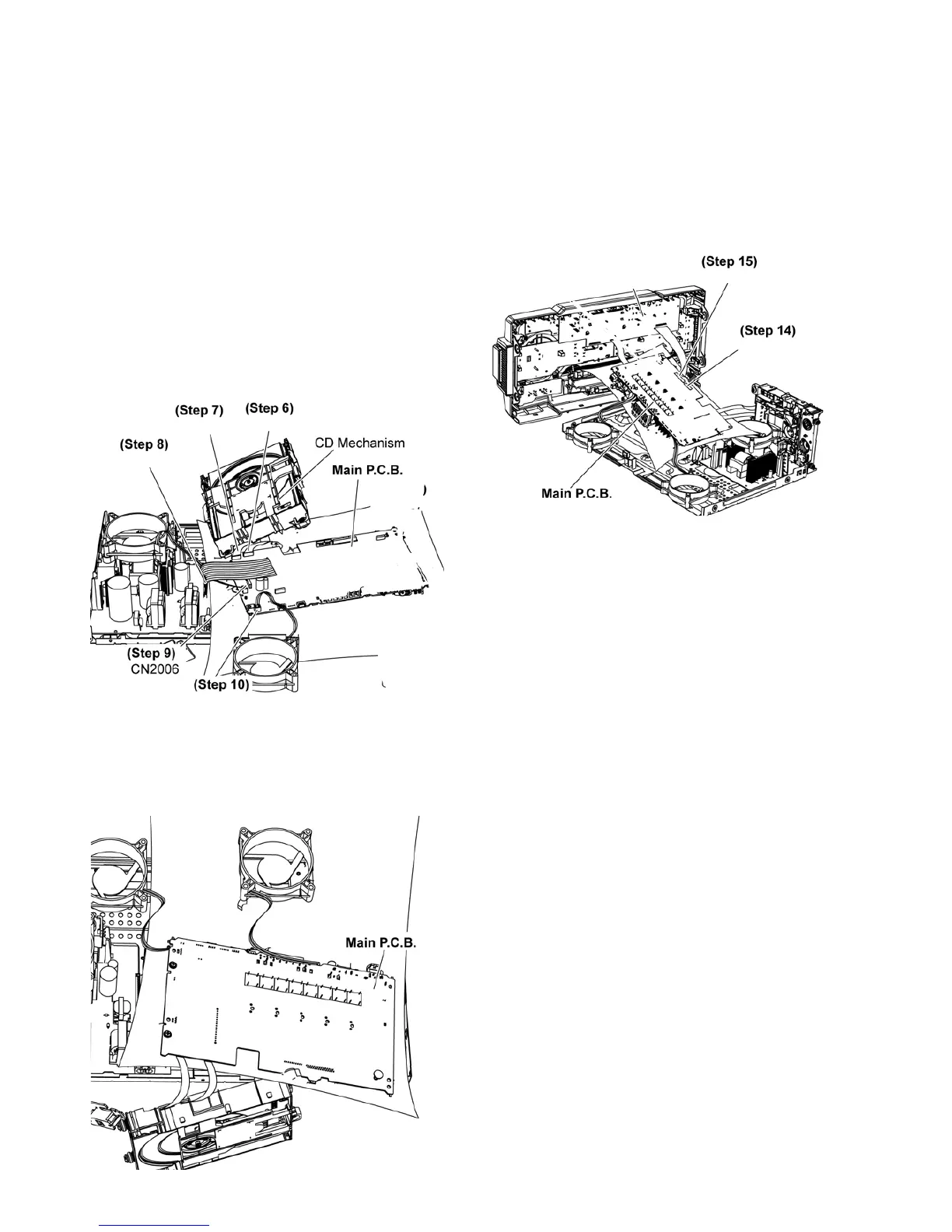

11.3. Checking and Repairing of
Main P.C.B. (Side A)
Step 1 Remove Top Cabinet.
Step 2 Remove Front Panel Unit.
Step 3 Remove Rear Panel.
Step 4 Remove CD Mechanism Unit.
Step 5 Remove Main P.C.B..
Step 6 Attach 24P FFC at the connector (FP8201) on the Main
P.C.B..
Step 7 Attach 10P FFC at the connector (FP8251) on the Main
P.C.B..
Step 8 Attach 13P Cable at the connector (CN5801) on the
SMPS P.C.B..
Step 9 Attach 2P Wire at the connector (CN2006) on the Main
P. C .B. . .
Step 10 Attach 2P Wire at the connector (CN2005) on the Main
P.C.B..
Flip the Main P.C.B..
Step 14 Attach Cable at a connector (CN2700) on the
Main P.C.B..
Step 15 Attach 30P FFC at a connector (CN2003) on the Main
P.C.B..
Step 17 Side A Main P.C.B. can be checked and repaired as
diagram shown.
FP8201
FP8251
CN5801
CN2005
CN2700
CN2003
To Next Page
