Panasonic SA-MAX500LMK - Disassembly of Volume P.C.B.

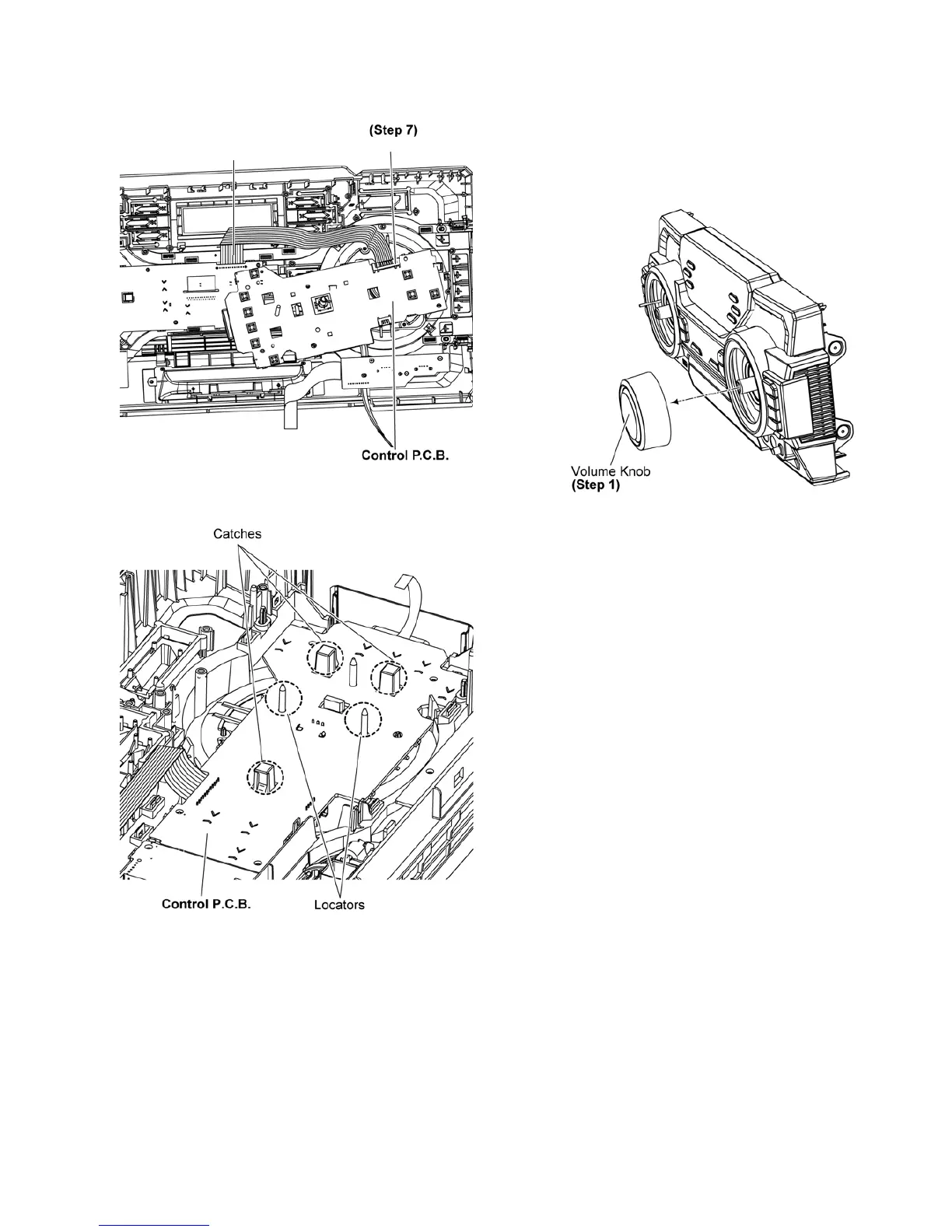

Step 7 Detach 12P Cable at a connector (CN6010) on the Con-
trol P.C.B..
Caution: During assembling, ensure that the Control P.C.B.
is properly located and fully catched onto the Front Panel
Unit.
10.10. Disassembly of Volume P.C.B.
 Refer to “Disassembly of Top Cabinet”.
 Refer to “Disassembly of Front Panel Unit”.
 Refer to “Disassembly of FL Display P.C.B.”.
 Refer to “Disassembly of Control P.C.B.”.
Step 1 Remove the Volume Knob.
CN6010
ZJ6003
