10.21. Disassembly of SMPS P.C.B.
s Refer to “Disassembly of Top Cabinet”.

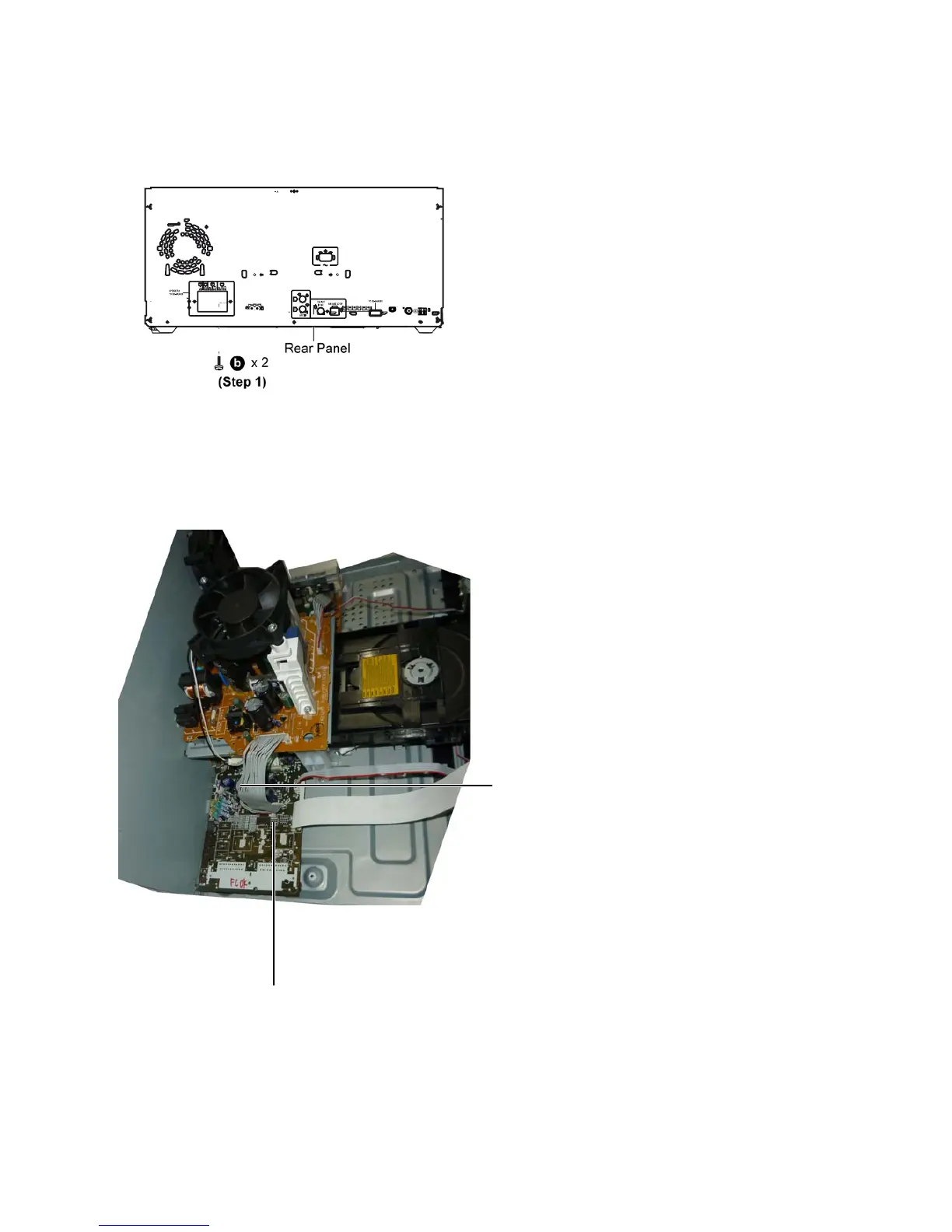

Step 1 Remove 2 screws.
Step 2 Detach 15P Cable at a connector (CN5802) on the
SMPS P.C.B..
Step 3 Detach 2P Wire at a connector (CN2006) on the Main
P.C.B..
Step 4 Remove 1 screw.
CN5802
CN2006
