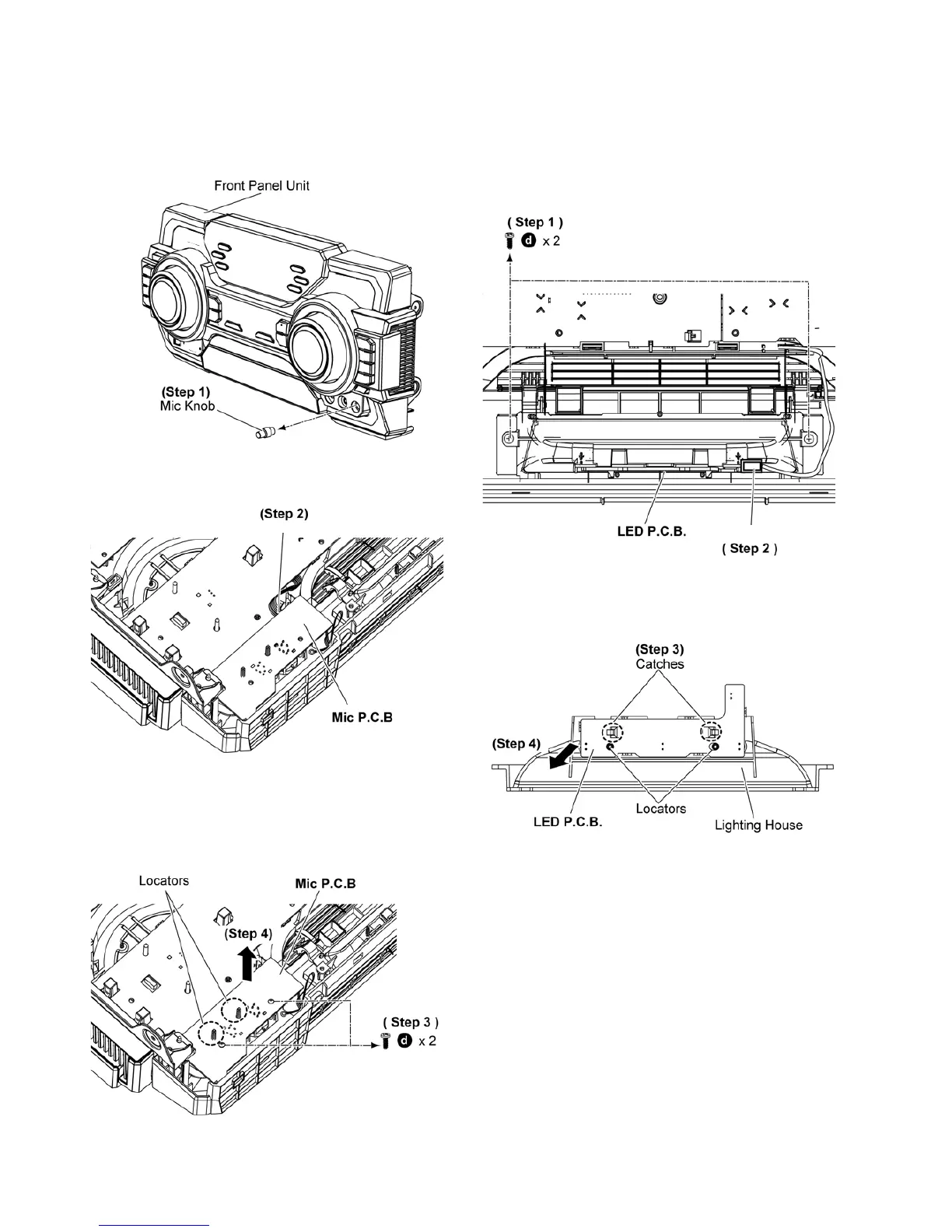

10.14. Disassembly of Mic P.C.B.
s Refer to “Disassembly of Top Cabinet”.
s Refer to “Disassembly of Front Panel Unit”.
Step 1 Remove the Mic Knob.
Step 2 Detach 8P Cable at a connector (CN6002) on the Mic
P.C.B..
Step 3 Remove 2 screws.
Step 4 Remove the Mic P.C.B..
Caution: During assembling, ensure that the Mic P.C.B. is
properly located & fully seated onto the Front Panel Unit.
10.15. Disassembly of LED P.C.B.
s Refer to “Disassembly of Top Cabinet”.
s Refer to “Disassembly of Front Panel Unit”.
Step 1 Remove 2 screws.
Step 2 Detach 2P Cable at a connector (CN6005) on LED
P.C.B..
Step 3 Release 2 catches.
Step 4 Remove LED P.C.B..
Caution: During assembling, ensure that the LED P.C.B. is
properly located and fully catched onto Lighting House.
CN6002
CN6005
