Panasonic SA-MAX500LMK - Replacement of Rectifier Diode (D5801)

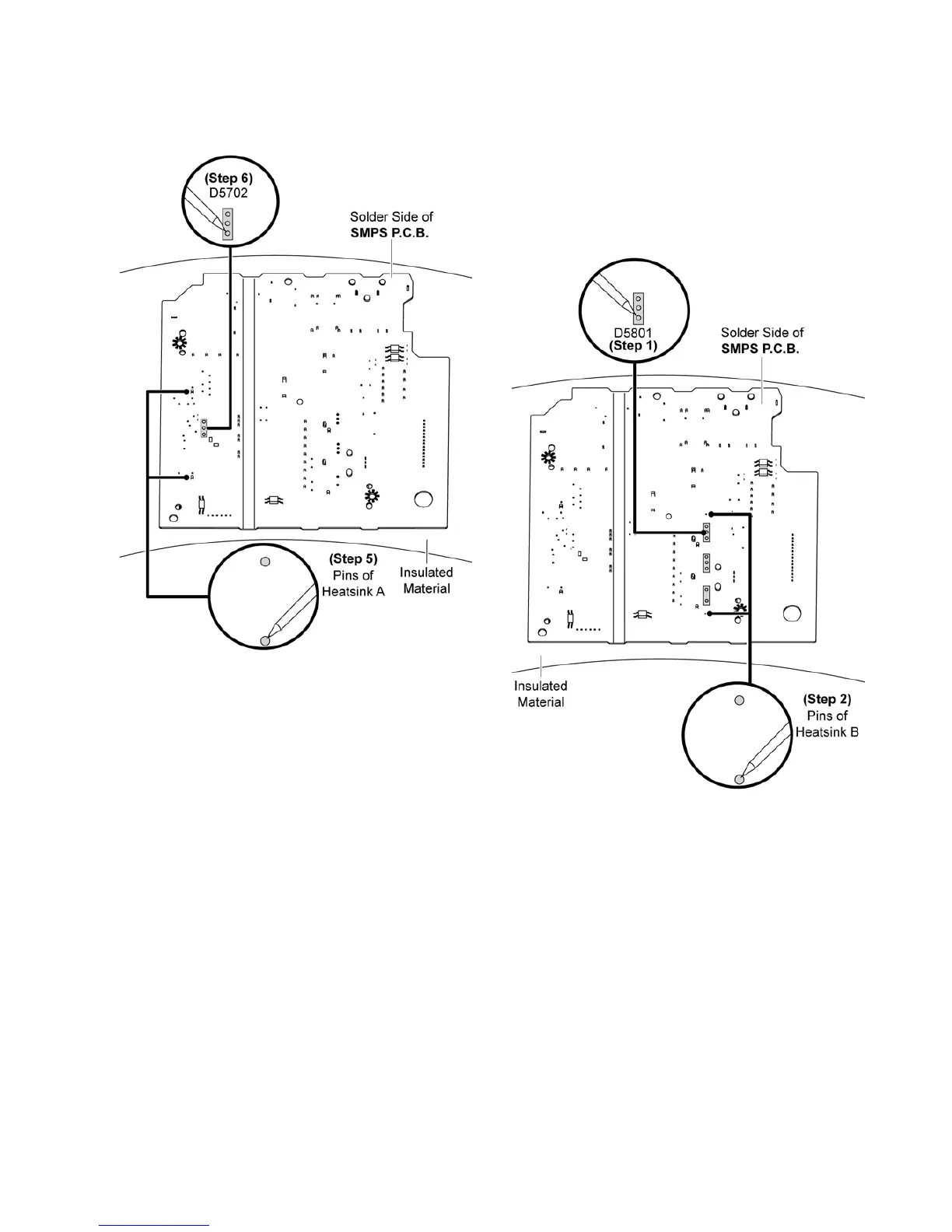

Step 4 Solder pins of the Rectifier Diode (D5702) on the solder
side of the SMPS P.C.B..
Step 5 Solder pins of the Heatsink A on the solder side of the
SMPS P.C.B..
10.24. Replacement of Rectifier Diode
(D5801)
 Refer to “Disassembly of SMPS P.C.B.”.
10.24.1. Disassembly of Rectifier Diode
(D5801)
Step 1 Desolder pins of the Rectifier Diode (D5801) on the sol-
der side of the SMPS P.C.B..
Step 2 Desolder pins of the Heatsink B.
