Replacement of Rectifier Diode
(D5802)
Refer to “Disassembly of SMPS P.C.B.”.

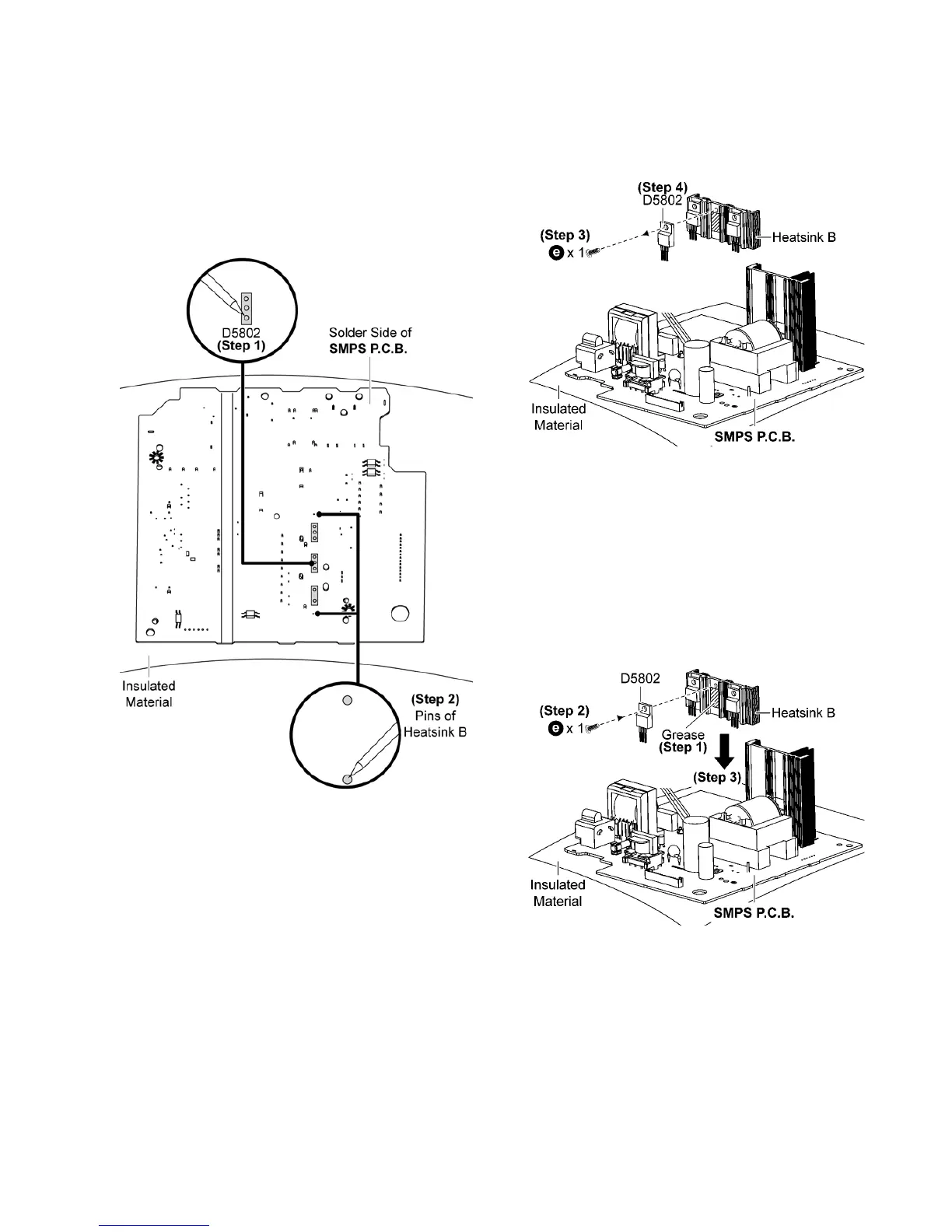

Disassembly of Rectifier Diode
(D5802)
Step 1 Desolder pins of the Rectifier Diode (D5802) on the sol-
der side of the SMPS P.C.B.
Step 2 Desolder pins of the Heatsink B.
Step 3 Remove 1 screw at Rectifier Diode (D5802).
Step 4 Remove the Rectifier Diode (D5802) from the SMPS
P.C.B..
Caution: Avoid touching the Heatsink B due to its high
temperature after prolong use. Touching it may lead to
injuries.
Assembly of Rectifier Diode
(D5802)
Step 1 Apply grease to the Heatsink B.
Step 2 Screw the Rectifier Diode (D5802) to the Heatsink B.
Caution: Ensure the Rectifier Diode
(D5802) is tightly
screwed to the Heatsink B.
Step 3 Fix the Heatsink B with Rectifier Diode (D5802) on the
SMPS P.C.B..
Caution: Ensure pins of the Rectifier Diode (D5802) are
properly inserted into the SMPS P.C.B..
