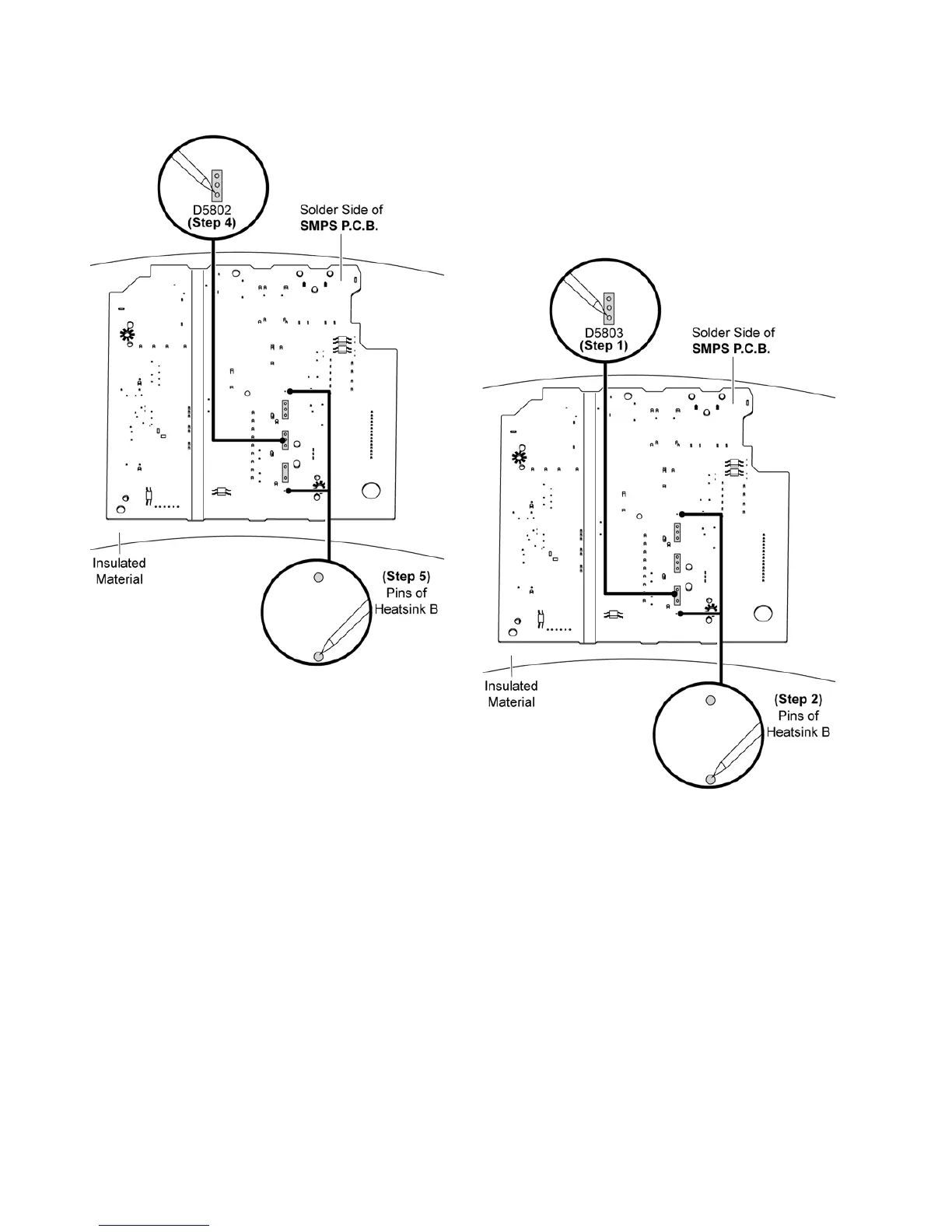

Step 4 Solder pins of the Rectifier Diode (D5802) on the solder
side of SMPS P.C.B..
Step 5 Solder pins of the Heatsink B..
Replacement of Regulator
Diode (D5803)
 Refer to “Disassembly of SMPS P.C.B.”.
Disassembly of Rectifier Diode
(D5803)
Step 1 Desolder pins of the Rectifier Diode (D5803) on the sol-
der side of SMPS P.C.B..
Step 2 Desolder pins of the Heatsink B.
