Parker Compumotor APEX615 Series User Manual

36 APEX615n Installation Guide

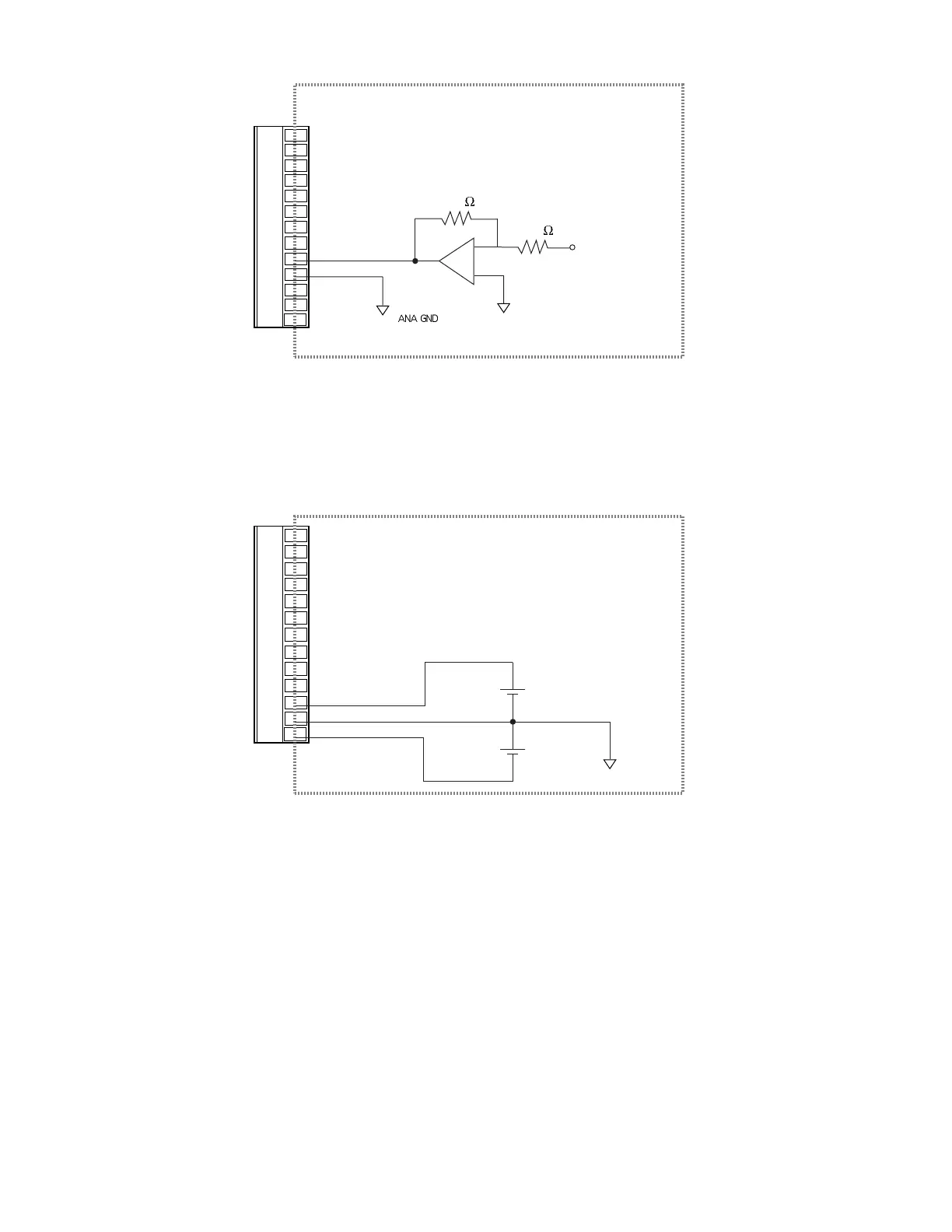

Tachometer Output
LF347
From RDC
velocity output
20K
20K
Internal Schematic
Reset
Gnd
NC
Enable In
Fault Out
Gnd
NC
NC
Tach Out
Gnd
+15 V
Gnd
-15 V
+
-
ANA GND
Tachometer Output: ±10V at 15mA (max)
• Use DIP Switch #3, position 5, to scale output:
• OFF = 1V/1000 rpm for one speed resolvers
• ON = 1V/1000 rpm for two speed resolvers.
±15V Output
Internal Schematic
Reset
Gnd
NC
Enable In
Fault Out
Gnd
NC
NC
Tach Out
Gnd
+15 V
Gnd
-15 V
+15V
–15V
ANA GND
+15V Output: +15V ±5% at 15 mA
–15V Output: –15V ±5% at 15 mA
