Data Display
HandiLaz Mini Operator’s Manual
Page
2-3

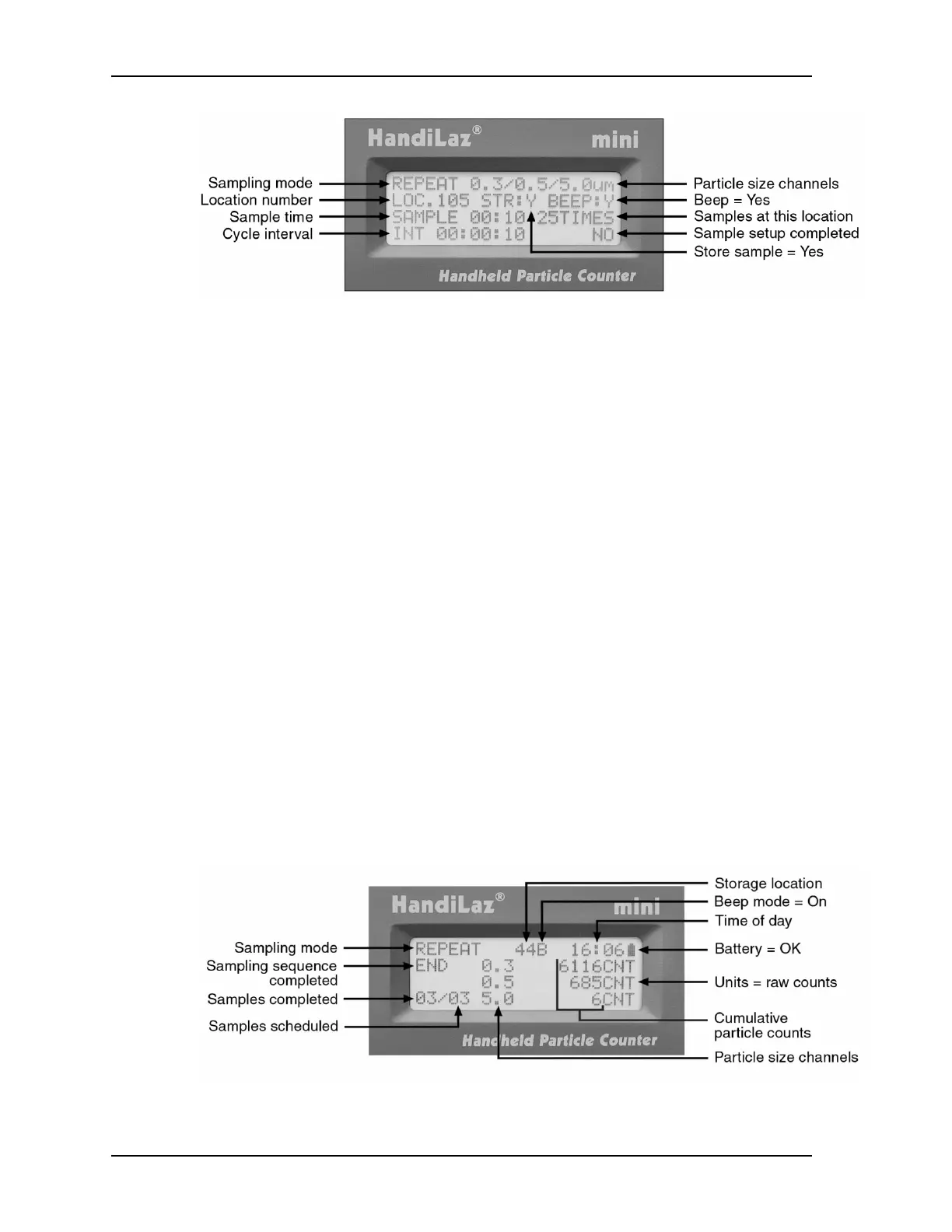

Figure 2-1: Sampling Setup Screen: REPEAT Mode
Data Display
At the end of sampling the results are displayed on the LED screen (see Figure
2-2). The displayed information is as follows:
Sampling Mode
Mode used to collect data
Storage Location
Last Saved Sample is stored in this location
Beep Mode Status
B shows Beep Mode = YES;
“blank” shows Beep Mode = NO
Battery Icon
Icon outline with blank interior = Battery is very low.
Icon blacked-in = Battery has adequate charge.
END
Sampling sequence has been completed
0.3, 0.5 & 5.0
Channel size labels: Cumulative counts of that size or larger
CNT
Units set to show as raw Counts (alternatively, choose #/Ft
3
or #/M
3
)
# Samples Completed / # Samples Scheduled
Example: “02/03” means
the program completed 2 samples
at this location, compared to the 3 samples scheduled.
:
Figure 2-2: Data Display Screen: REPEAT Mode
