Particle Measuring Systems HandiLaz Mini - Select the Sampling Mode of the Data to be Uploaded

Using the Retrieval Software
HandiLaz Data Retrieval Software, Installing and Running Page E-8
Select the Sampling Mode of the Data to be Uploaded
1 At the top of the Data Retrieval Software, click on the appropriate tab for the
mode (Repeat, Single, etc.) to be displayed.
2 Type the HandiLaz address (00–31) in the Address: field.
3 Set the Port: field to COM1–COM8. This is the COM port on the PC that the
communications cable is connected to.
4 Click the Read Data List button. All the data stored for the selected mode will
appear in the Date List Table and the Data Table. See Figure 2-4.

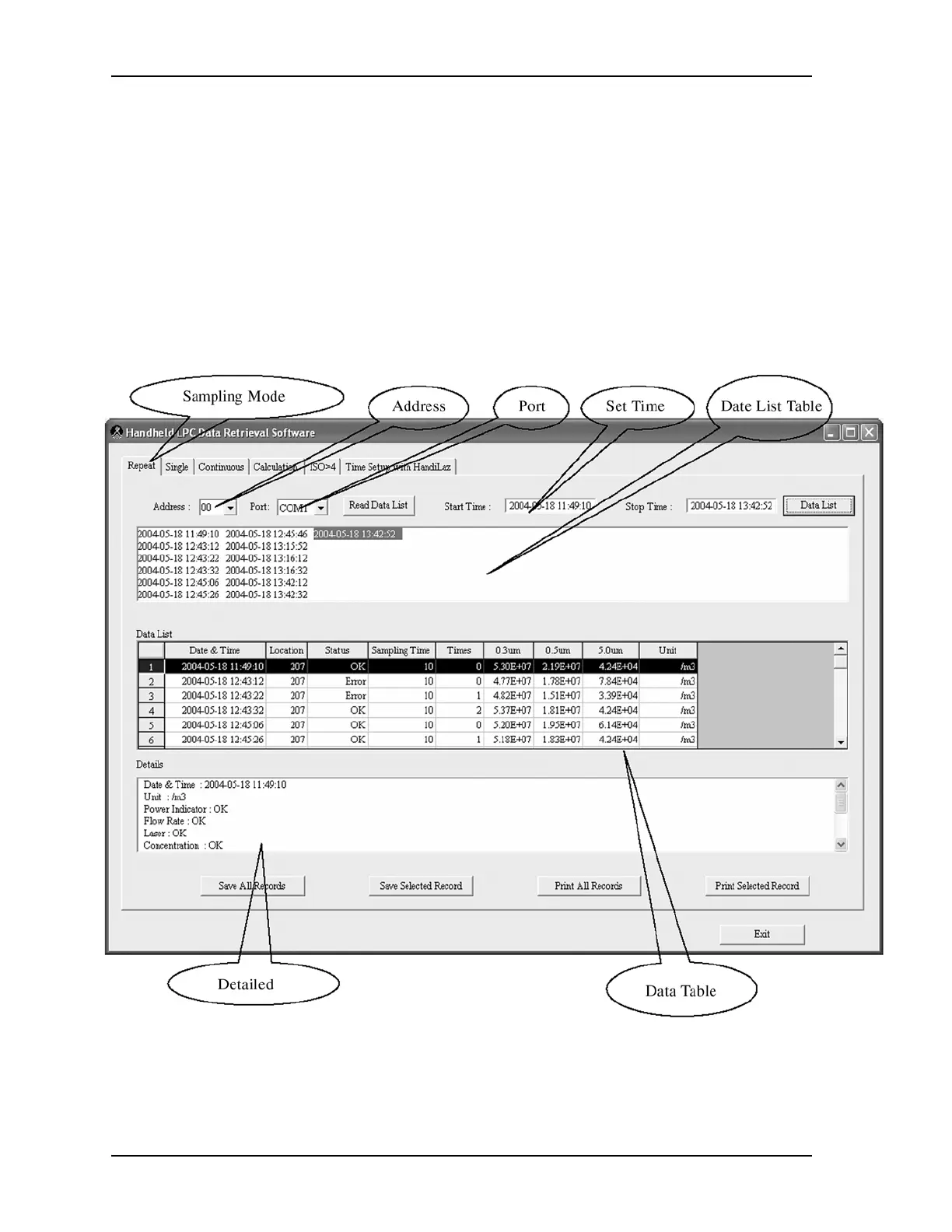

Figure E-9: Data Display from the Repeat Mode
